Toe-In

Standard value: (0 ± 3 mm (0 ± .12 inch) -3 to +3 mm (-.12 to +.12 inch)

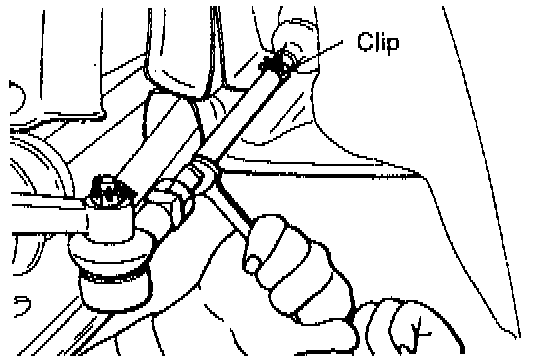

1. Adjust the toe-in by undoing the clips and turning the left and right tie rod turnbuckles by the same amount (in opposite directions).
2. After making the adjustments, use a turning radius gauge to confirm that the steering wheel turning angle is within the standard value range.
Standard value:
Inner wheel: 33° 45'
Outer wheel: 28° 21'

NOTE: Wheel bearing adjustment: Bearing preload is pre-set to the specified value by design and therefore can not be adjusted.
