Toe-In

Standard value: (0.5 ± 2.5 mm (.01 ± .09 inch) -2.0 to +3.0 mm (-.08 to +.10 inch)

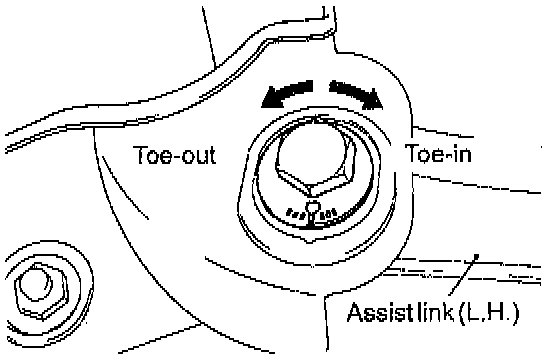

To adjust toe, turn the assist link mounting bolts (on crossmember side) on both sides the same amount.

NOTE:
1. The difference between right and left wheels should be 3 mm (.12 inch) or less.
2. Left wheel: Clockwise (toe-in) Right wheel: Clockwise (toe-out) One graduation changes toe by about 4.8 mm (.19 inch) [equivalent to toe angle 27' on one side].





CAUTION:

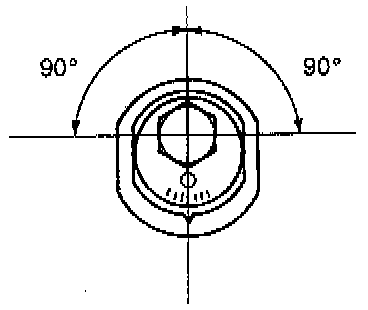

1. Adjust the eccentric bolt within 90° from the central position.
2. Adjust camber and toe, in that order, and, if camber is adjusted, be sure to adjust toe also.
