Ignition Switch: Service and Repair

Ignition Switch - Removal And Installation:






WARNING: Before removal of air bag module, refer to Air Bag System Precautions.

REMOVAL

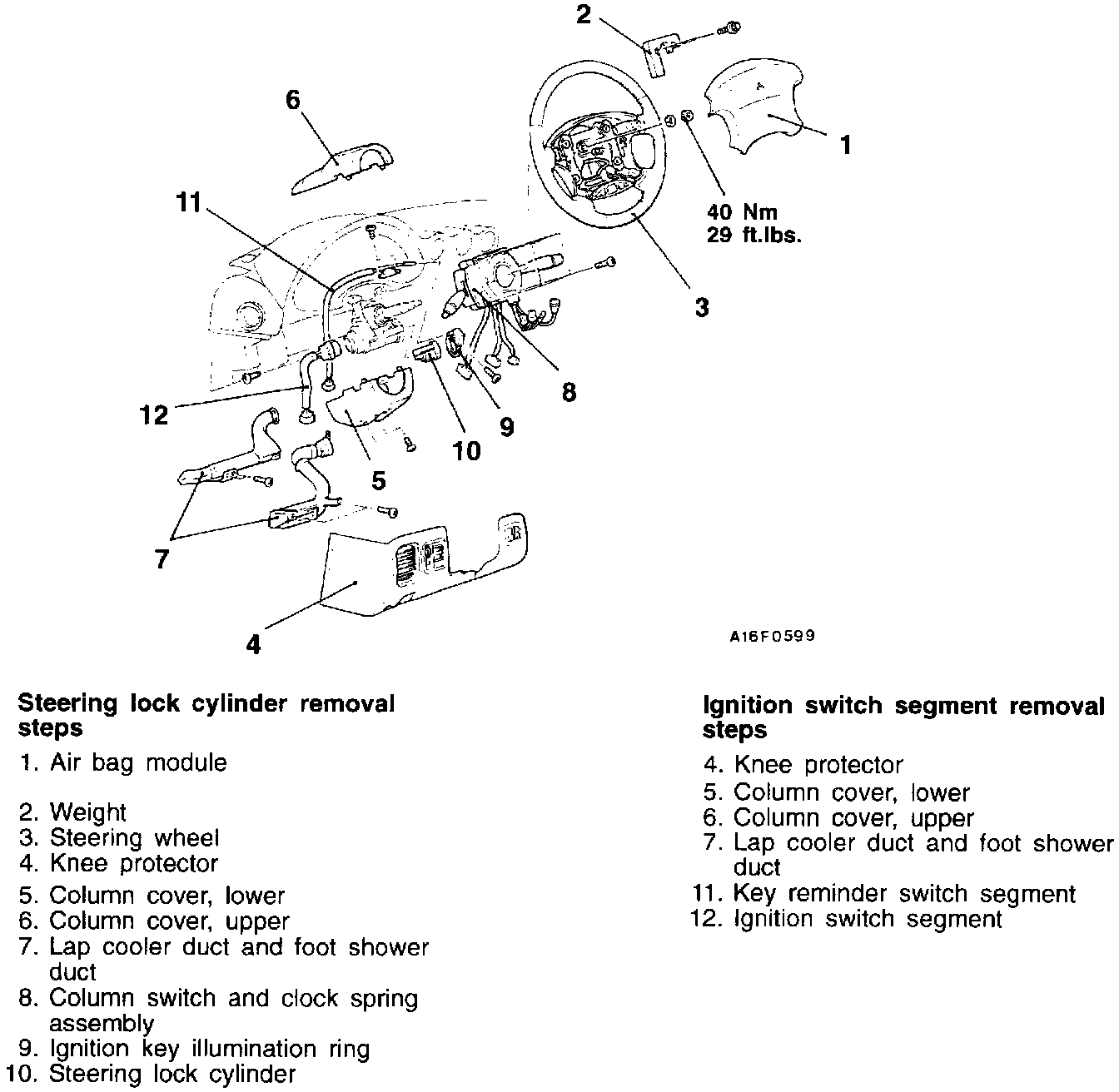

To remove follow steps 4, 5, 6, 7, 11 & 12 listed in the image -- noting the following:

Fig. 11 Removing Upper & Lower Column Covers:






Steps 5 & 6: Column Cover Lower 1 Column Cover Upper Removal
After the screws have been removed, remove the covers, while making sure not to break the grippers.


INSTALLATION
To install reverse the steps listed.
