Control Module: Description and Operation
ETACS Power-supply And Ground Circuits:

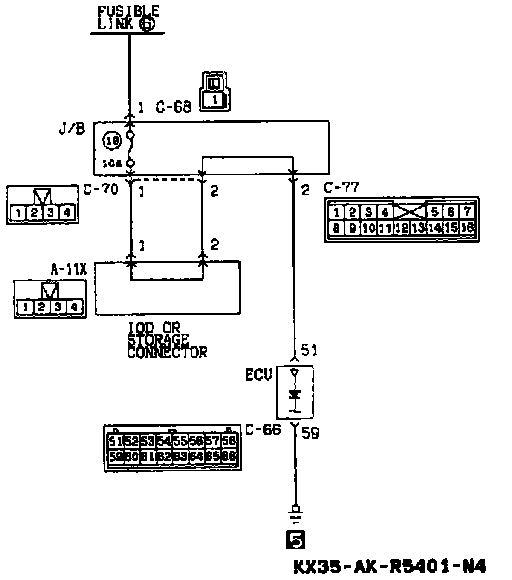

ETACS Power-supply And Ground Circuits Chart:
The battery supplies a stabilized
5 V power supply to the ECU, via the constant-voltage circuit and terminal 51 (which is directly connected to the battery).

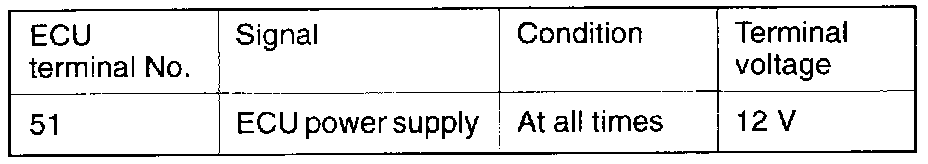

ECU terminal voltage (Connection condition of the ECU connector).
