Fastener Tightening Specifications






TIGHTENING SPECIFICATIONS
1. The engine must be cold.

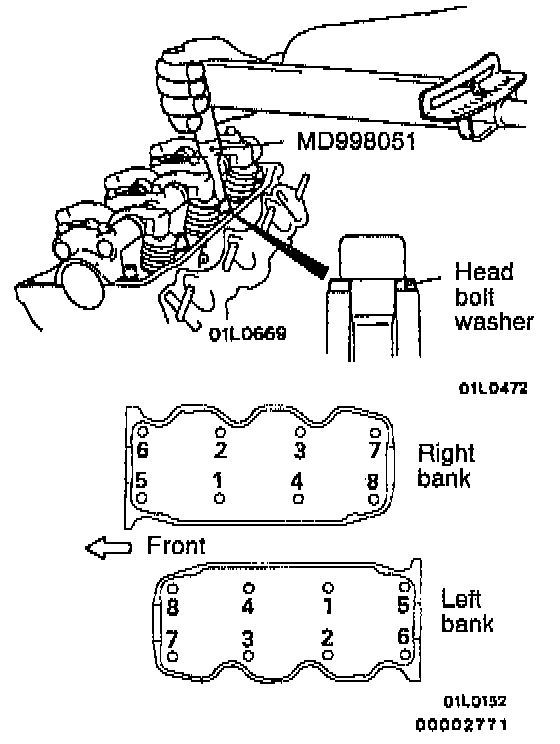

2. Tighten in 2 - 3 steps using the order shown.
3. Tighten to 103 - 113 Nm (76 - 83 ft. lbs.)
