M/T Technical Data

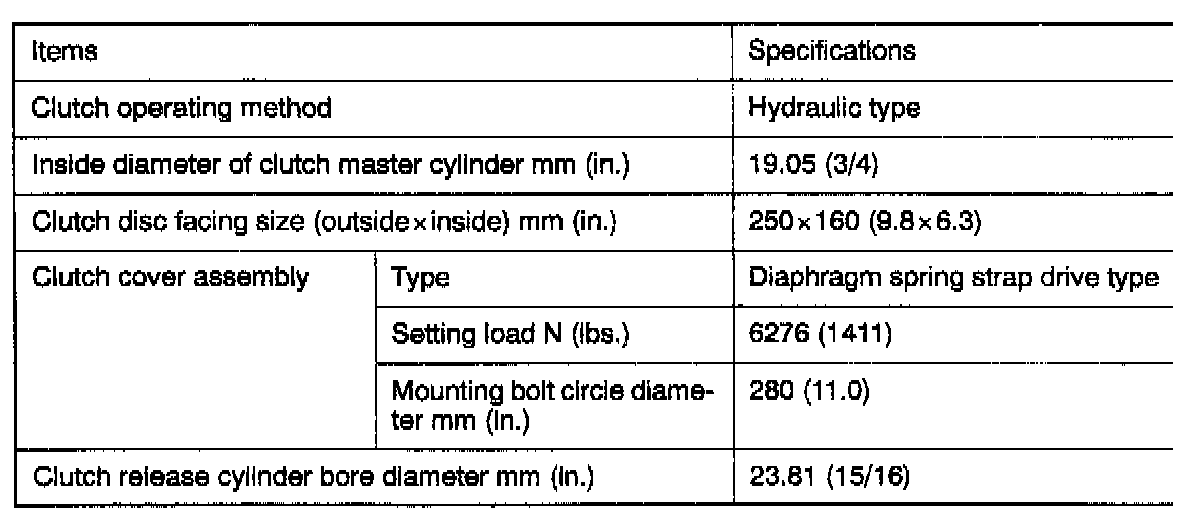

V5M31 5-spd M/T, Clutch Dimensions:

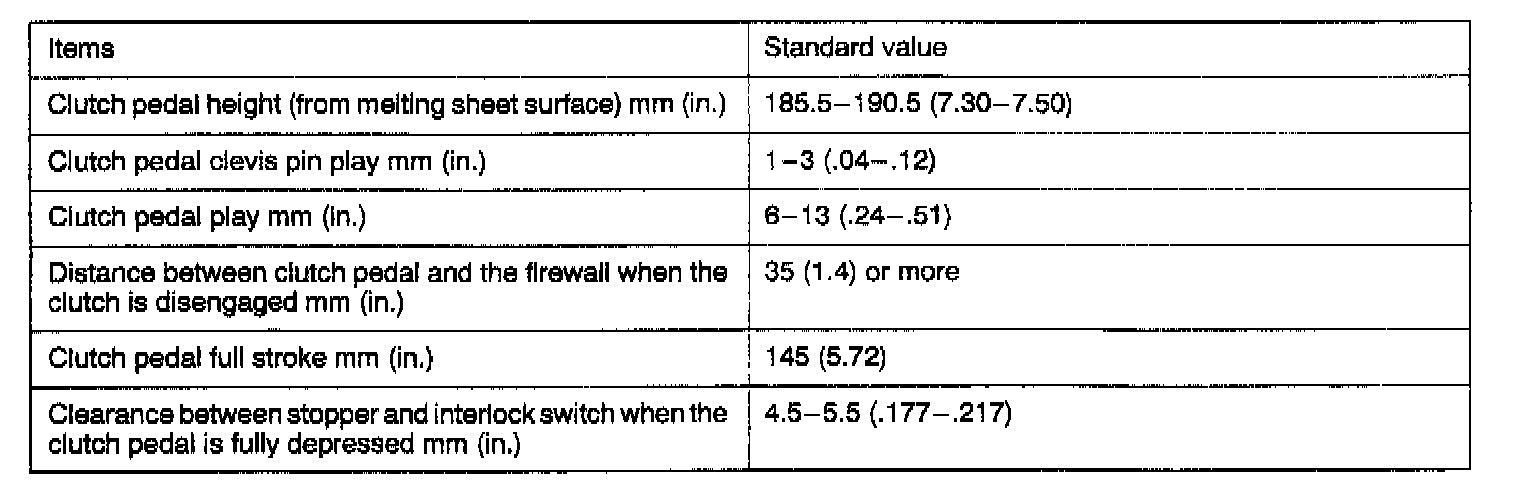

V5M31 5-spd M/T, Clutch Standard Values:

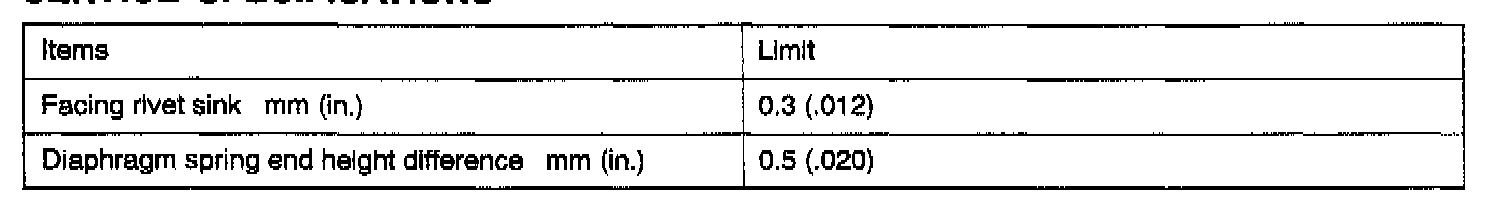

V5M31 5-spd M/T, Clutch Limits:

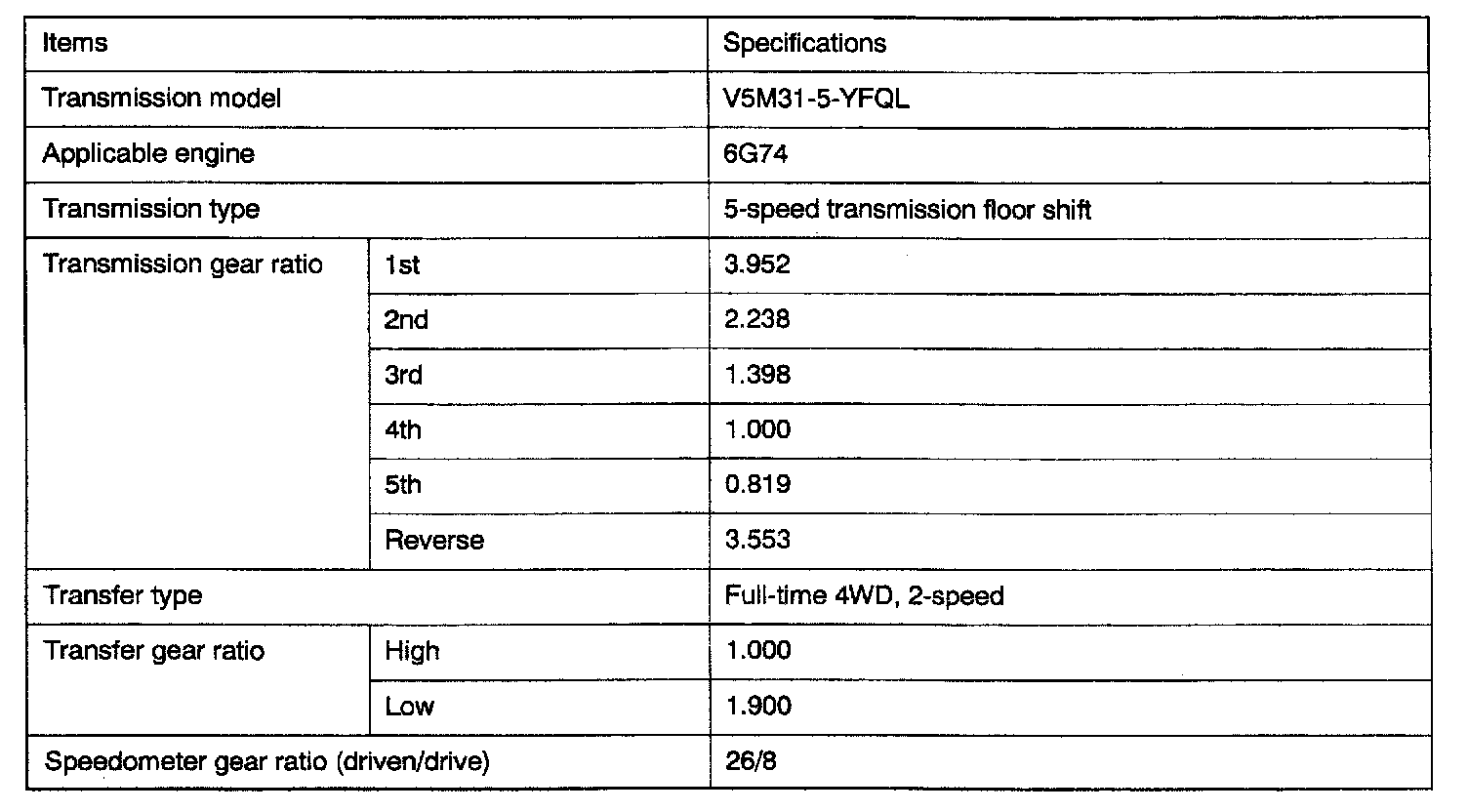

V5M31 5-spd M/T, Gear Ratios:

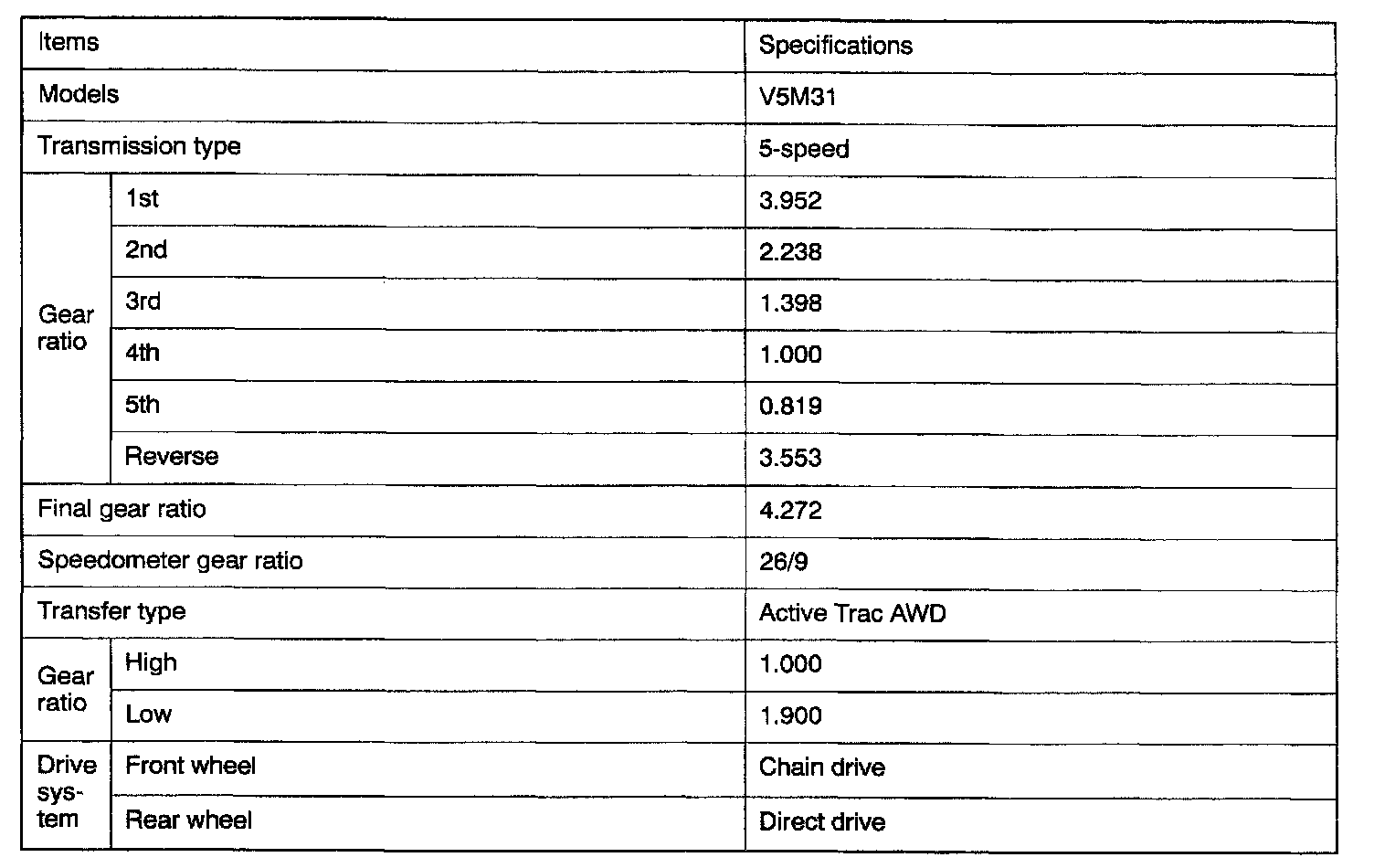

V5M31 5-spd M/T, Gear Ratios:





V5M31 5-spd M/T, Transmission Standard Values & Limit:

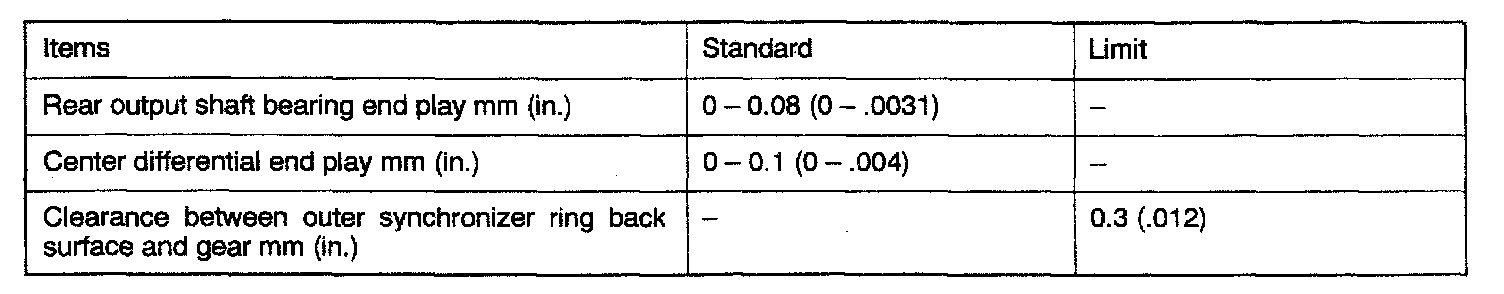

V5M31 5-spd M/T, Transfer Standard Values & Limit:

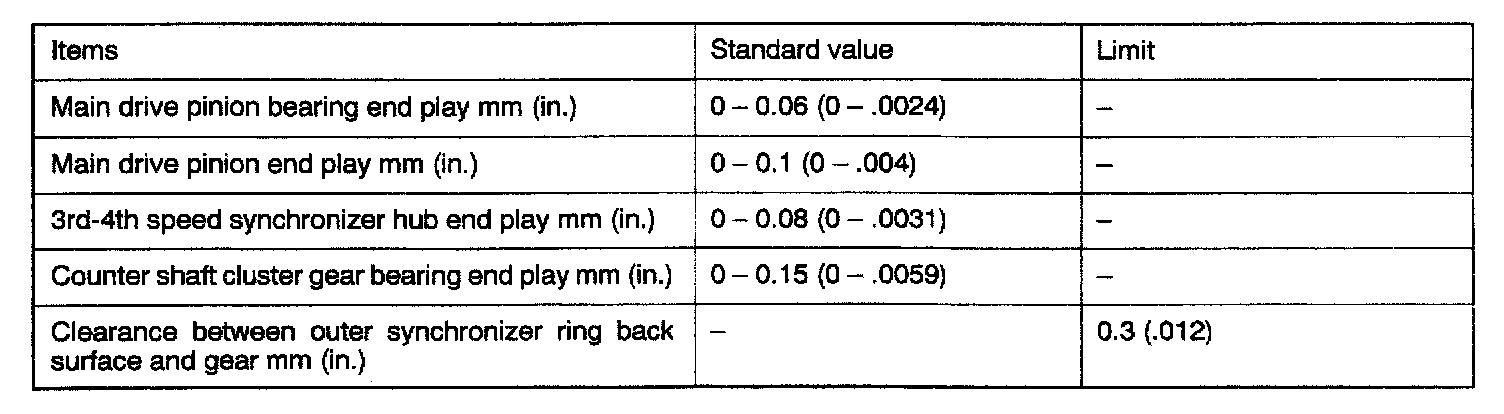

V5M31 5-spd M/T, Transmission Standard Values & Limits:

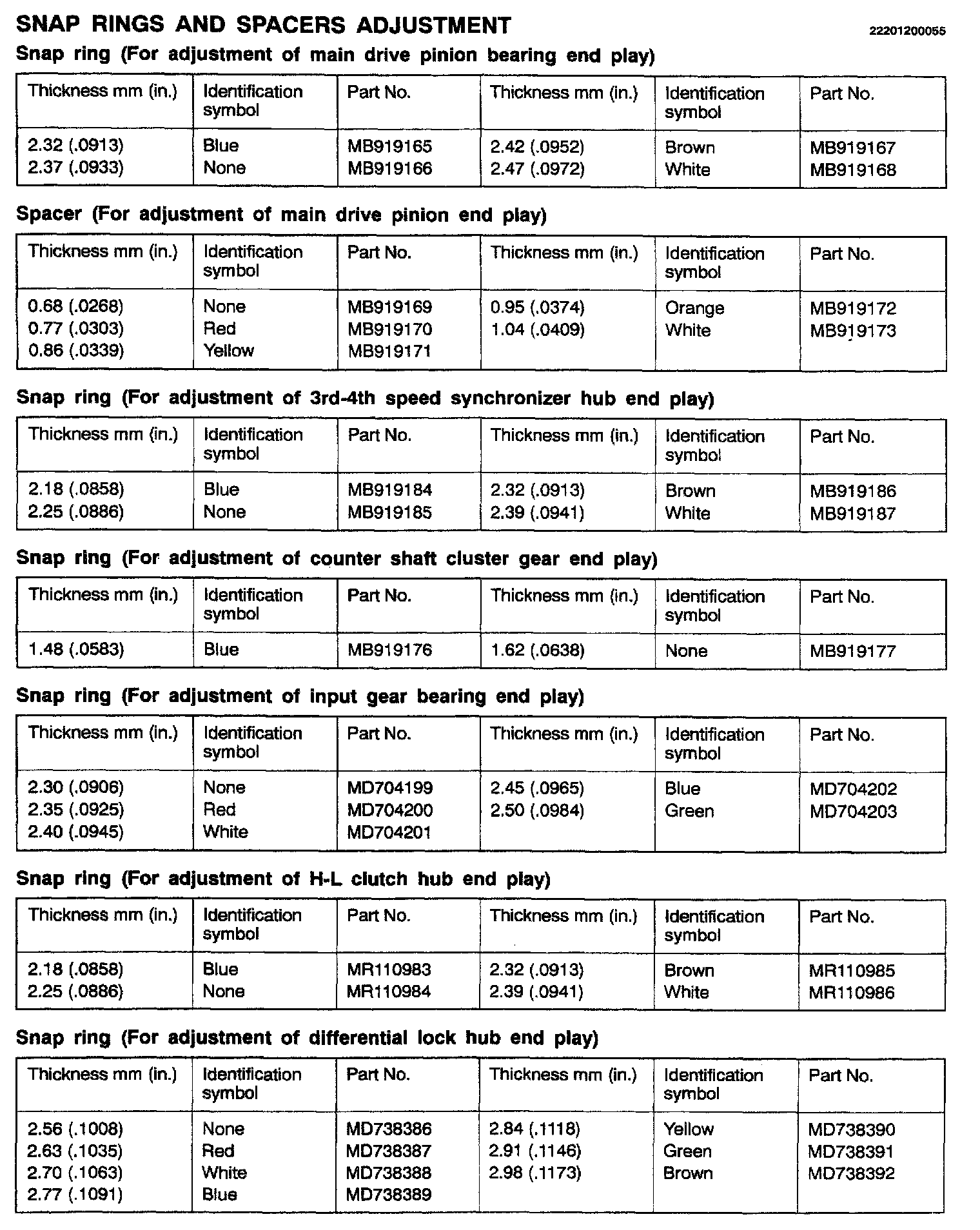

V5M31 5-spd M/T, Main Drive, Counter Shaft, Input Gear End Play:

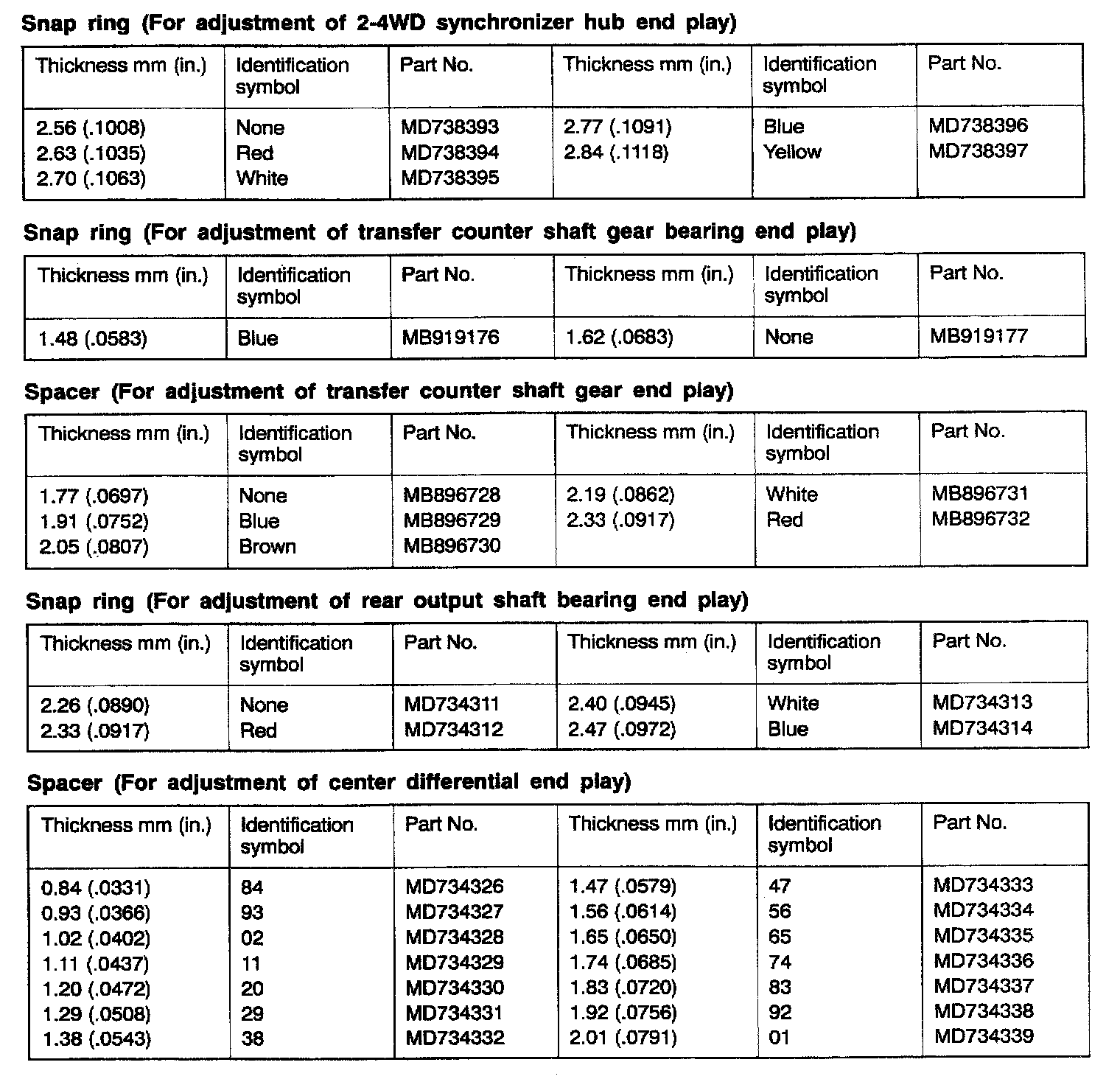

V5M31 5-spd M/T, Synchronizer, Counter Shaft & Differential End Play:
