Electronic Brake Control Module: Service and Repair






REMOVAL
Pre-removal Operation:
- Rear Seat Cushion Removal.
- Rear Seatback (RH) Removal.
- Quarter Trim Removal.

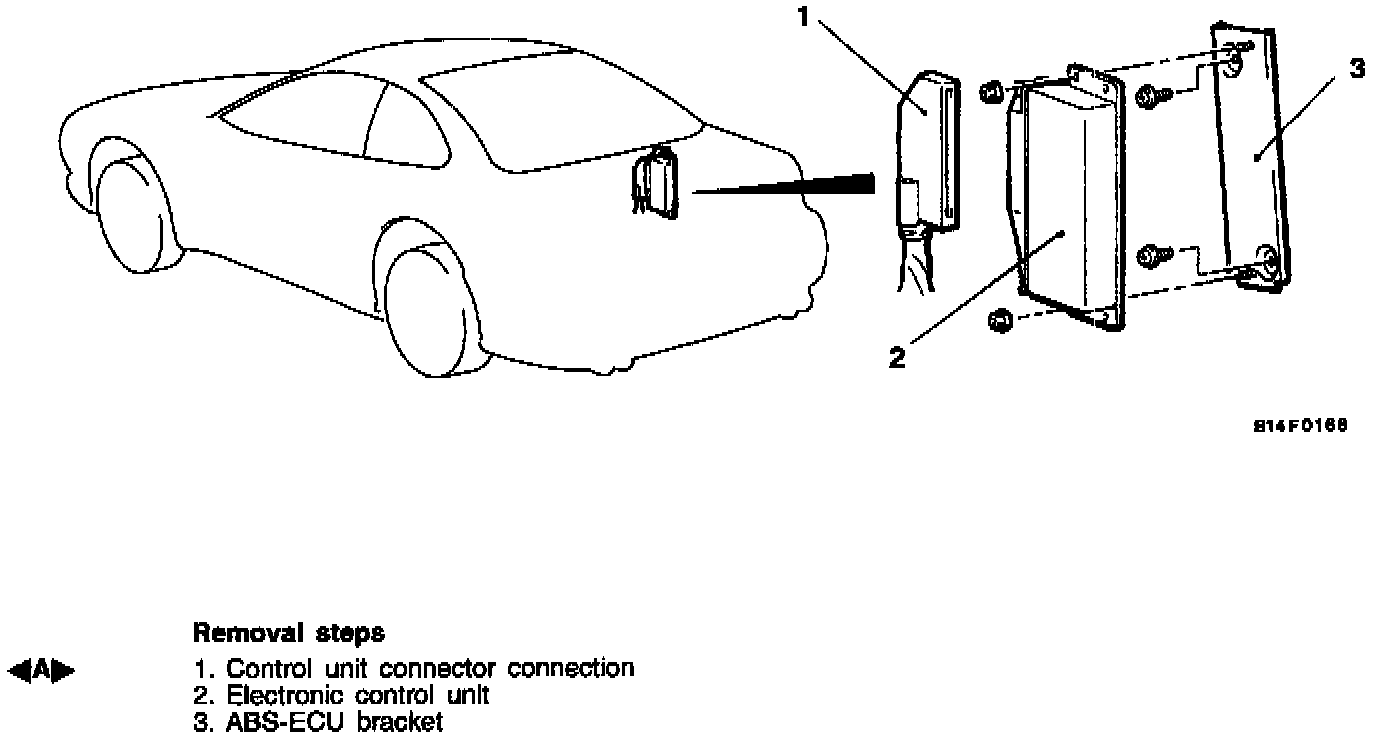

Follow removal steps outlined in illustration.

Removal Service Point

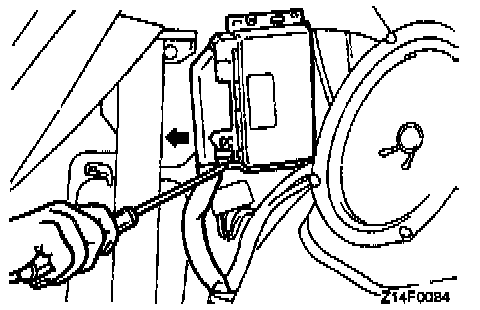

Control Unit Connector Removal.
Insert a screwdriver into the lock section as illustrated and pull out the connector from below.

INSTALLATION
Installation in reverse order as removal.

Post-installation Operation:
- Quarter Trim Installation.
- Rear Seatback (RH) Installation.
- Rear Seat Cushion Installation.
- ABS Inspection.
