Accelerator Pedal Position Sensor: Testing and Inspection






[2] Inspection of accelerator pedal position sensor assembly

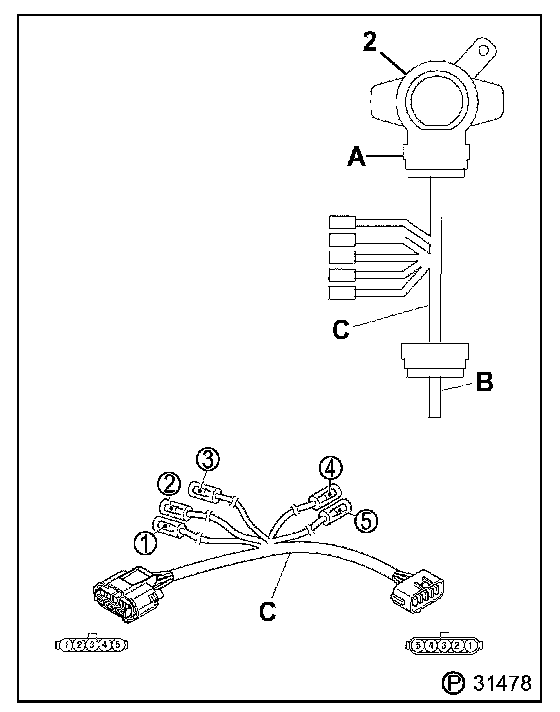

- Disconnect connector A of accelerator pedal position sensor 2 from harness B on the cab side. Prepare inspection harness C, and connect it between the above two connectors. Note: This harness is not necessary with MUT-II PLUS tester.
- Set the starter switch to the ON position.

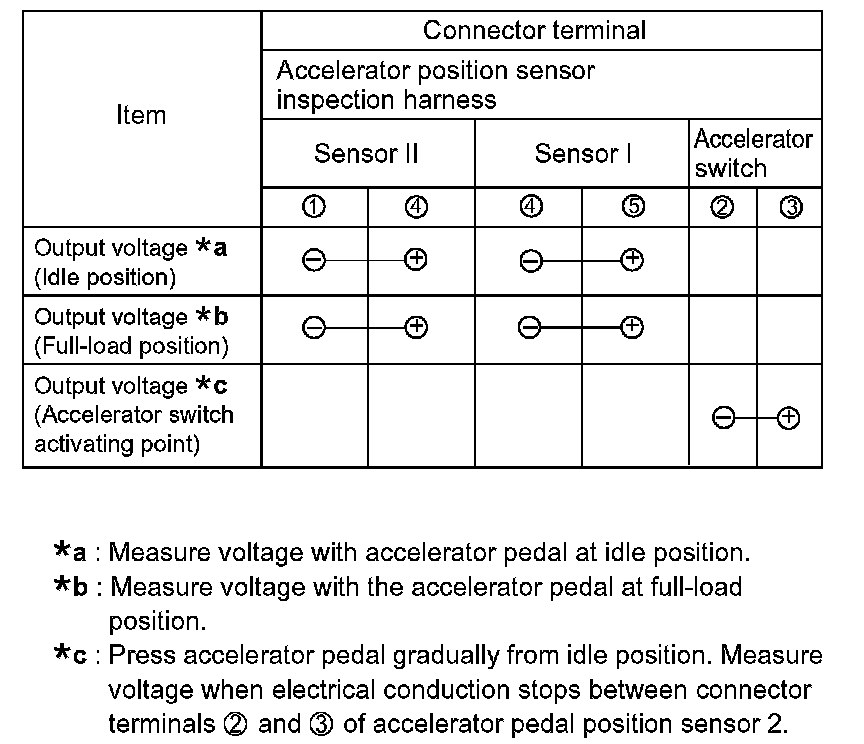

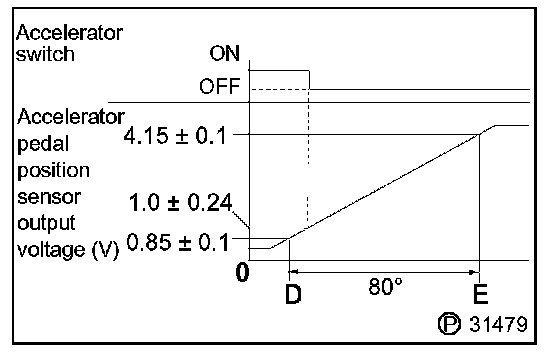

- Measure the output voltages of accelerator pedal position sensor 4 and the accelerator switch according to the table below. Adjust, if necessary.

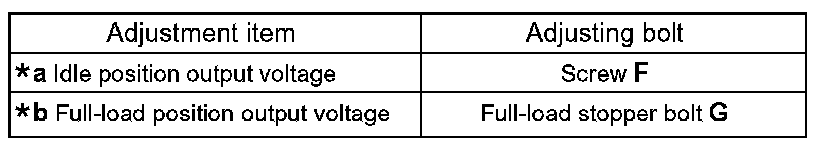

- If measured value *a and *b deviate from the standard values, adjust the following adjusting bolts.







- If the measured output voltage at accelerator switch activating point *c deviates from the standard value, replace accelerator pedal position sensor 2.
