Control Unit

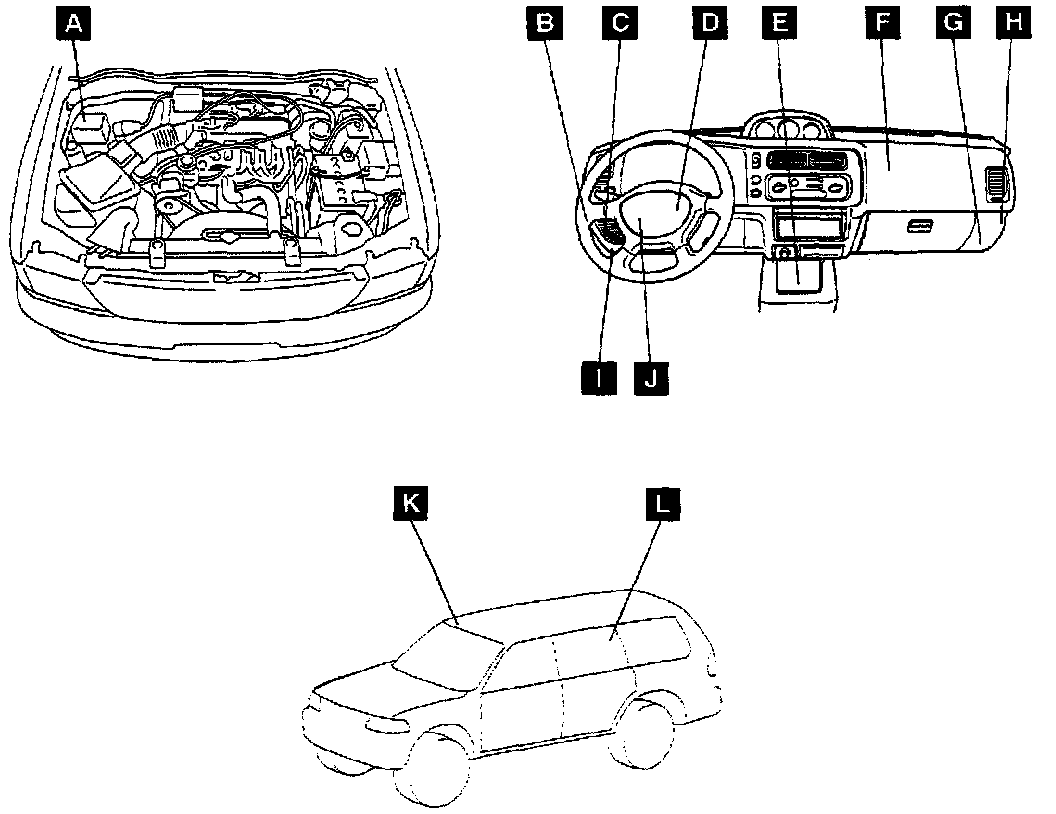

Control Unit Location - Overall View:

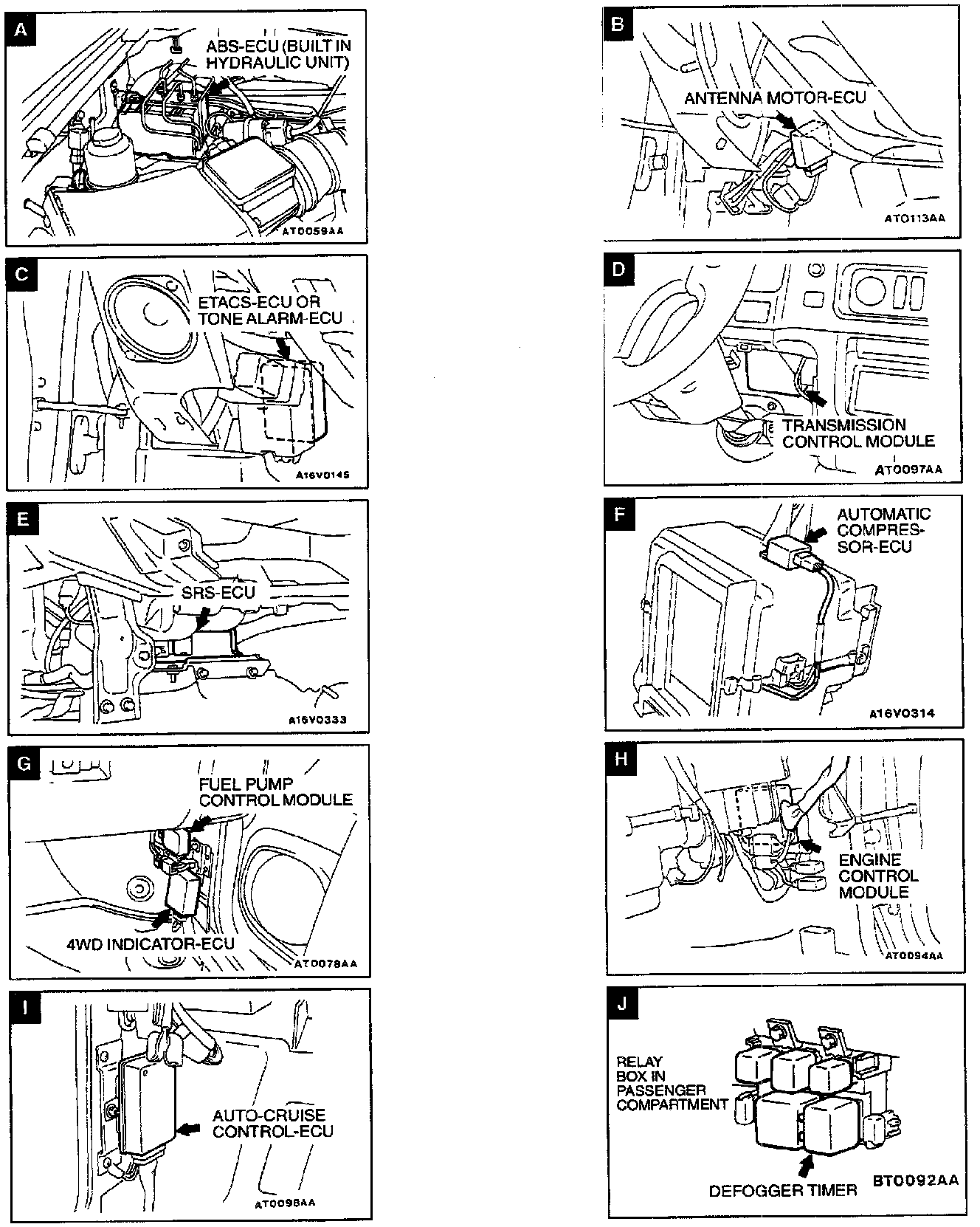

Control Unit Locations Views A - J:

Control Unit Locations Views K - L:

NAME SYMBOL
4WD Indicator-ECU G
ABS-ECU A
Antenna Motor-ECU B
Auto-Cruise Control-ECU I
Automatic Compressor-ECU F
Defogger Timer J
Engine Control Module H
ETACS-ECU C
Fuel Pump Control Module G
Rear Differential Lock-ECU L
SRS-ECU E
Sunroof-ECU K
Tone Alarm-ECU C
Transmission Control Module D
