A/T - DTC Set Conditions Revised

No: TSB-98-23-008
DATE: June, 1998
MODEL: 1997-98 Montero Sport

SUBJECT:
CORRECTED A/T DIAGNOSIS PROCEDURES (SET CONDITIONS, DTC 31 & 32) - SERVICE MANUAL REVISION

[TSB Revision TSB-98-23-008]

PURPOSE

This bulletin has corrected judgement conditions for DTC 31 (Input Shaft Speed Sensor) and DTC 32 (Output Shaft Speed Sensor).

Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual page.

AFFECTED VEHICLES

1997-98 Montero Sport

AFFECTED SERVICE MANUALS

1997 Montero Sport Service Manual, Volume 1, Pages 23A-34, 23A-38
1998 Montero Sport Service Manual, Volume 2, Pages 23A-39, 23A-43

SERVICE MANUAL REVISIONS

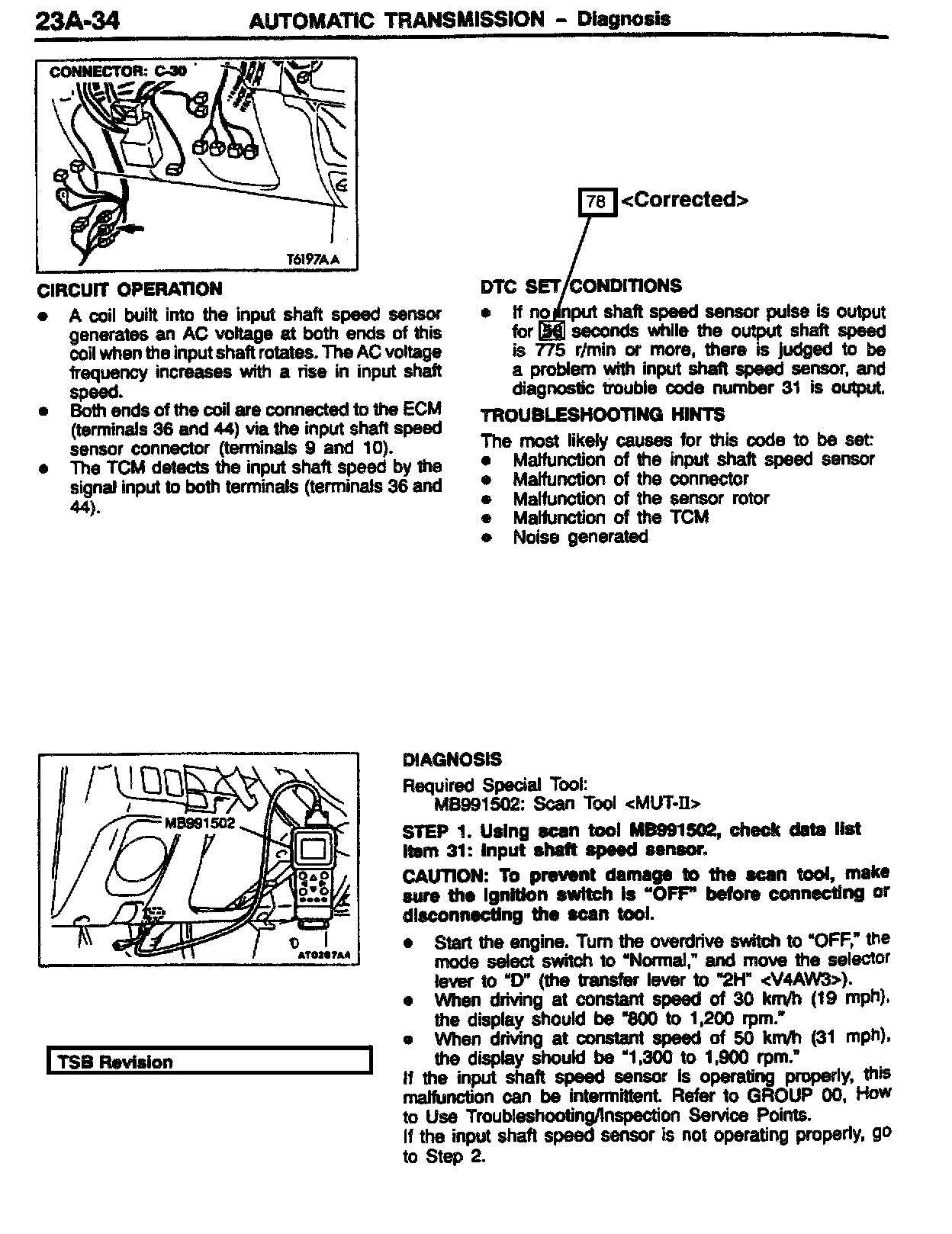

1997 Montero Sport Service Manual, Volume 1, Pages 23A-34
Correct the DTC set conditions as shown:

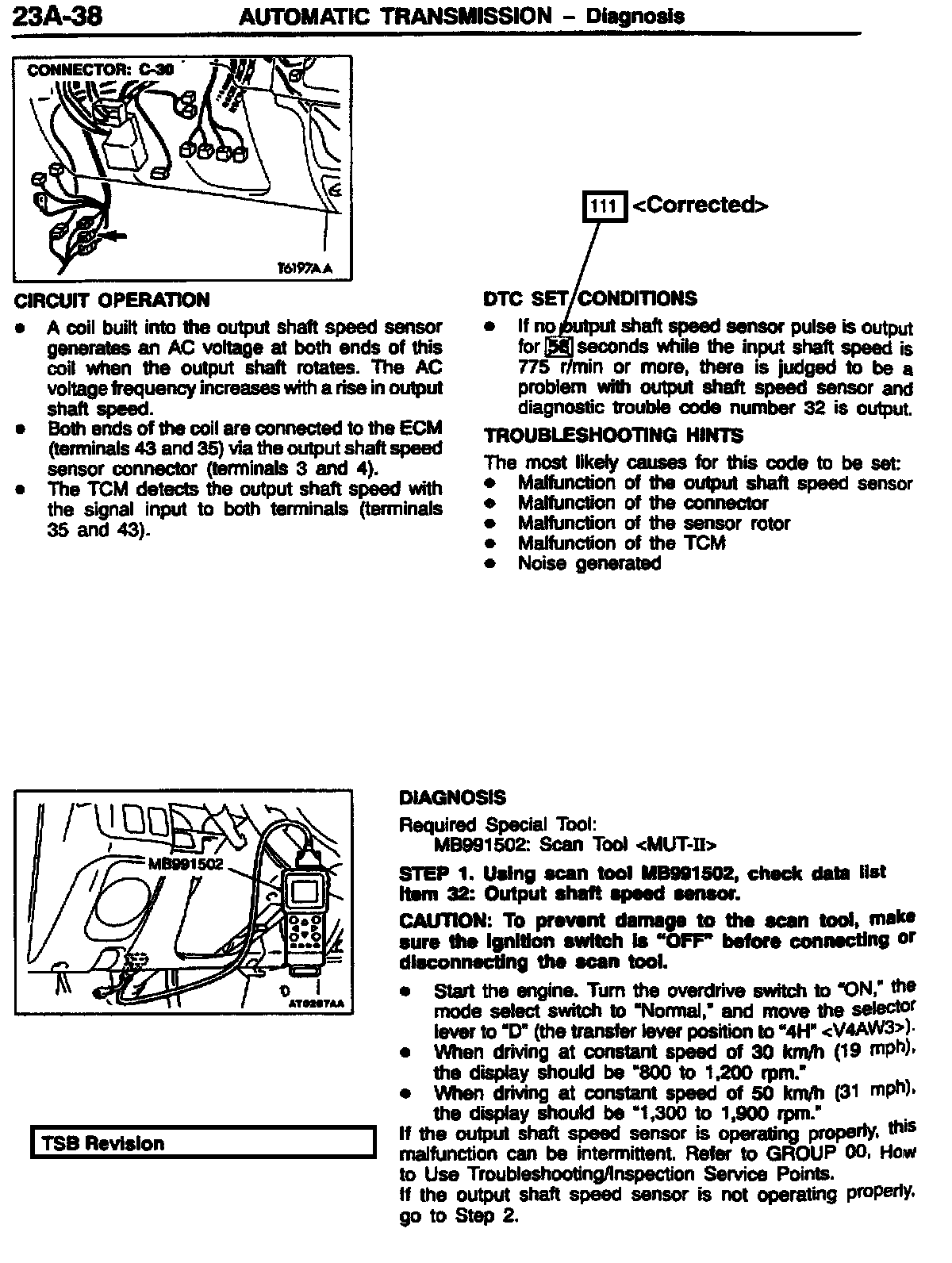

1997 Montero Sport Service Manual, Volume 1, Pages 23A-38
Correct the DTC set conditions as shown:

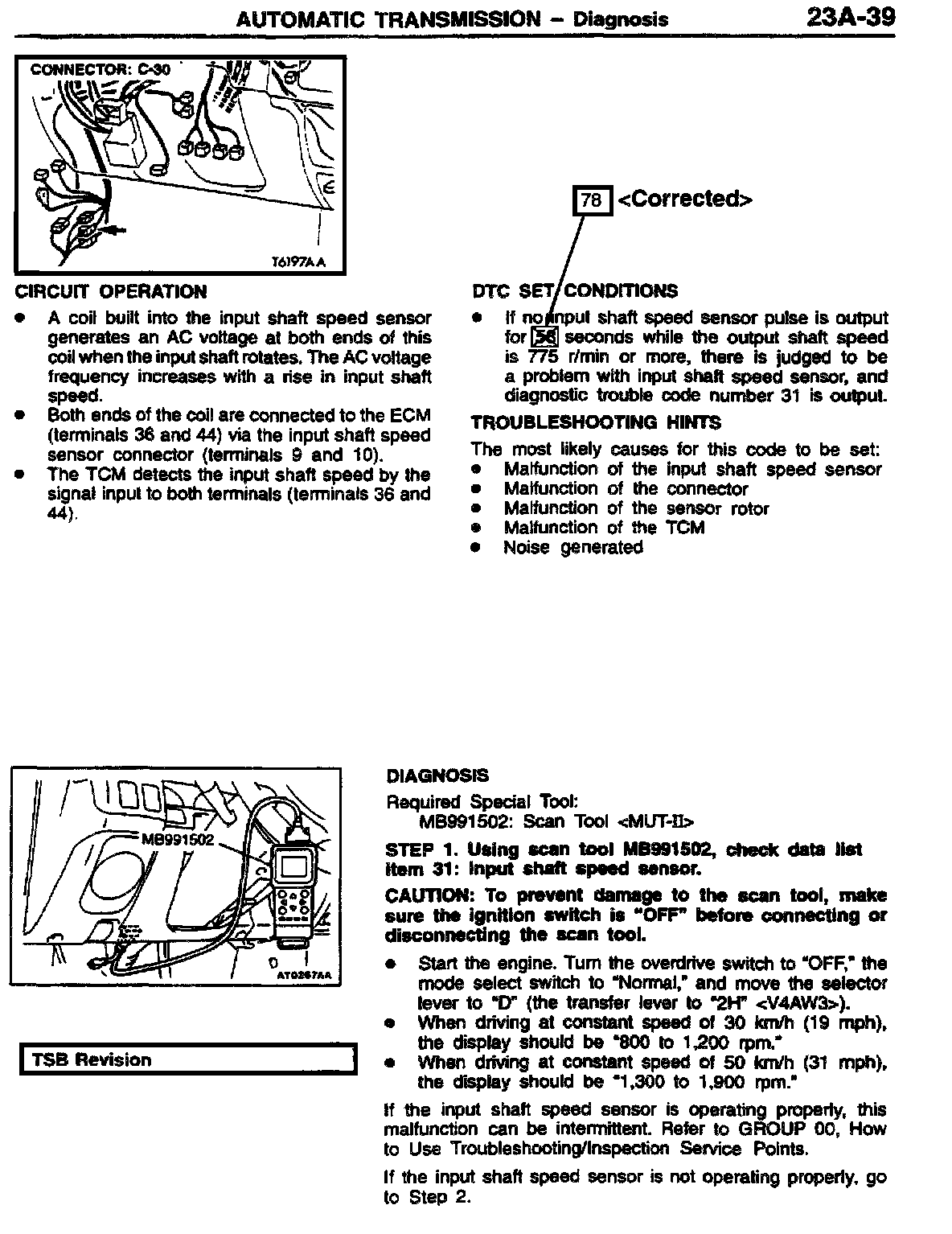

1998 Montero Sport Service Manual, Volume 2, Pages 23A-39 Correct the DTC set conditions as shown:

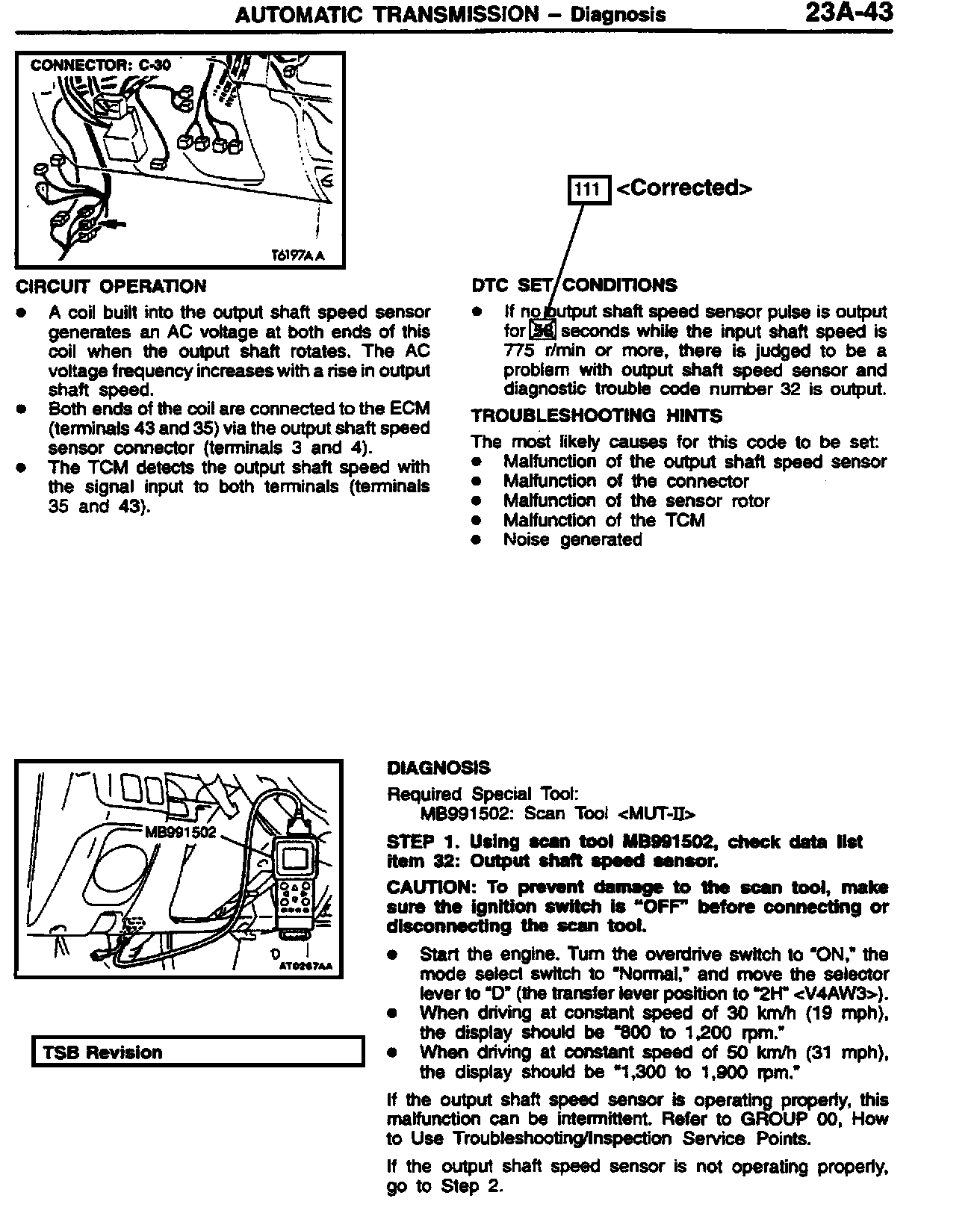

1998 Montero Sport Service Manual, Volume 2,, Pages 23A-43 Correct the DTC set conditions as shown:
