Test Procedure
1.

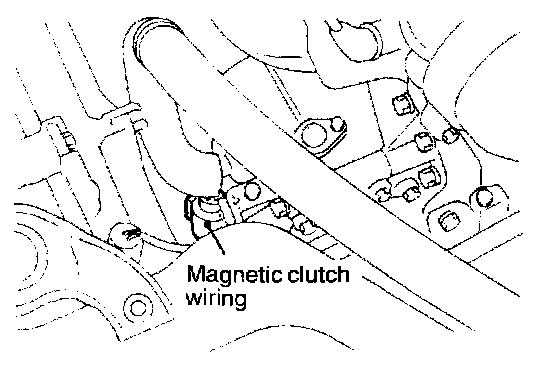

Disconnect the wiring to the magnetic clutch.
2.
Connect battery (-) to compressor body.
3.
Connect battery (+) voltage directly to the wiring for the magnetic clutch.
4.
If the magnetic clutch is normal, there will be a "click". If the pulley and armature do not make contact ("click"), there is a malfunction.
