Alignment: Testing and Inspection
1.
Set front

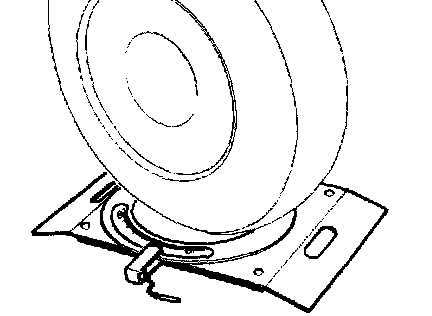

wheels on turning radius gauge and measure steering angle.
Standard values:
[FWD]
Inner wheel 33° 45' ± 2'
Outer wheel [reference value] 28° 21'
[AWD]
Inner wheel 31° 45' ± 2'
Outer wheel [reference value] 27° 10' 2.
When not within the standard value, it is probably a toe problem. Adjust toe and recheck.
