Power Window Relay: Testing and Inspection
POWER WINDOW RELAY CHECK 1.
Remove the knee protector assembly.
2.

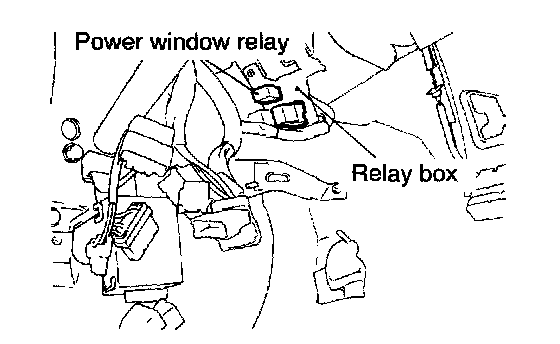

Remove the
power window relay from indoor
relay box.
3.

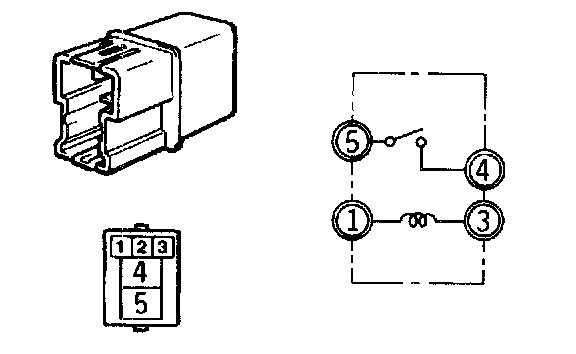

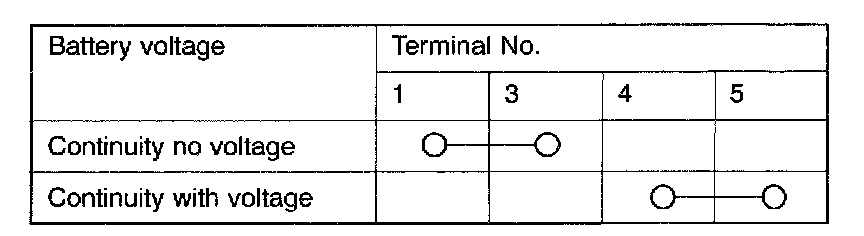

Apply battery voltage to terminal 1, and check for continuity when terminal 3 is grounded.
