Control Unit

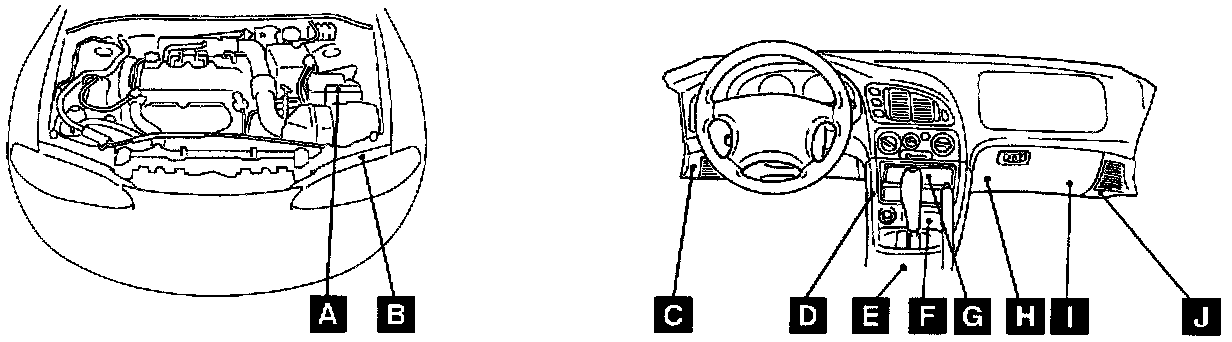

Control Unit Locations Overall View A-J:

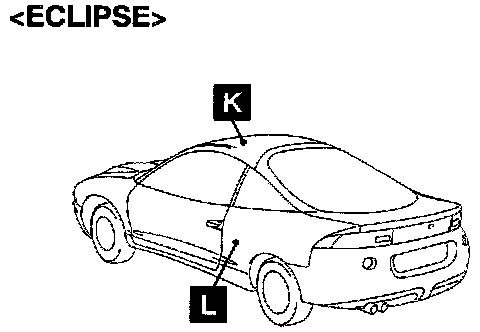

Control Unit Locations Overall View K,L:
Control Unit Locations Overall View M,N:

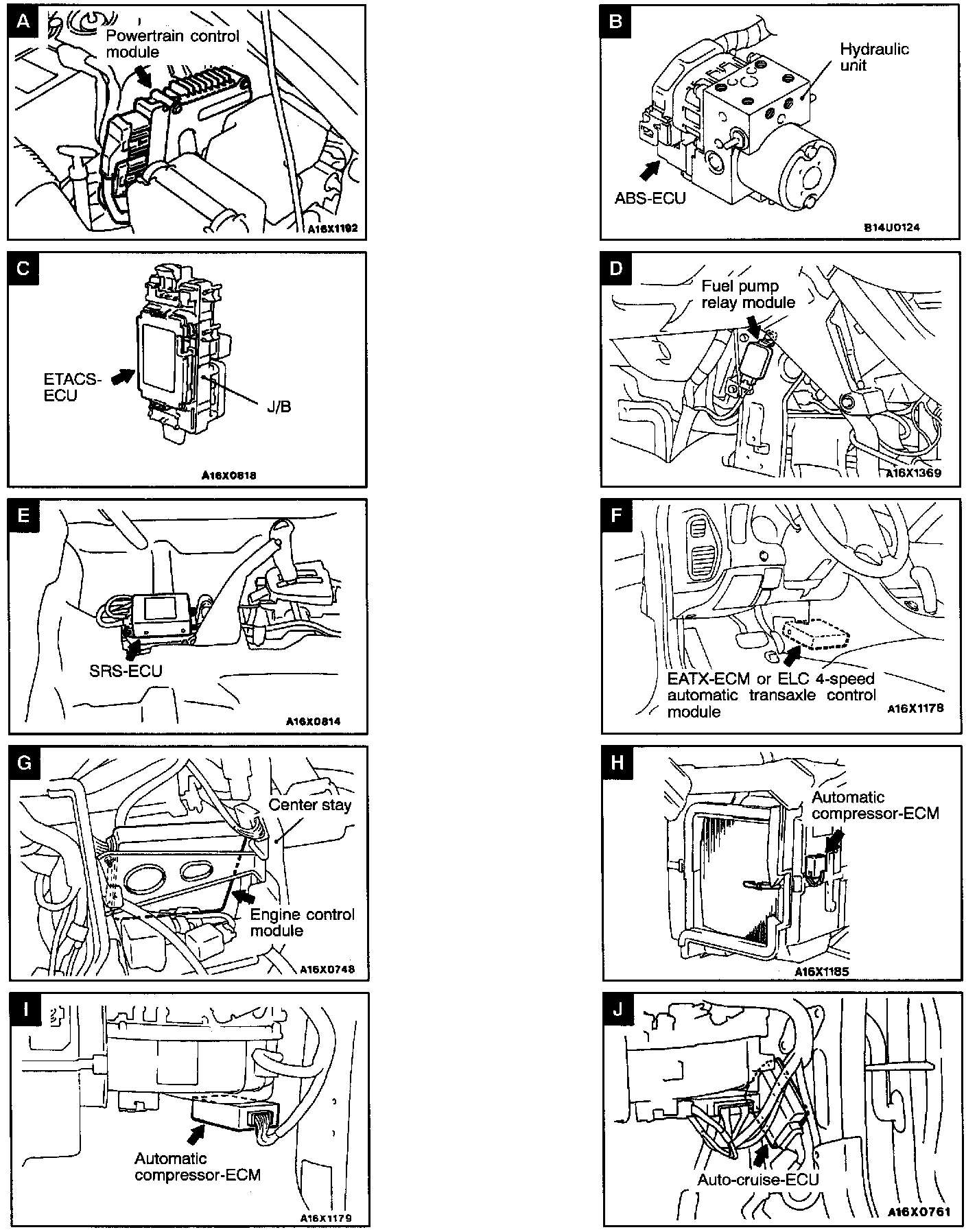

Control Unit Location Views A-J:

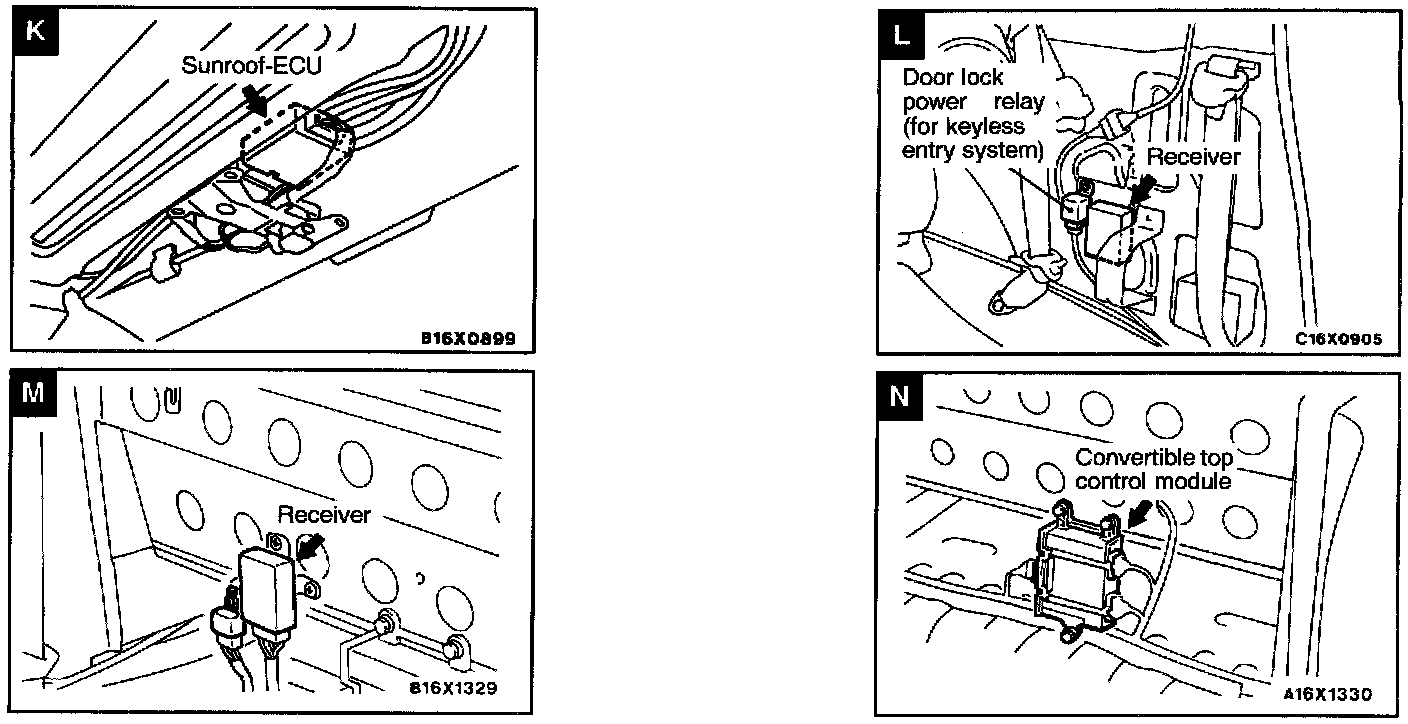

Control Unit Location Views K-N:
Name SymbolABS-ECU
B
Automatic Compressor-ECM
I
Auto-Cruise-ECU
J
Convertible Top Control Module
N
EATX-ECM
F
ETACS-ECU
C
Powertrain Control Module
A
Receiver
L
SRS-ECU
E
Sunroof-ECU
K
