M/T Technical Data

F5M31/F5M33/W5M33 5-spd M/T, Clutch Dimensions:

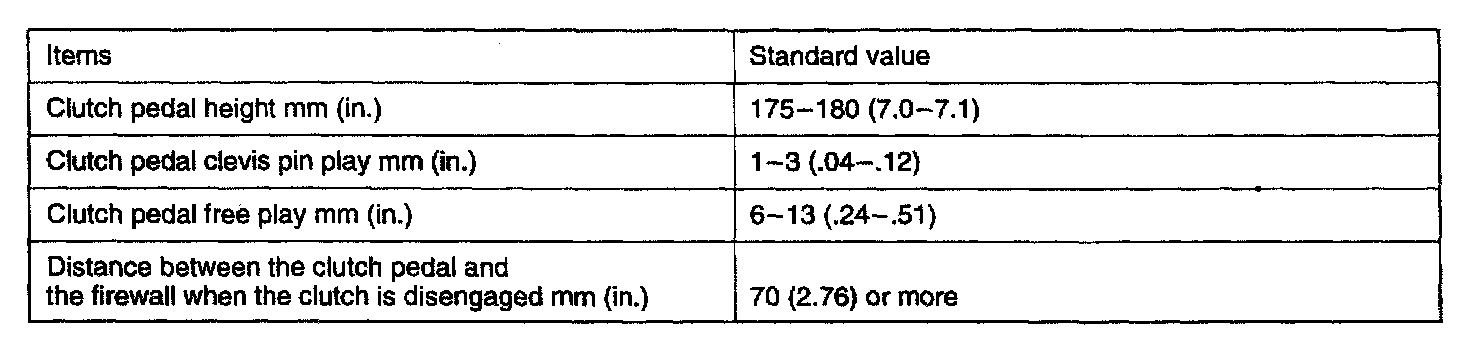

F5M31/F5M33/W5M33 5-spd M/T, Clutch Standard Values:





F5M31/F5M33 5-spd M/T, Clutch Limits:

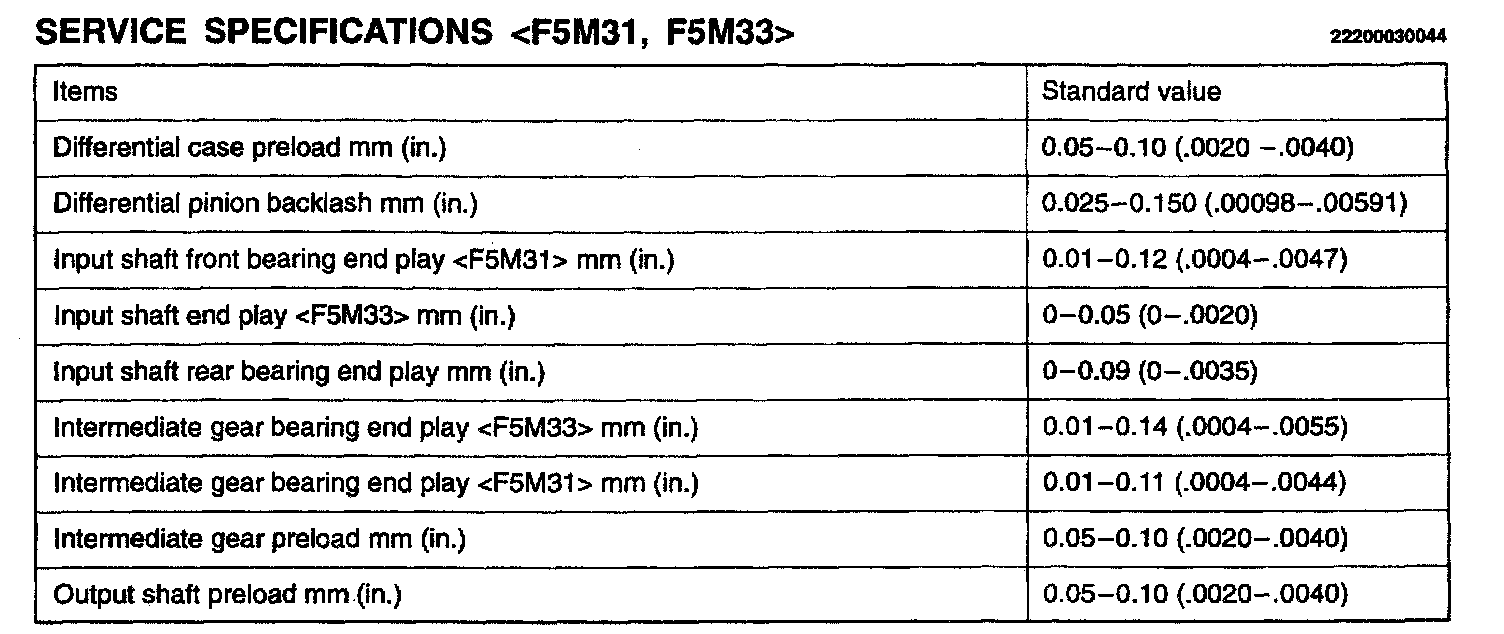

F5M31/F5M33 5-spd M/T, Standard Value:

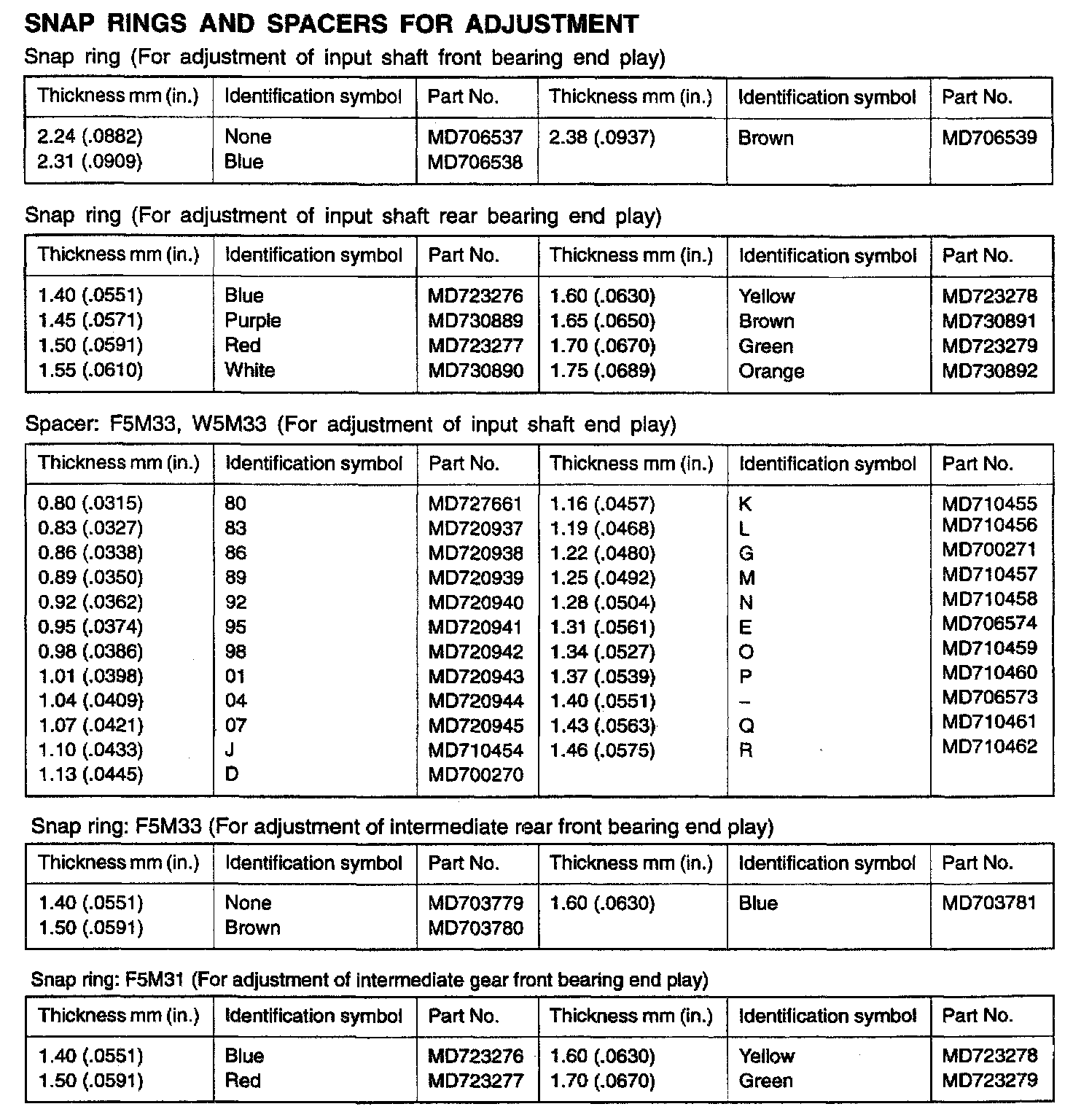

F5M31/F5M33/W5M33 5-spd M/T, Input Shaft & Intermediate Gear:

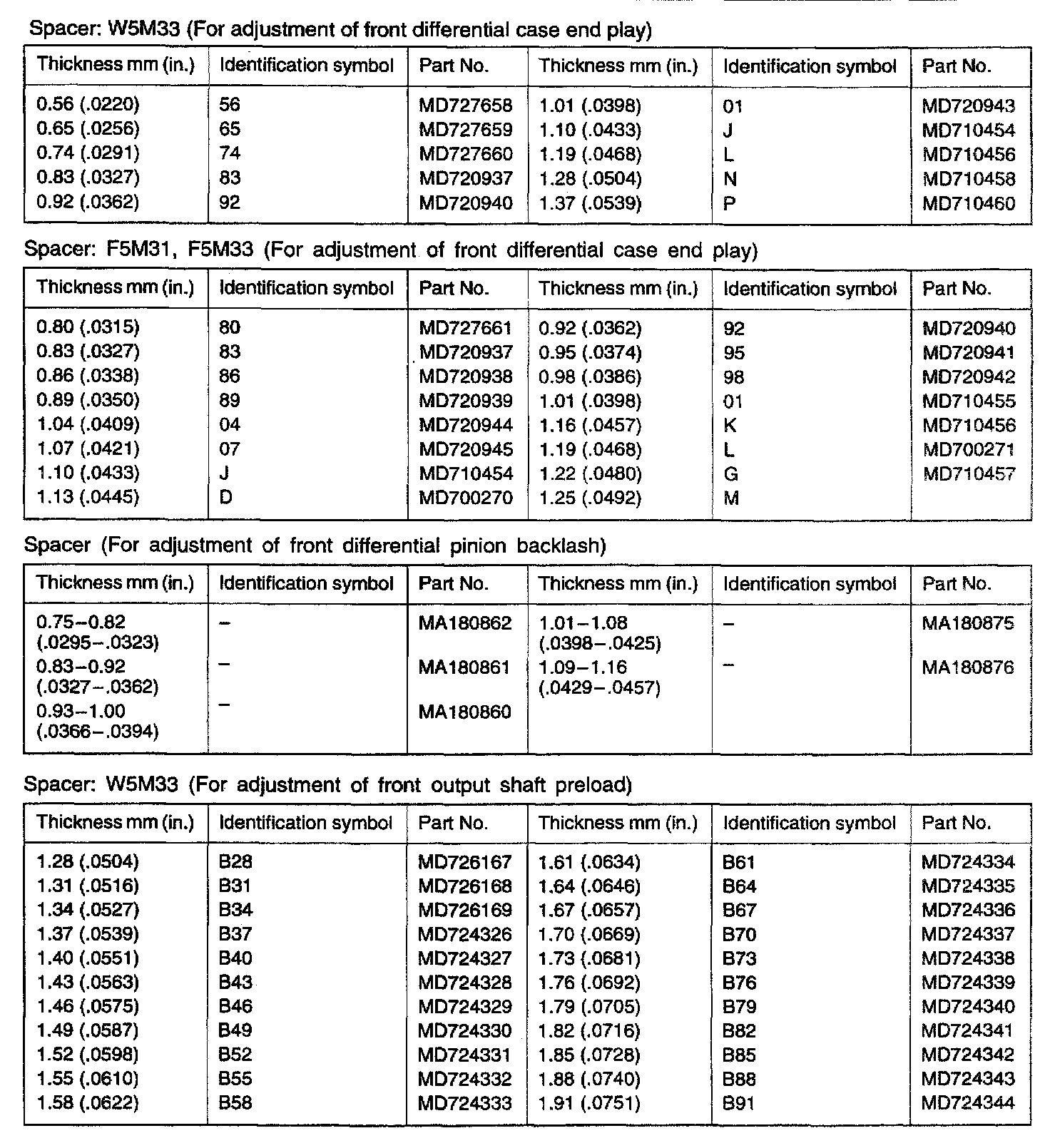

F5M31/F5M33/W5M33 5-spd M/T, Differential End Play, Backlash & Preload:
