Inside/Outside Air Damper Controller Continuity Check

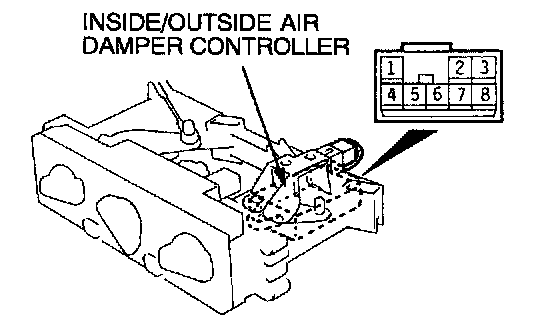

INSIDE/OUTSIDE AIR DAMPER CONTROLLER CONTINUITY CHECK

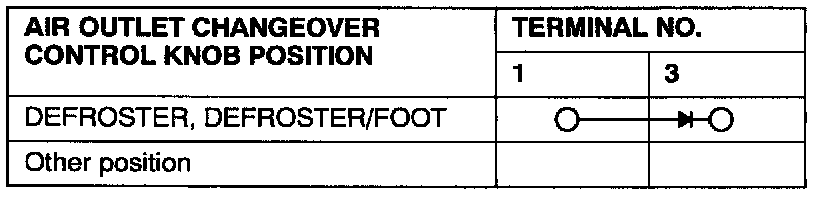

1. DEFROSTER SWITCH

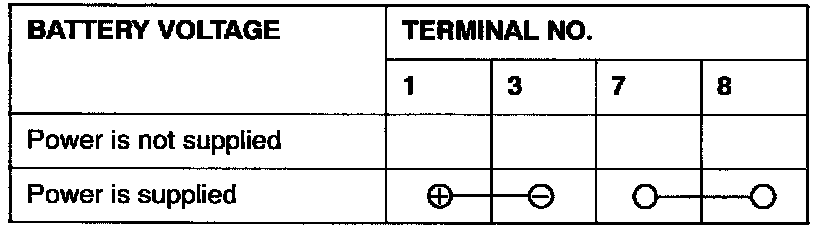

2. INSIDE/OUTSIDE AIR DAMPER CHANGEOVER RELAY

NOTE: Battery voltage should be supplied when the air outlet changeover knob is at the defroster or defroster/foot position.

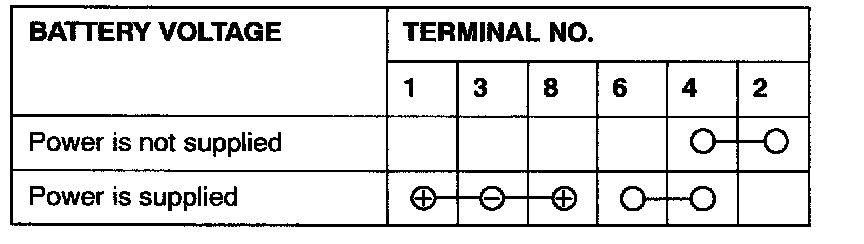

3. A/C INDICATOR RELAY
