Alignment: Testing and Inspection
STEERING ANGLE CHECK 1.

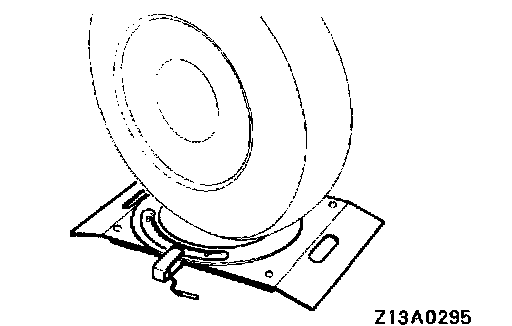

Place the front wheel on a turning radius gage and measure the steering angle.
Standard value:
Inner wheel 29°40' - 32°40'
Outer wheel 29°45' 2.

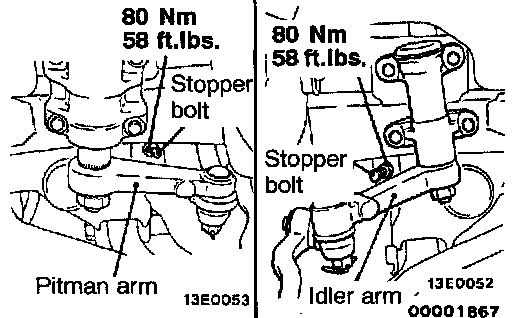

If the steering angle is outside the standard value, check the toe-in, and then adjust the steering angle with the stopper bolt.
