Component Inspection

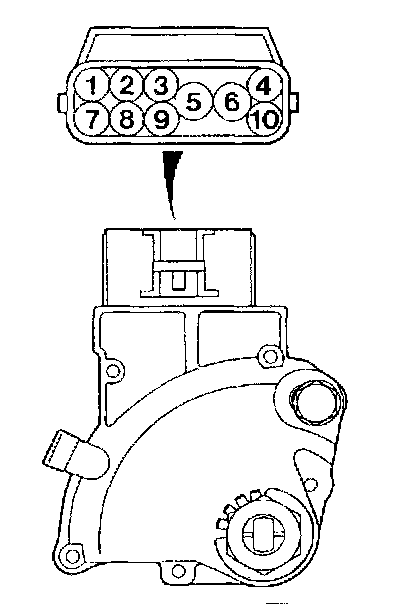

Park/Neutral Position Switch ("N" position) Check
1. Disconnect the connector.

2. Check to be sure that there is continuity between connector terminals (5) and (6) when the selector lever is moved to the "N" range.
