Input Shaft Speed Sensor Check
INPUT SHAFT SPEED SENSOR CHECK 1.
Disconnect the input shaft speed sensor connector.
2.

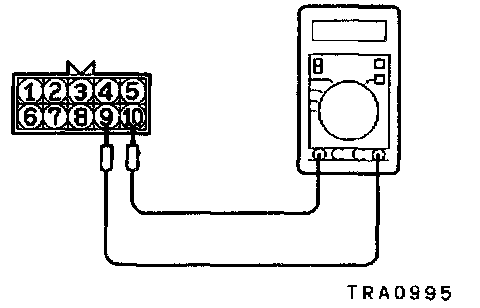

Measure the resistance between terminals No. 9 - 10 of the sensor-side connector.
Standard value:
620 ± 60 Ohms [at 20°C (68°F)] 3.
If the resistance is outside the standard value, replace the
vehicle speed sensor.
