Injector Connector

Foreword
Connector which gives loose engagement shall be rectified by removing female terminal from connector housing and raising its lance to establish securer engagement. Removal of connector housing and raising its lance to establish securer engagement. Removal of connector terminal used for MFI and ELC-4 A/T control circuit shall be done.

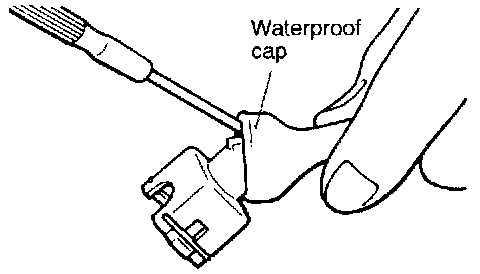

1. Remove waterproof cap.

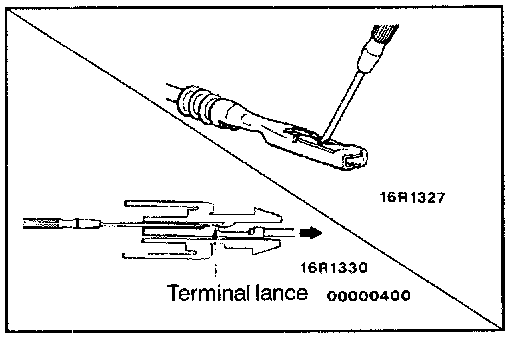

2. Insert tip of screwdriver [1.4 mm (0.06 in) width] into connector in a manner as shown in the figure, press in terminal lance and pull out harness.
3. Press contact point of male terminal down by holding a screwdriver [1.4 mm (0.06 in) width] in a manner as shown in the figure.

CAUTION: Correct lancer to be in proper condition before terminal is inserted into connector.
