Control Unit

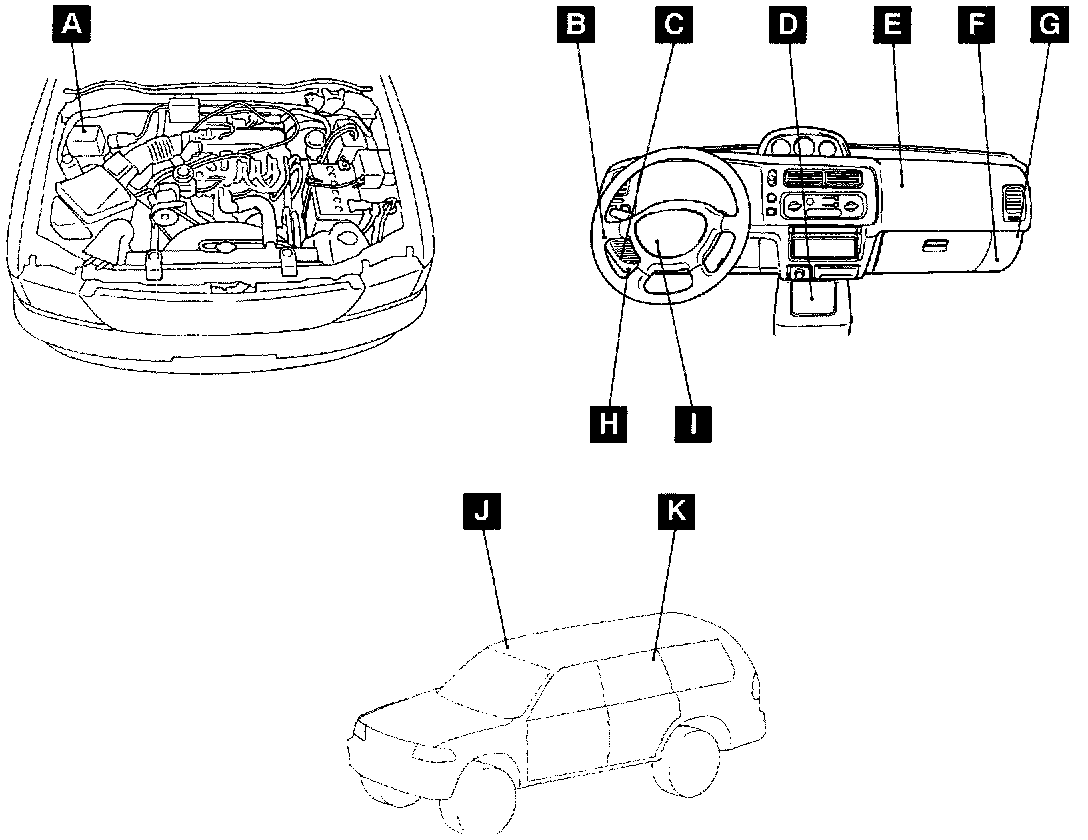

Control Unit Location Overall View:

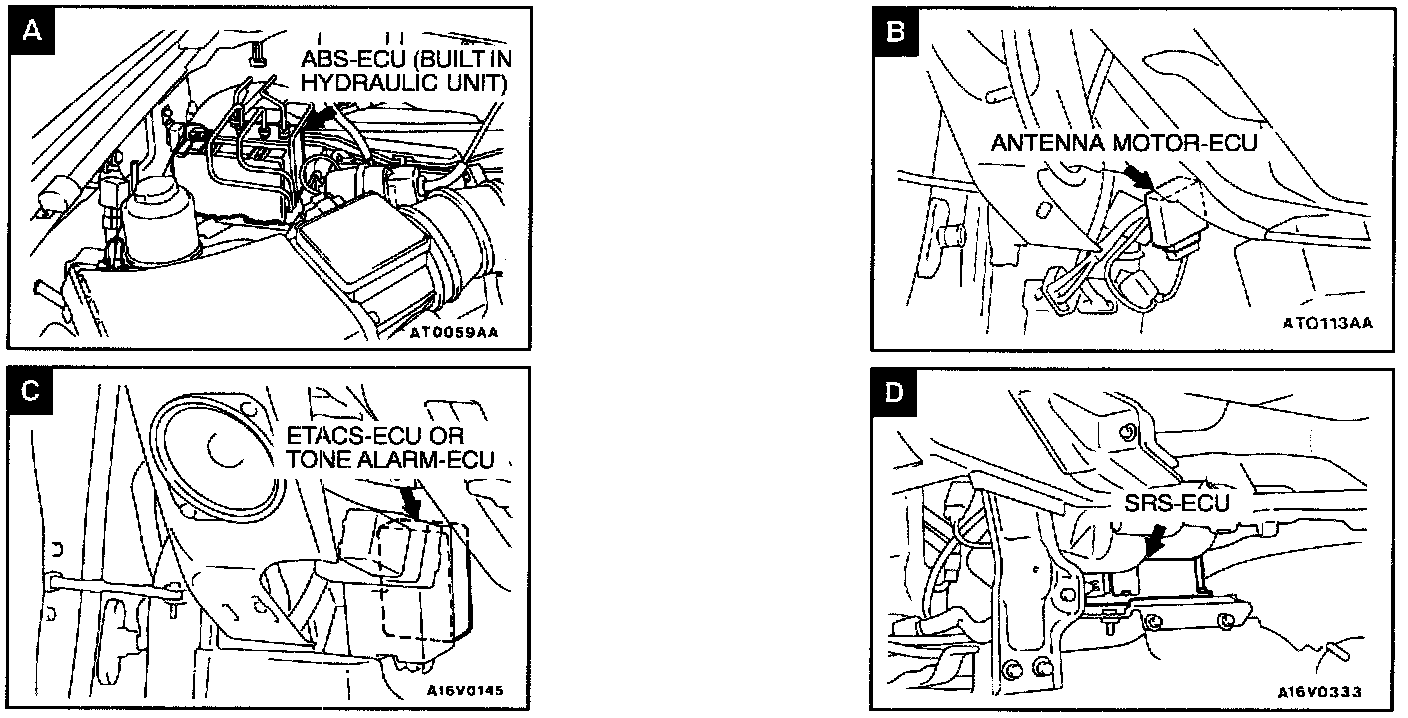

Control Unit Location View A-D:

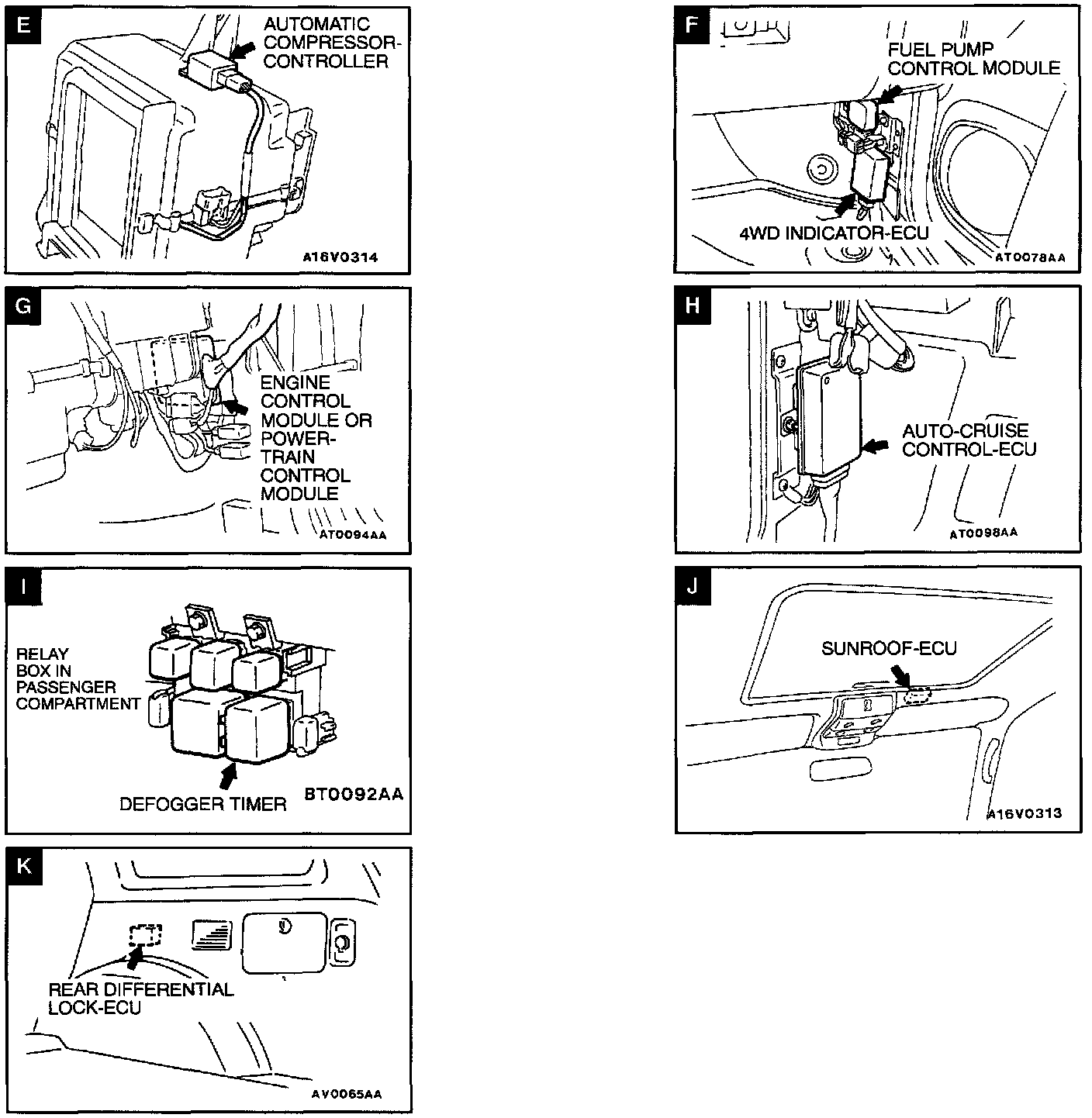

Control Unit Location View E-K:
NAME SYMBOL4WD Indicator-ECU
G
ABS-ECU
A
Antenna Motor-ECU
B
Auto-Cruise Control-ECU
H
Automatic Compressor-ECU
E
Defogger Timer
I
Engine Control Module
G
ETACS-ECU
C
Fuel Pump Control Module
F
Rear Differential Lock-ECU
K
SRS-ECU
D
Sunroof-ECU
J
Tone Alarm-ECU
C
Powertrain Control Module (A/T)
G
