M/T Technical Data

R5M21/V5MT1 5-spd M/T, Clutch Standard Values:





R5M21/V5MT1 5-spd M/T, Clutch Limits:

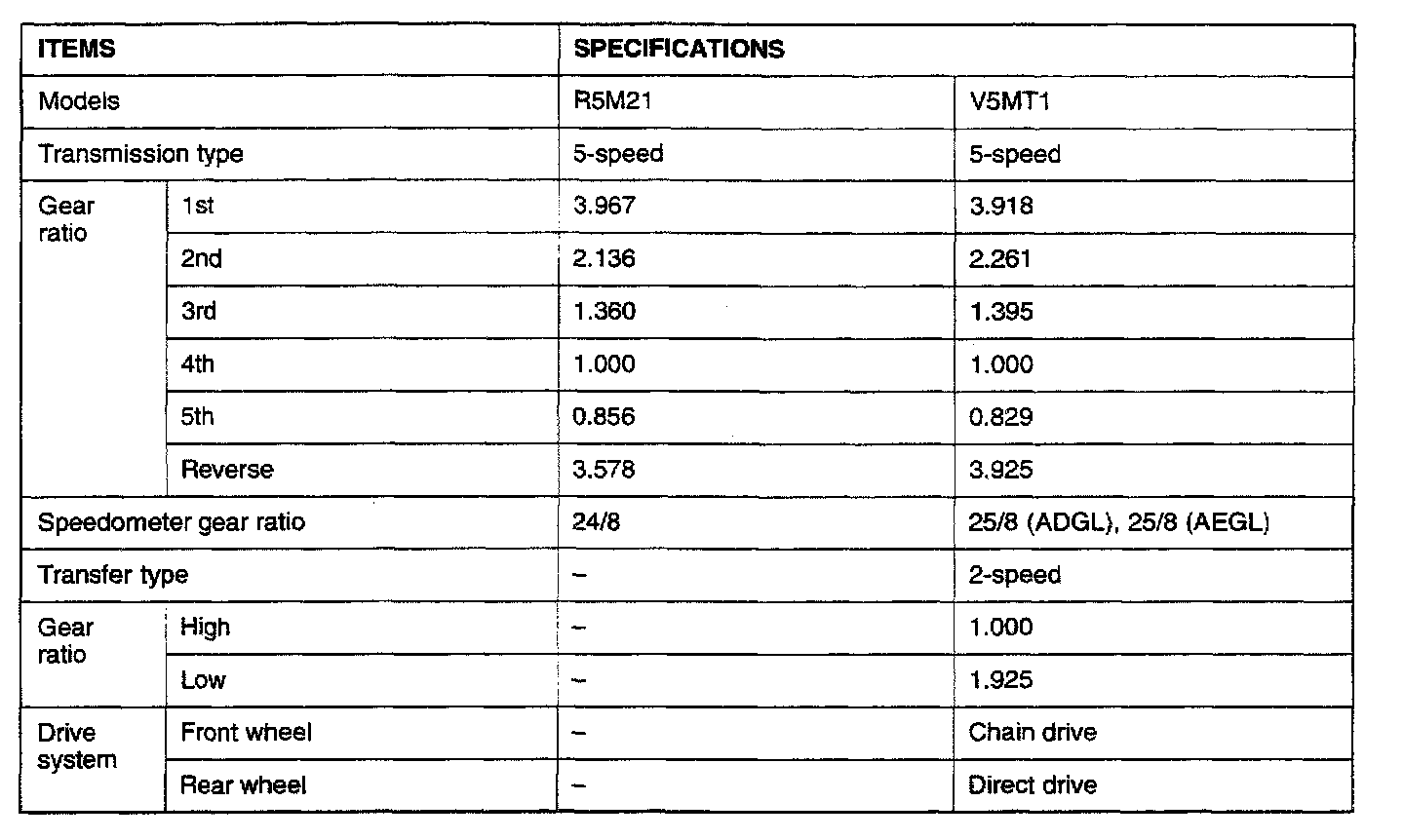

R5M21/V5MT1 5-spd M/T, Gear Ratios:

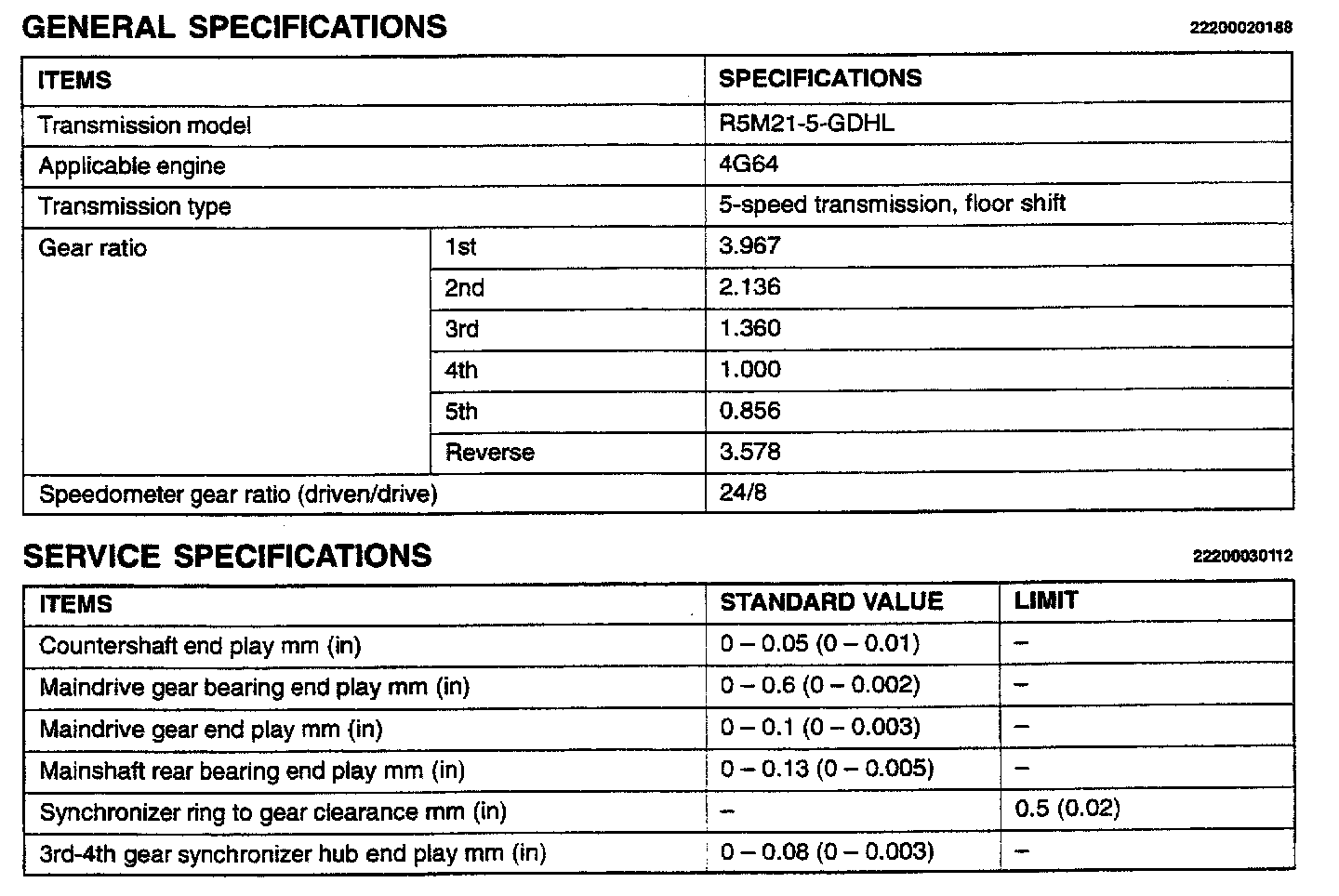

R5M21 5-spd M/T, Gear Ratios:

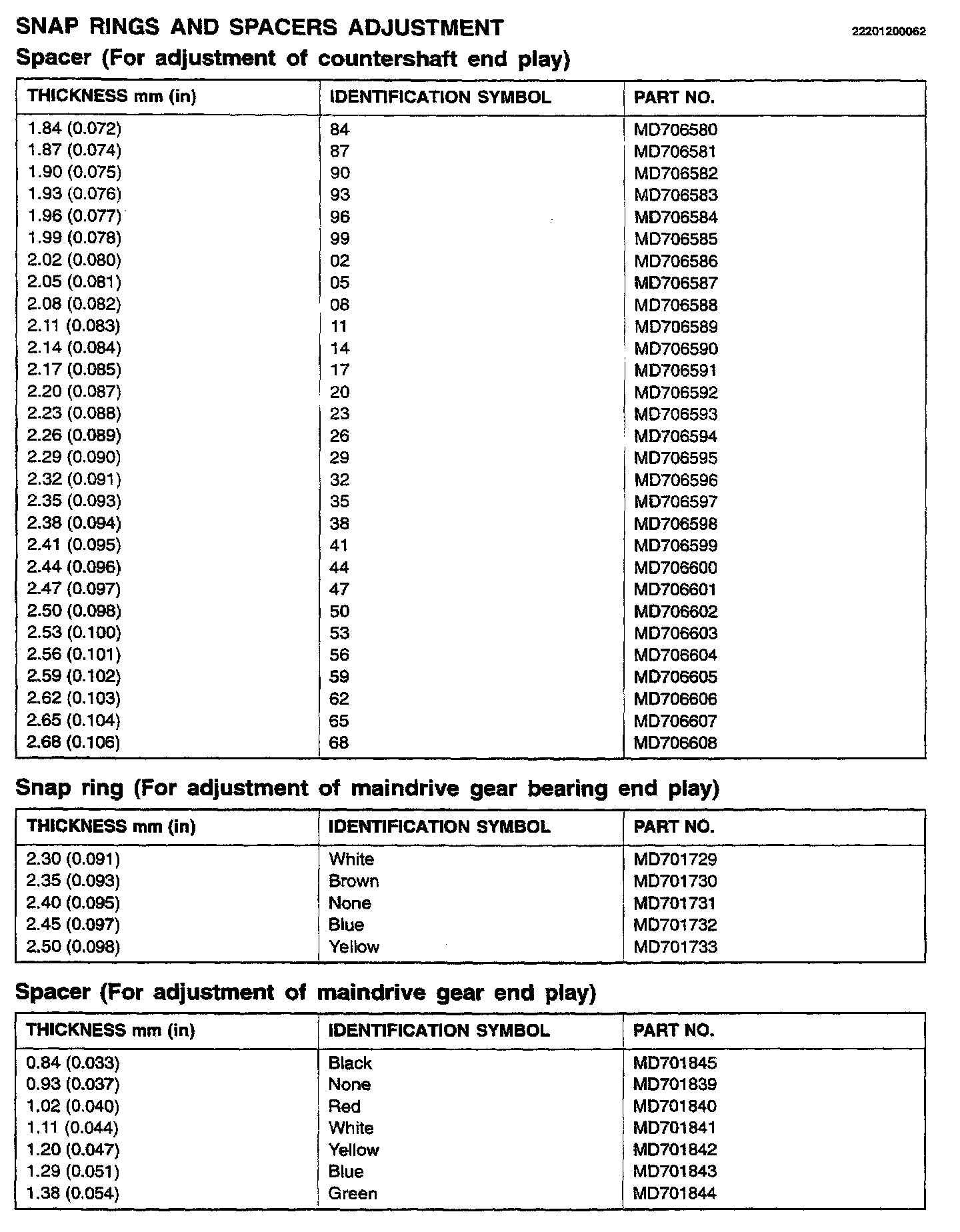

R5M21 5-spd M/T, Countershaft & Main Drive Gear End Play:





R5M21 5-spd M/T, Mainshaft Bearing & 3-4th Spd Synchronizer End Play:
