Ignition Switch: Service and Repair

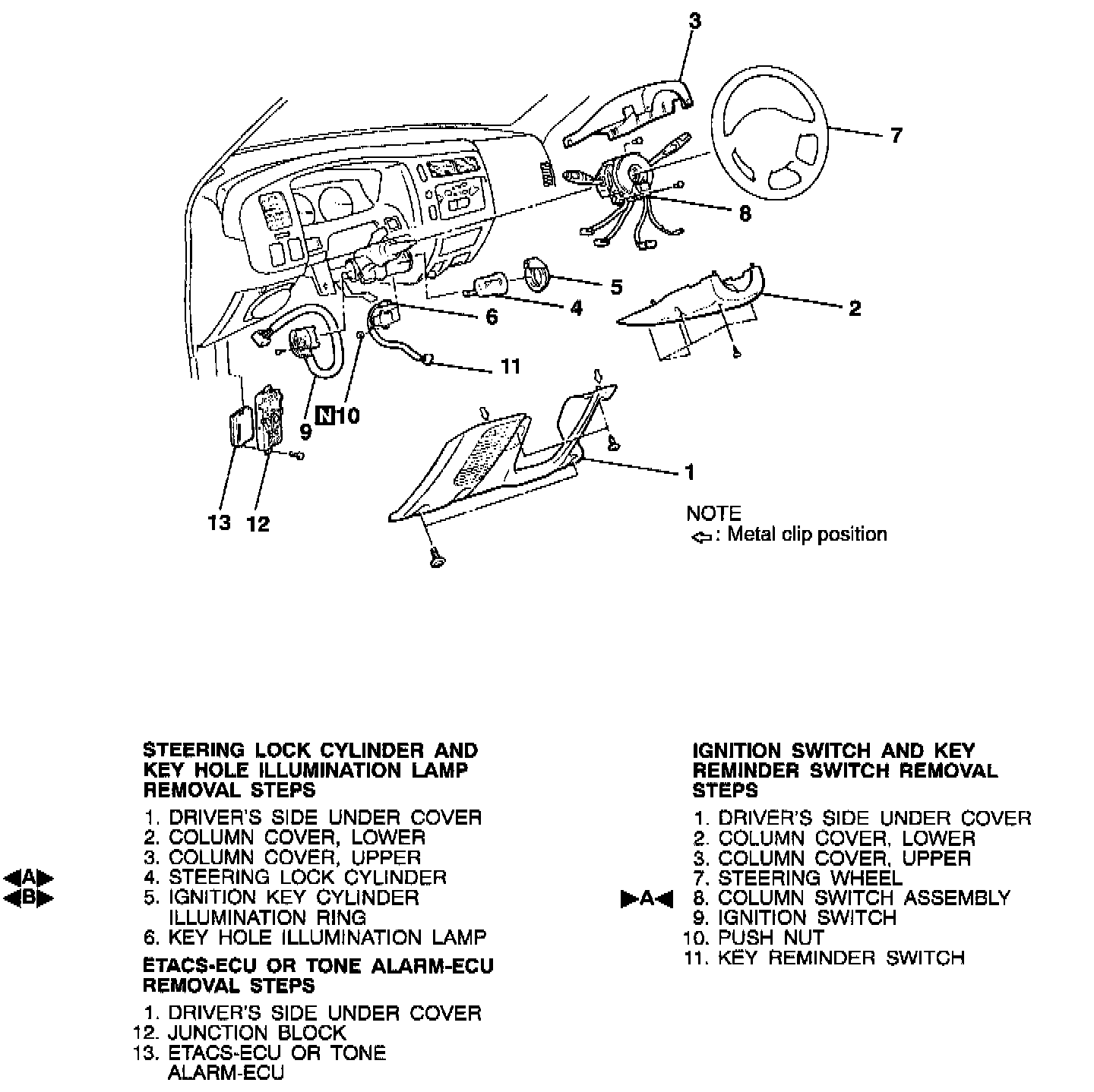

REMOVAL AND INSTALLATION
WARNING: Before removal of the air bag module and clock spring, refer to SRS Service Precautions and Air Bag Module and Clock Spring.
REMOVAL SERVICE POINTS
STEERING LOCK CYLINDER REMOVAL
1. Insert the key in the steering lock cylinder and turn it to the "ACC" position.
2. Using a Phillips-head screwdriver (small) or similar tool, push the lock pin of the steering lock cylinder inward and then pull the steering lock cylinder toward you.
IGNITION KEY CYLINDER ILLUMINATION RING REMOVAL
Turn the ignition key cylinder illumination ring to the left and remove it.
INSTALLATION SERVICE POINT
>A< COLUMN SWITCH ASSEMBLY INSTALLATION
Tighten the column switch assembly mounting screws to the specified torque in the order of A, B and C.
Tightening torque: 25 N.m (18 ft-lb)
