OBD-II Drive Cycle Pattern Lists

The contents of this article reflect the changes called out by TSB 04-13-12

CAUTION:
Two technicians should always be in the vehicle when carrying out a test.

NOTE:
Check that the diagnosis trouble code (DTC) is not output before driving the OBD-II drive cycle. Erase the DTC if it has been output.

NOTE:
Drive cycle patterns are not established for Vehicle speed sensor monitor (DTC P0500) Closed throttle position switch monitor (DTC P0510). Power steering pressure switch monitor (P0551). Please reference the MUT data list to judge whether these monitor items are normal.

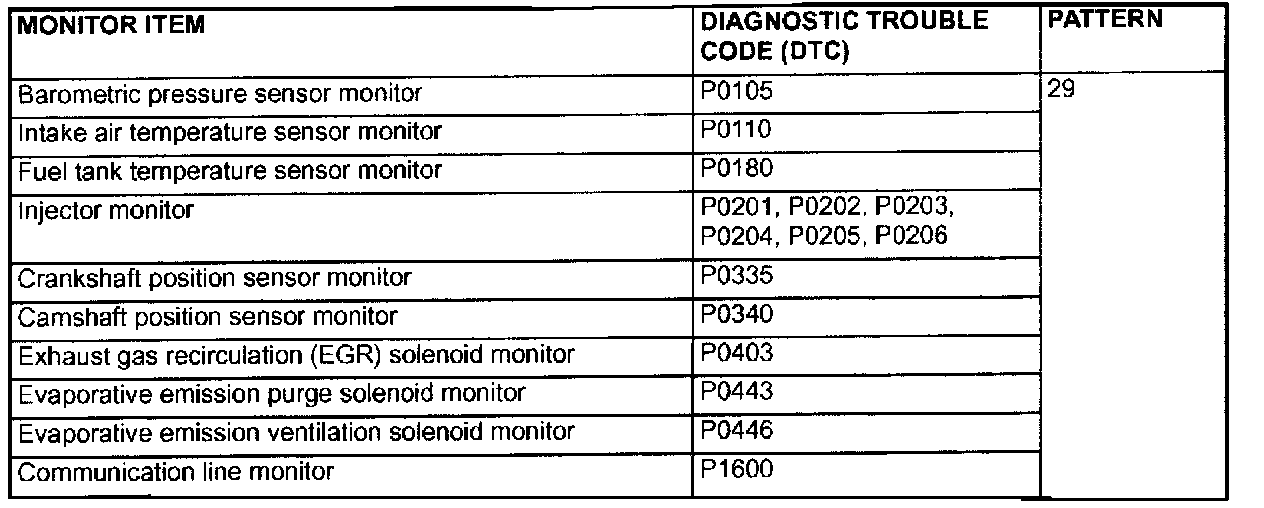

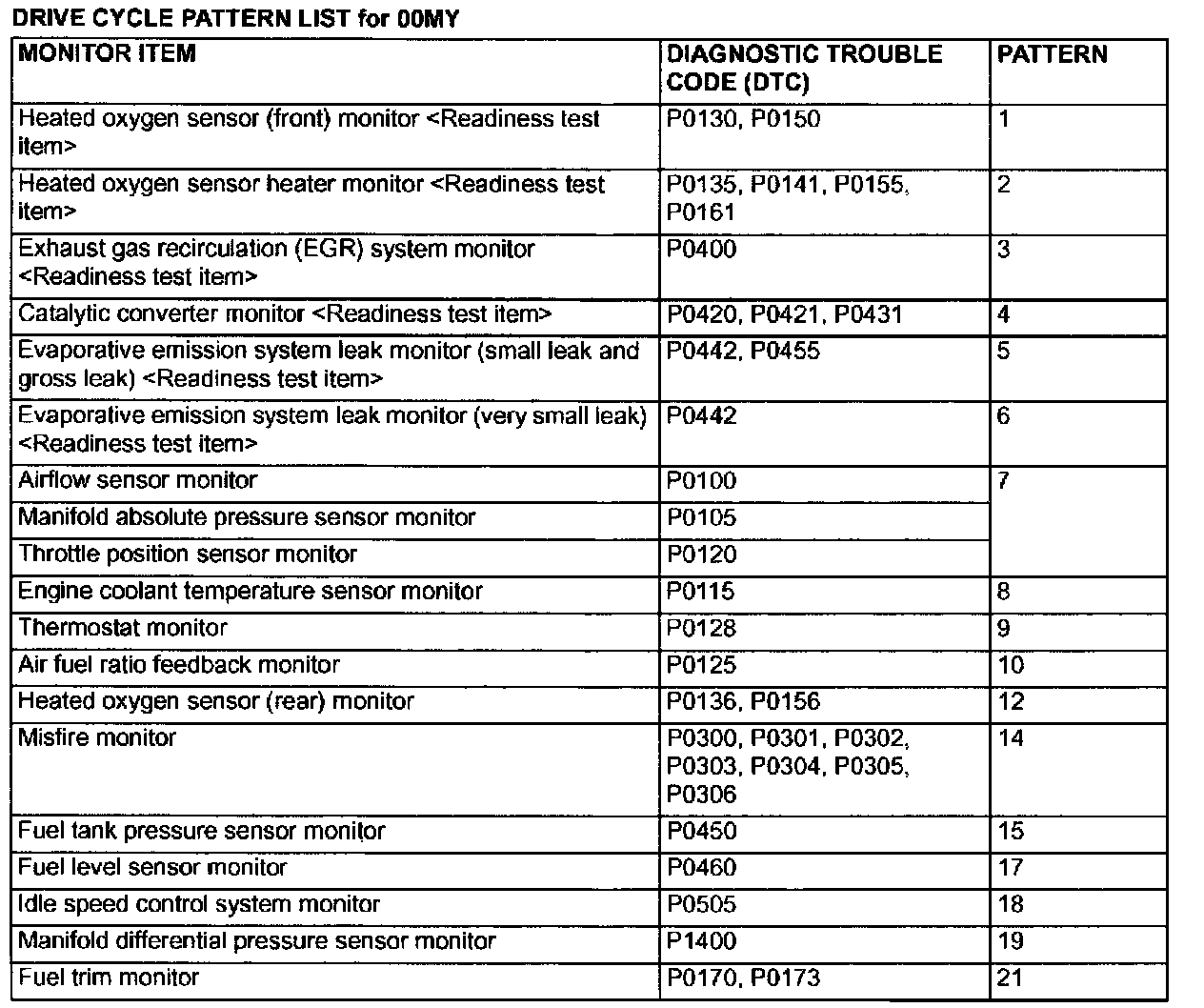

Drive Cycle Pattern List






Pattern 1 and 2




Pattern 3





Pattern 4




Pattern 5




Pattern 6 and 7




Pattern 8




Pattern 9





Pattern 10





Pattern 11





Pattern 12





Pattern 13





Pattern 14





Pattern 15








Pattern 16 and 17











Pattern 18, 19 and 20











Pattern 21, 22 and 23











Pattern 24, 25 and 26











Pattern 27, 28 and 29
