Normal Scan Data Values

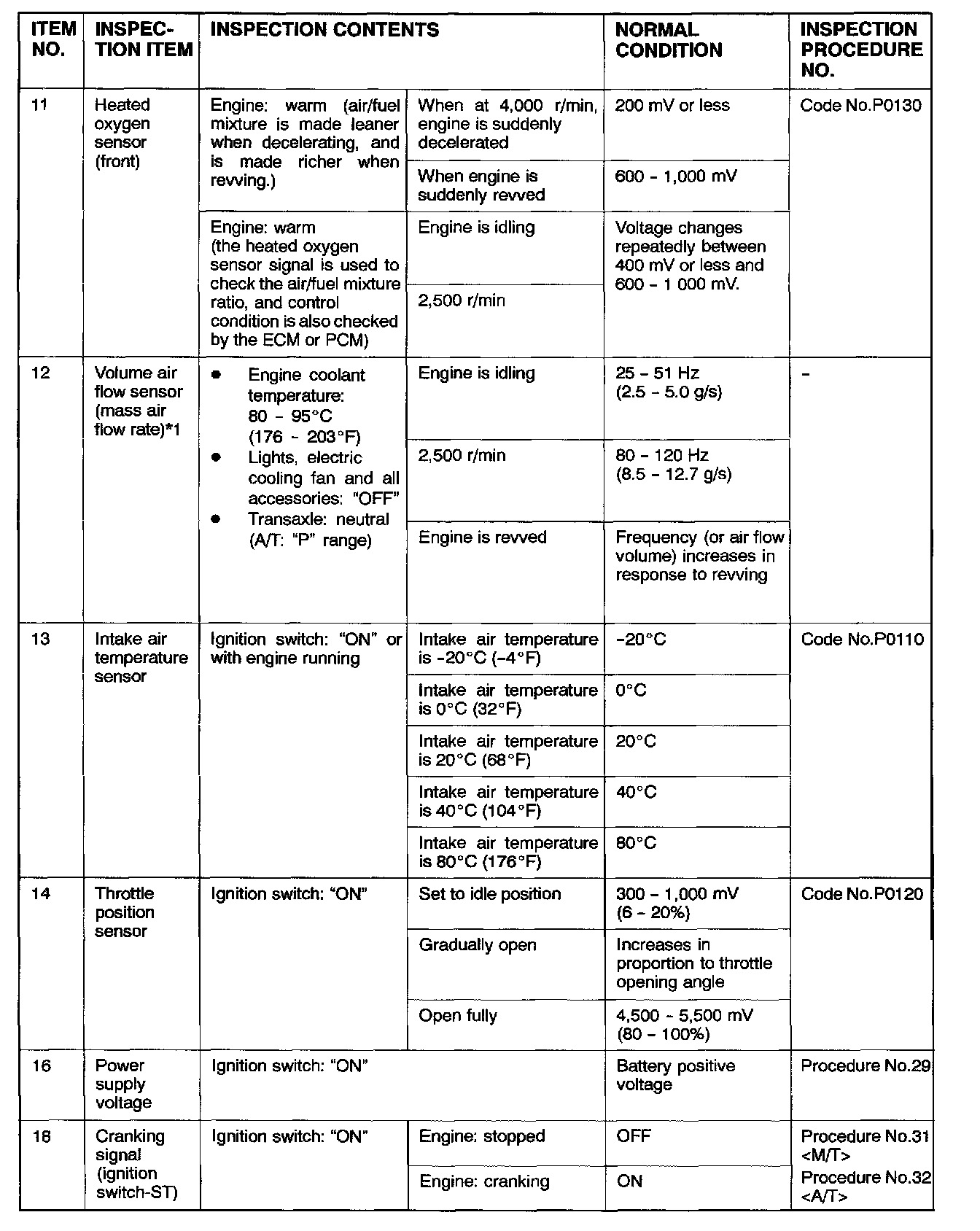

Part 1 Of 4:

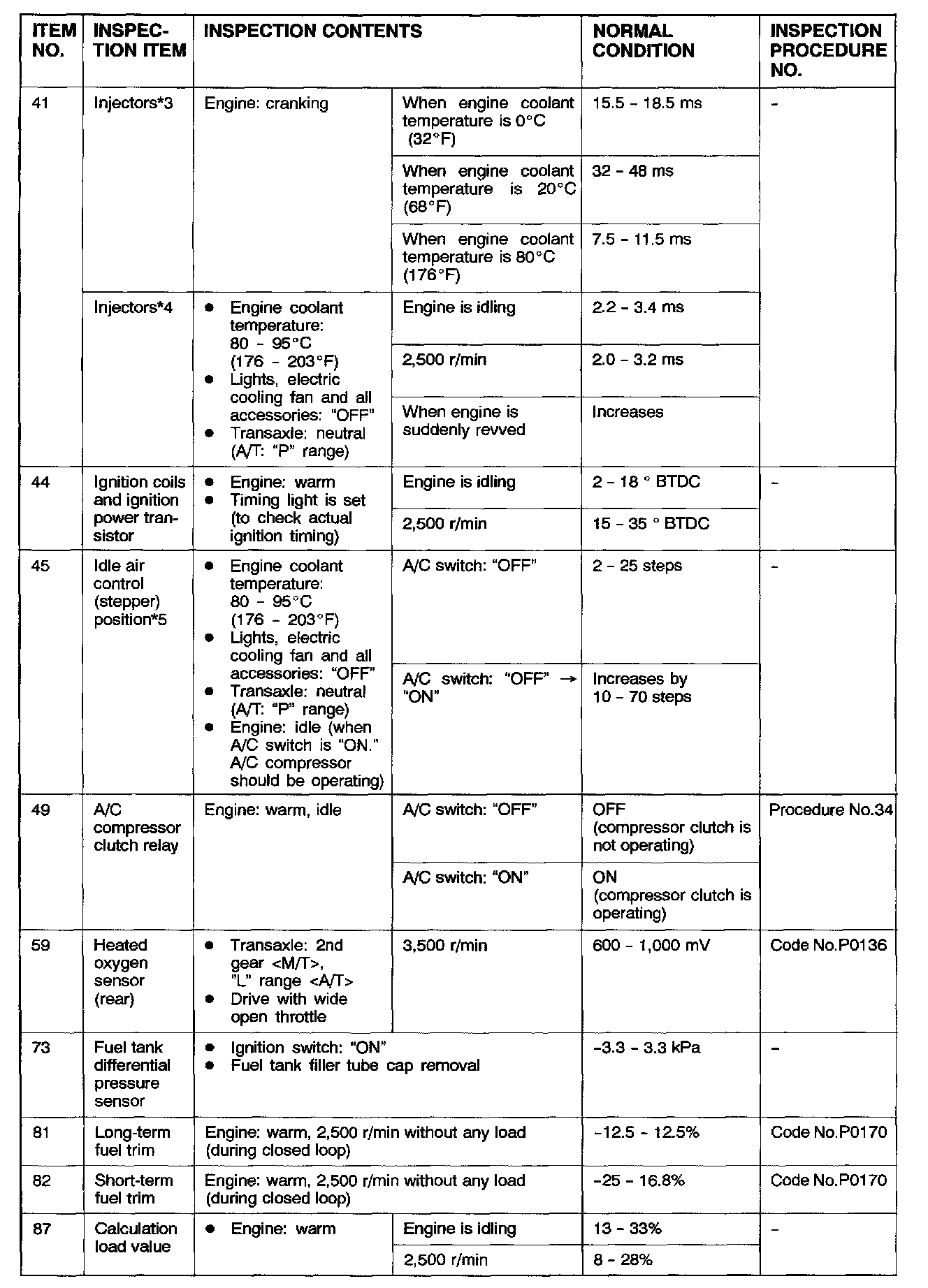

Part 2 Of 4:

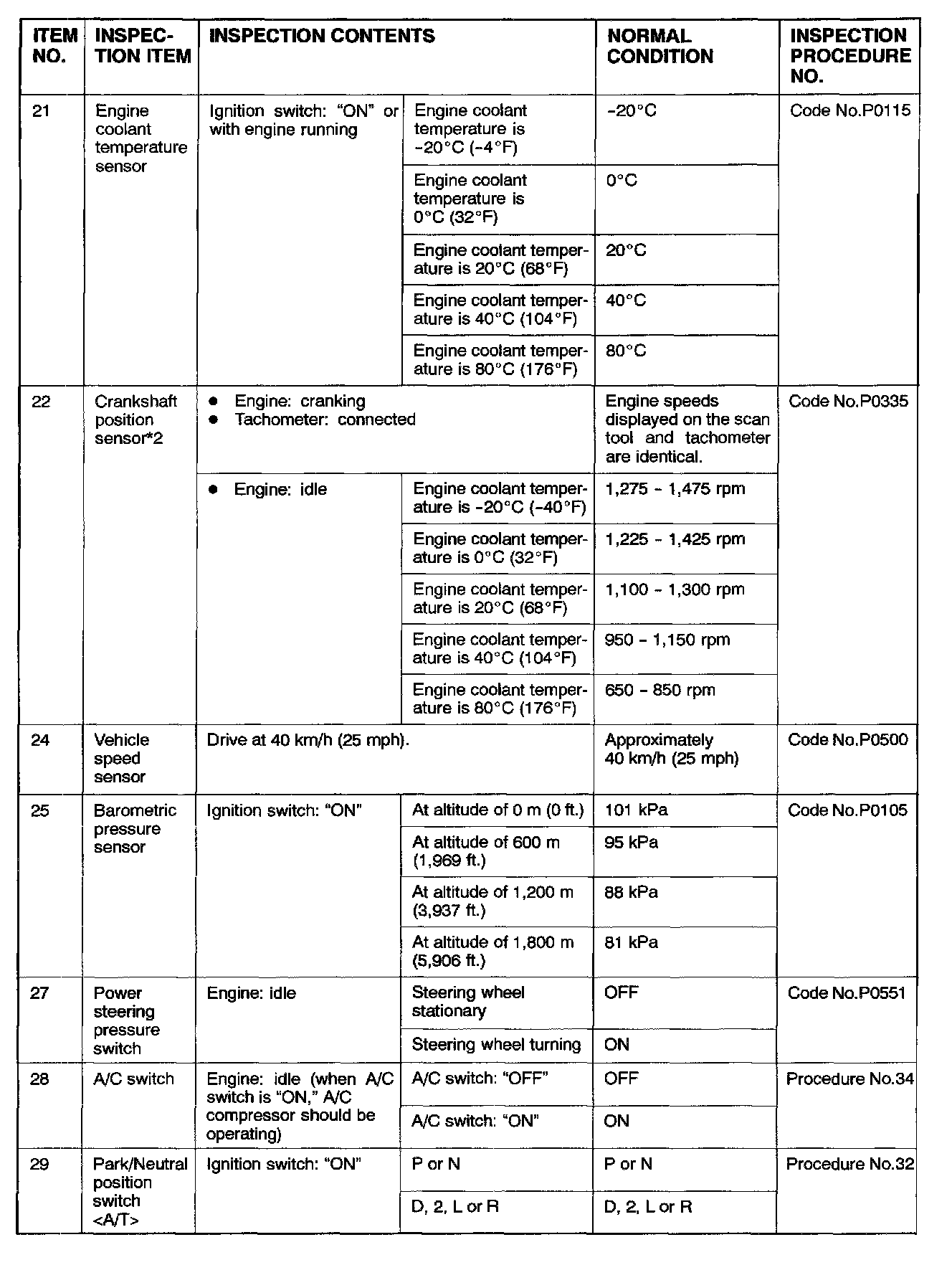

Part 3 Of 4:

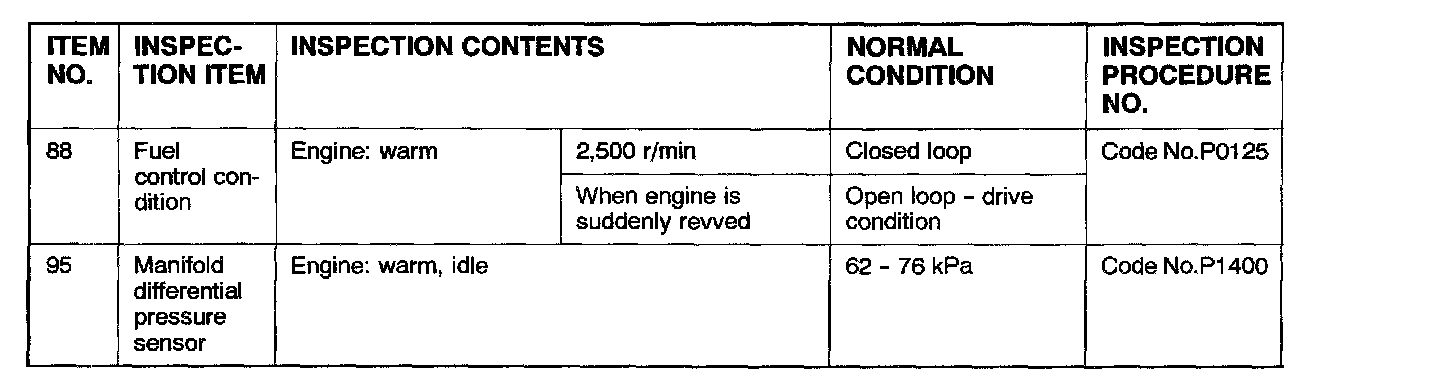

Part 4 Of 4:

NORMAL SCAN DATA VALUES

NOTES FOR DATA LIST ITEMS

*1: In a new vehicle [driven approximately 500 km (311 mile) or less], the volume air flow sensor output frequency is sometimes 10% higher than the standard frequency.
*2: If the idle speed is lower than the standard value on a very cold engine (approximately -20° C (-4° F) even when the IAC motor is fully opened, the air volume limiter built in the throttle body could be defective.
*3: The injector drive time represents the time when the cranking speed is at 250 r/min or below when the power supply voltage is 11 volts.
*4: In a new vehicle [driven approximately 500 km (311 mile) or less], the injector drive time is sometimes 10% longer than the standard time.
*5: In a new vehicle [driven approximately 500 km (311 mile) or less], the step of the stepper motor is sometimes 30 steps greater than the standard value.
