Test Procedures
1.

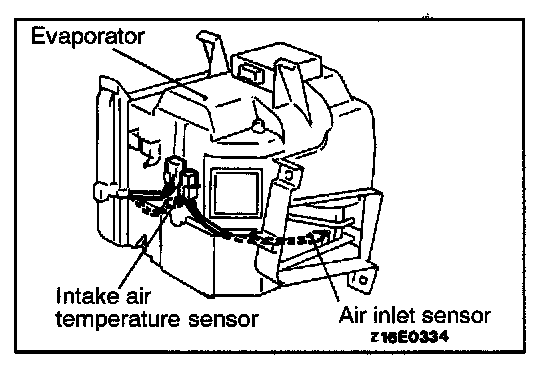

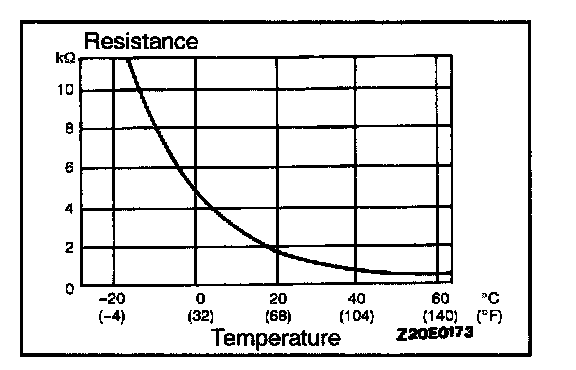

Disconnect the sensors connector at the evaporator case and then use an ohmmeter to measure the resistance. If the resistance is within 10% of the value on the characteristic curve, the sensor is functioning normally.
2.
If the sensor is normal, there is a malfunction of the air conditioning control unit, and it should be replaced.
