For California
Sensor Location Overall View:
Sensor Location View (A - H):
Sensor Location View (I - R):
Sensor Location View (R - Z):

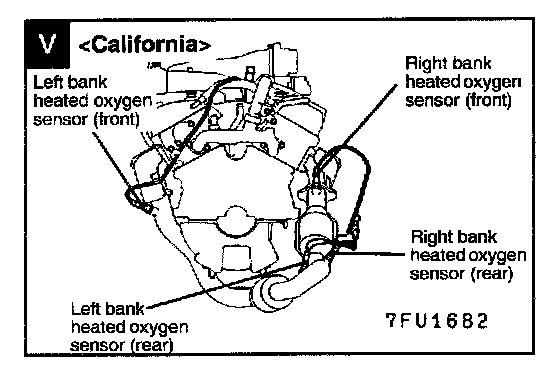

View V:
Name SymbolLeft Bank Heated Oxygen Sensor (Front)
Y
Left Bank Heated Oxygen Sensor (Rear)
X
Right Bank Heated Oxygen Sensor (Front)
P
Right Bank Heated Oxygen Sensor (Rear)
Q
