Liftgate Window Glass: Service and Repair

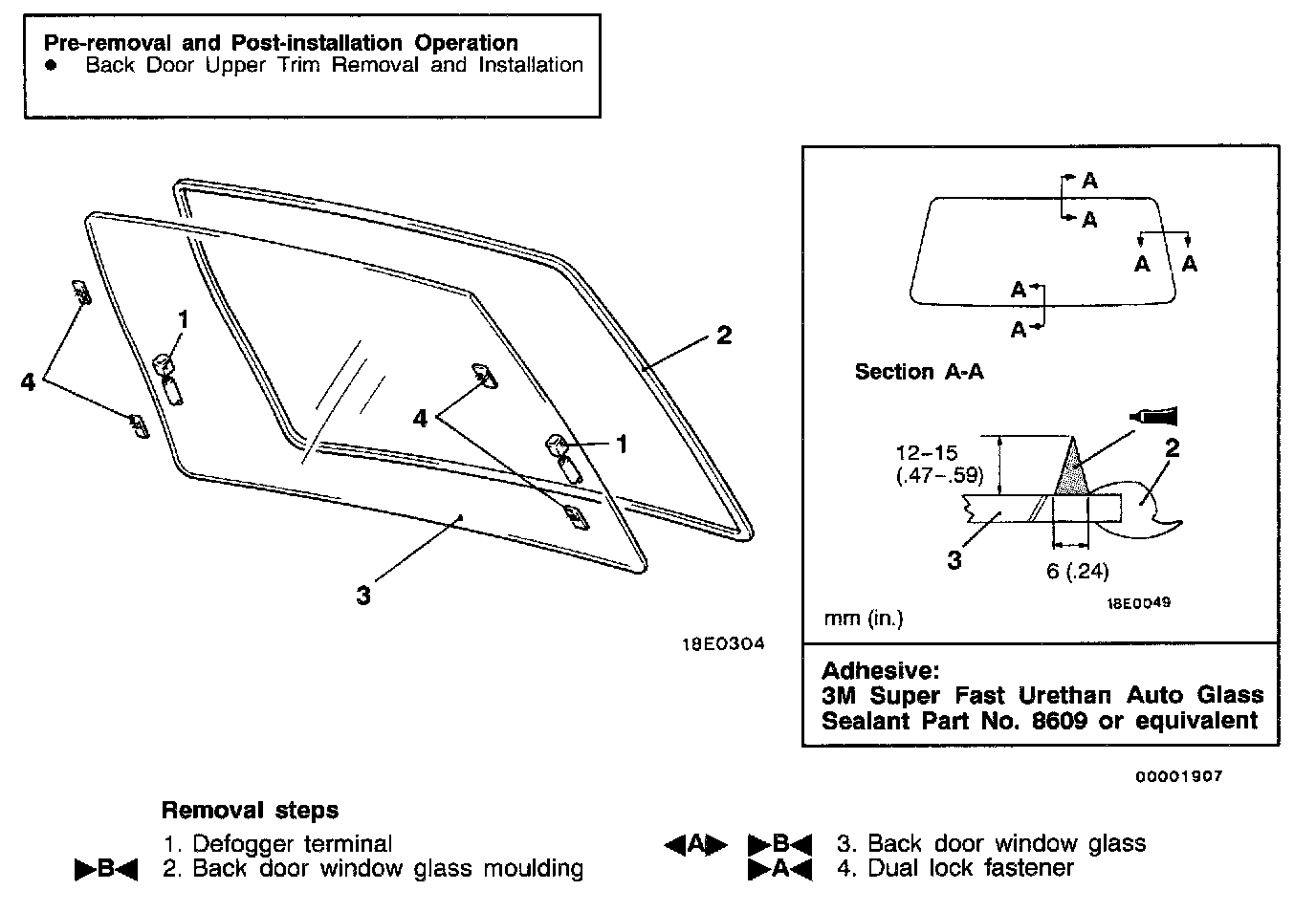

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT
[A] BACK DOOR WINDOW GLASS REMOVAL
Remove in the same way as for the windshield glass.

INSTALLATION SERVICE POINTS

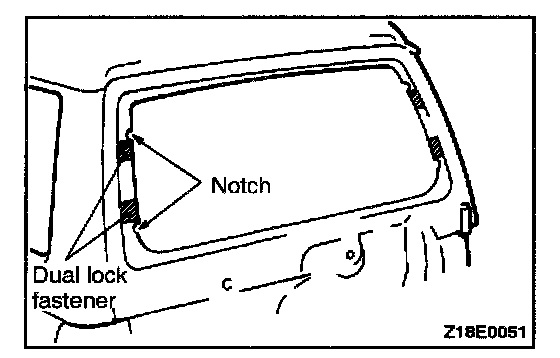

]A[ DUAL LOCK FASTENER INSTALLATION
Attach the dual lock fasteners so that the fastener ends are aligned with the notches on the body.

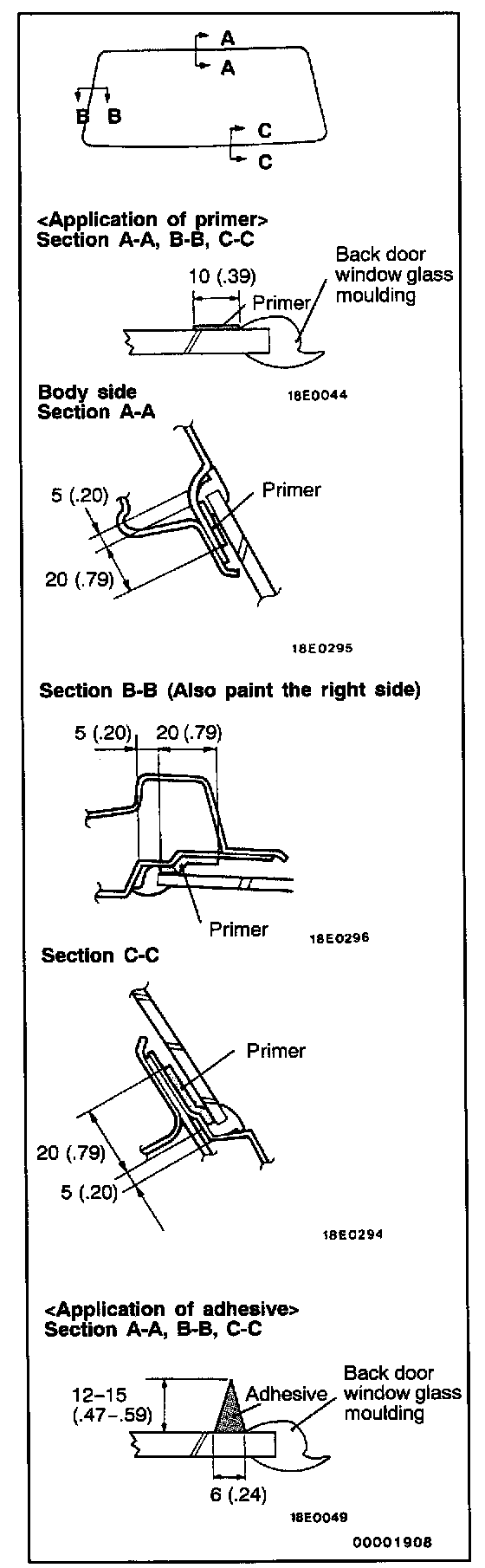

]B[ BACK DOOR WINDOW GLASS/BACK DOOR WINDOW GLASS MOULDING INSTALLATION
Install in the same way as for the windshield glass.
