Window Glass: Service and Repair

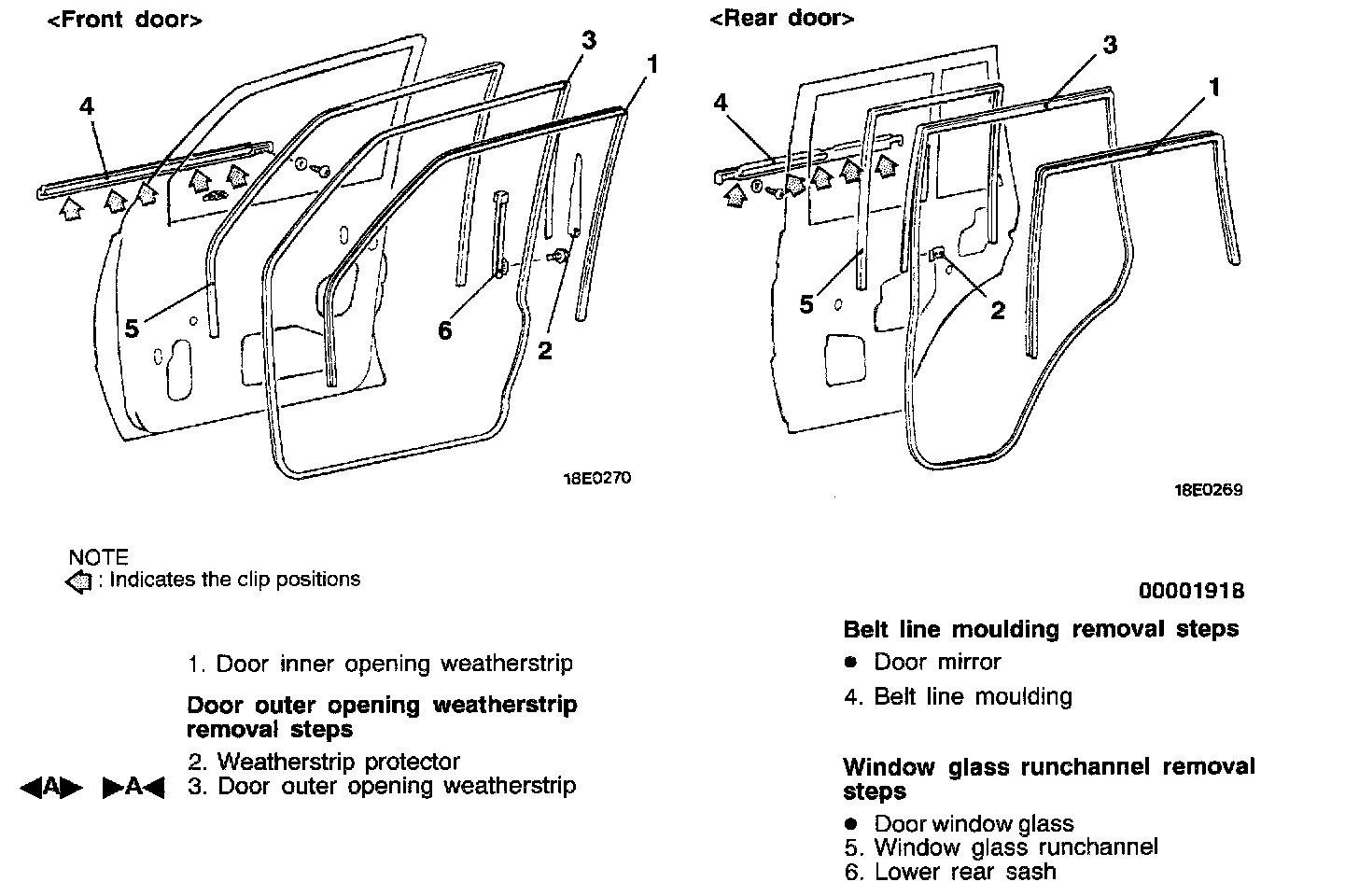

WINDOW GLASS RUNCHANNEL AND DOOR OPENING WEATHERSTRIP

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT

[A] DOOR OUTER OPENING WEATHERSTRIP REMOVAL
Make a tool as shown in the illustration to remove the door opening weatherstrip.

INSTALLATION SERVICE POINT

]A[ DOOR OUTER OPENING WEATHERSTRIP INSTALLATION

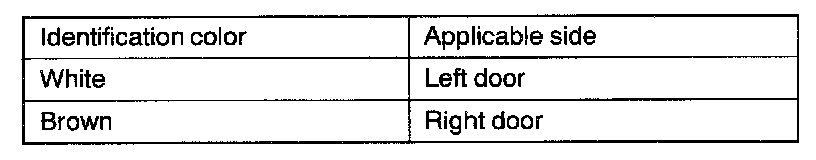

The clip color identifies the left and right weatherstrips, so be sure to use the colors so as to install correctly.
