Fuel System Monitor
Test requirements/procedure1. All of the following requirements should be met when carrying out a drive test.
1. Engine coolant temperature: 80° C - 97° C (176 - 207° F) (Engine fully warmed up)
2. Atmospheric temperature: -10° C (14° F) or more, 60° C (140° F) or less.
3. Condition of A/T:
- Selector lever position: D range
- Overdrive switch: ON
- Pattern select switch: OFF
2. One trip monitor will be completed by driving according to the steps below (from start to switch off). It will take 35 minutes.
*1: After warming up the engine, turn off the ignition switch.
*2: Start the engine, and accelerate to 89 - 97 kph (55 - 60 mph).
<>3: Drive between 89 and 97 kph (55 and 60 mph) for 30 minutes or more during monitor. Moreover, do not drive the vehicle at the constant speed range for 120 seconds or more. (Accelerate or decelerate lightly within the 120 seconds. Brake may be applied, but avoid decelerating or accelerating suddenly).
*4: Decelerate and stop the vehicle. Then turn off the ignition switch.

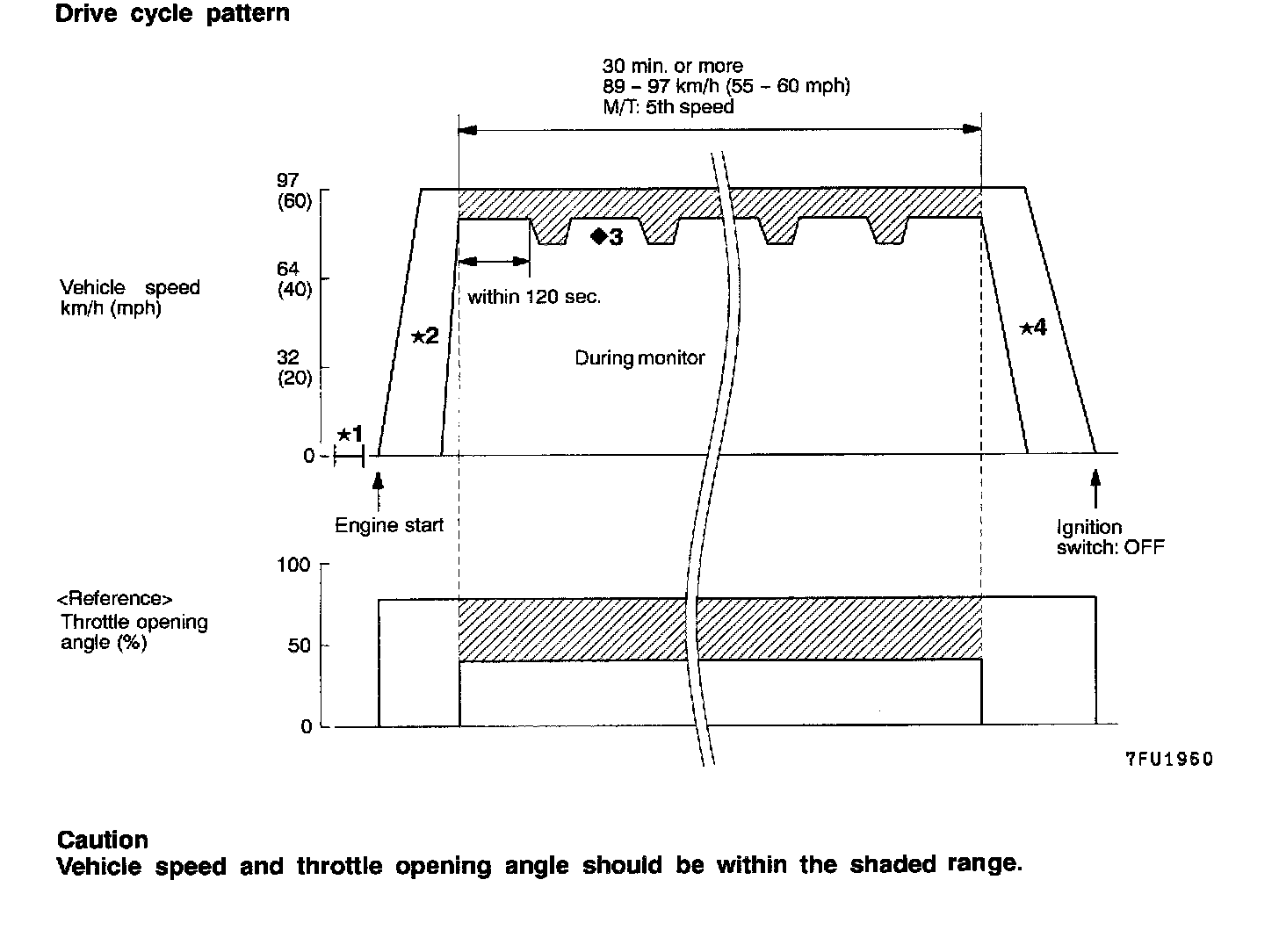

Drive Cycle Pattern:
