Control Unit
Control Unit Location Overall View:

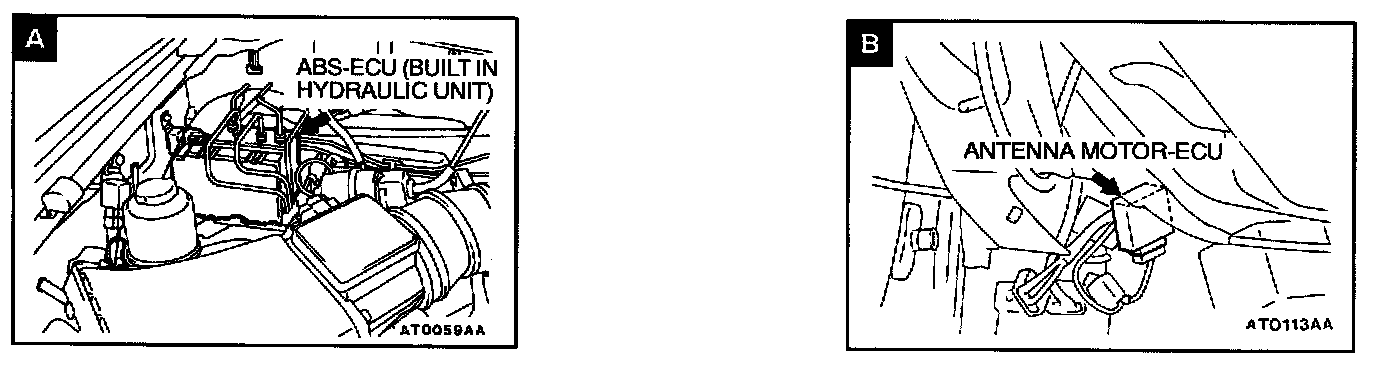

Control Unit Location View A-B:
Control Unit Location View C-K:
NAME SYMBOL4WD Indicator-ECU
F
ABS-ECU
A
Antenna Motor-ECU
B
Auto-Cruise Control-ECU
H
Automatic Compressor-Controller
E
Defogger Timer
I
ETACS-ECU
C
Fuel Pump Control Module
F
Immobilizer-ECU
I
Keyless Entry Receiver-ECU
K
SRS-ECU
D
Sunroof-ECU
J
Powertrain Control Module
G
