Suspension - Alignment Toe In Specification Incorrect

No: TSB-00-33A-002

Date: October, 2000

MODEL: 2000 Montero Sport

SUBJECT:
TOE-IN SPECIFICATION - SERVICE MANUAL REVISION

[TSB Revision TSB-00-33A-002]

PURPOSE
The toe-in alignment specification is incorrectly printed on the back cover of the 2000 Montero Sport service manual. The correct standard value for toe-in is 3.5 +/- 3.5 mm (0.14 +/- 0.14 inch). This specification is printed correctly on page 33A-3 of the service manual.

Write the TSB revision number of this bulletin in the "TSB Revision" Box at the bottom of the affected service manual pages.

AFFECTED VEHICLES
2000 Montero Sport

AFFECTED SERVICE MANUAL PAGE

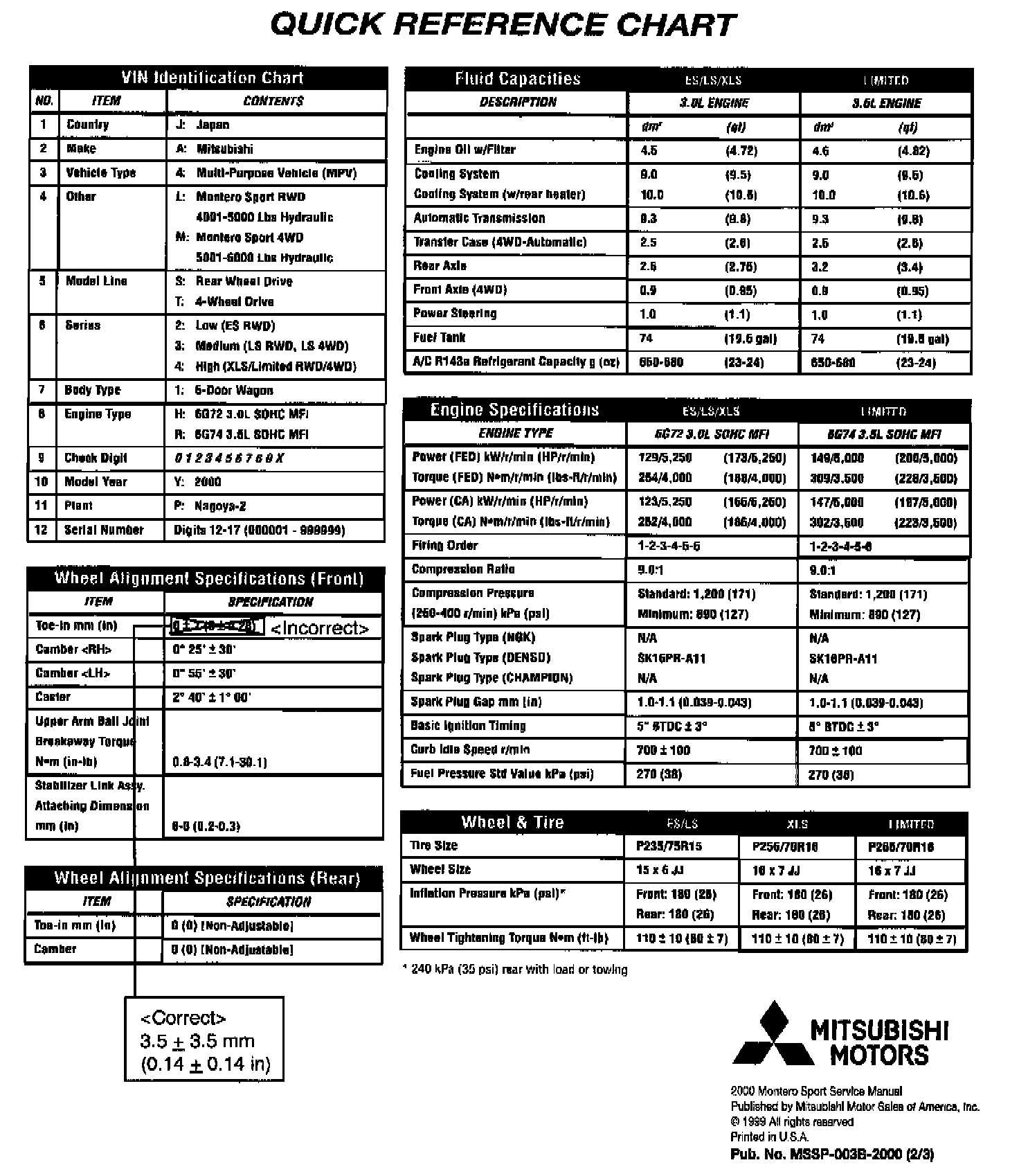

2000 Montero Sport, back covers of Volume 1, Volume 2 and Volume 3





2000 Montero Sport, back cover
