Specifications
>>
Mechanical Specifications
>>
Differential Assembly
>>
System Specifications
>>
Front Axle
>>
Service Specifications
Service Specifications

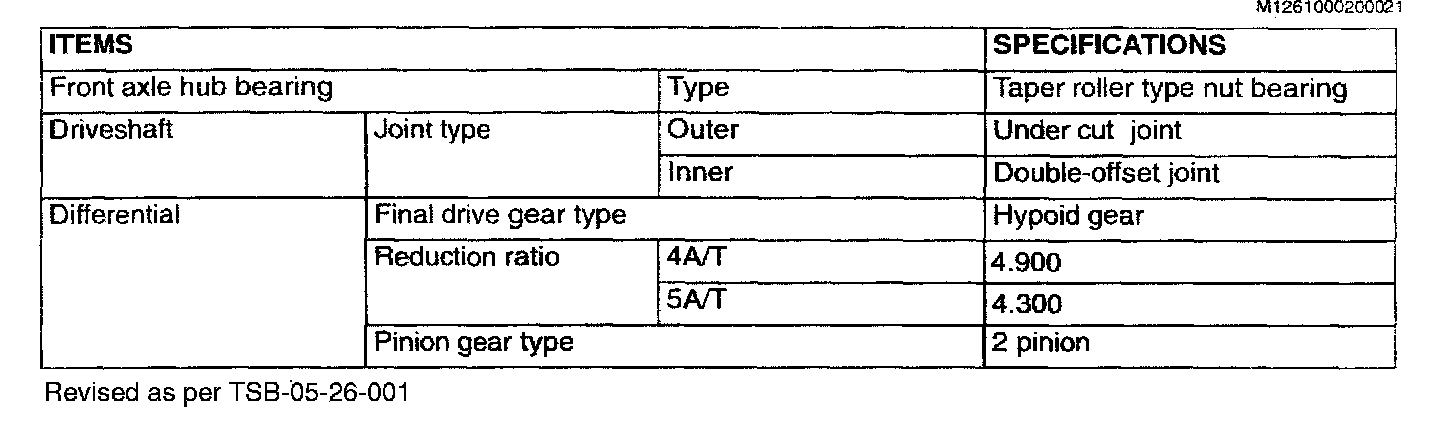

4WD Front Differential Dimensions:

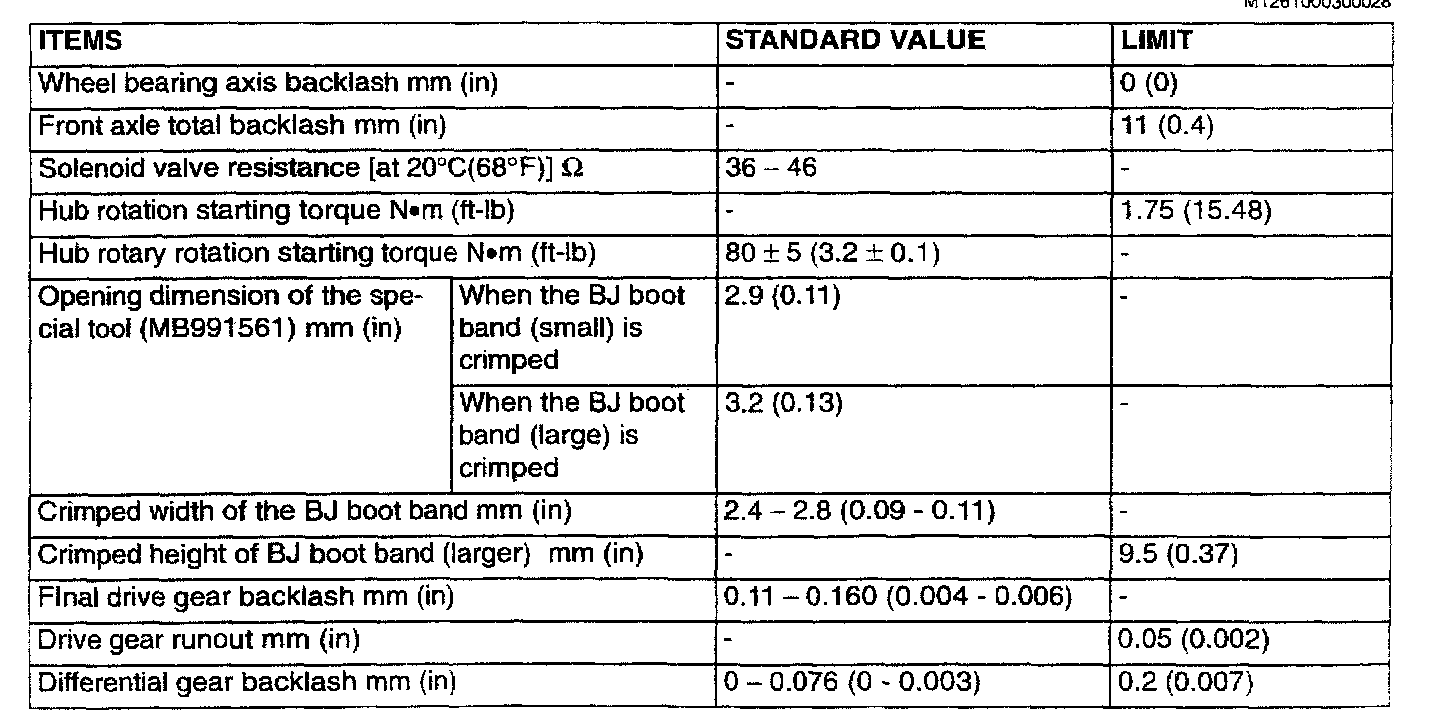

4WD Front Differential Standard Values & Limits:

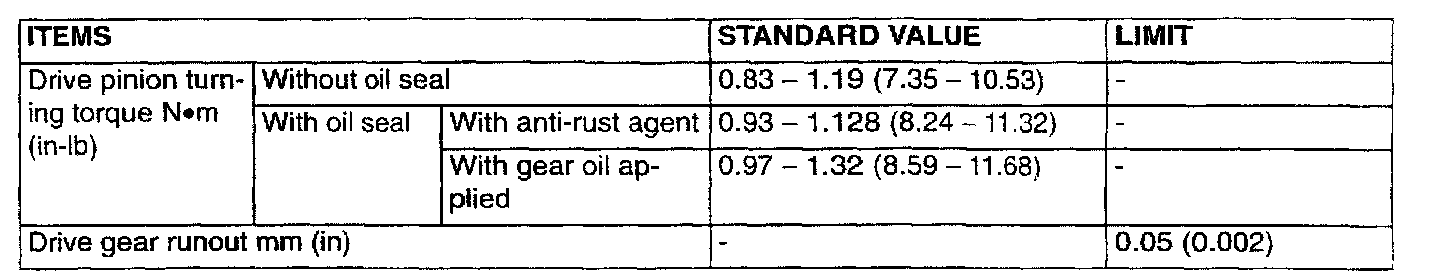

4WD Front Differential Drive Pinion Standard Values & Limits:
