Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
2001
>>
Montero LTD 4WD V6-3.5L SOHC
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Differential Assembly
>>
System Specifications
>>
Rear Axle
>>
Service Specifications
Service Specifications

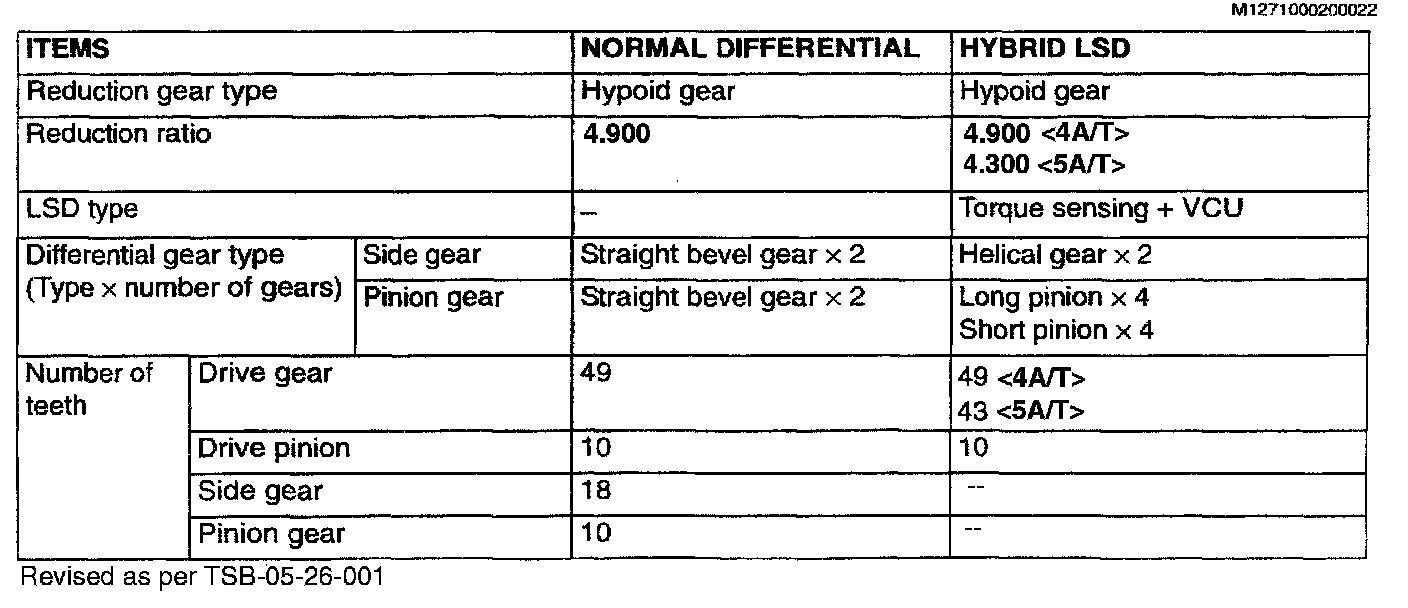

RWD/4WD Rear Differential Dimensions:

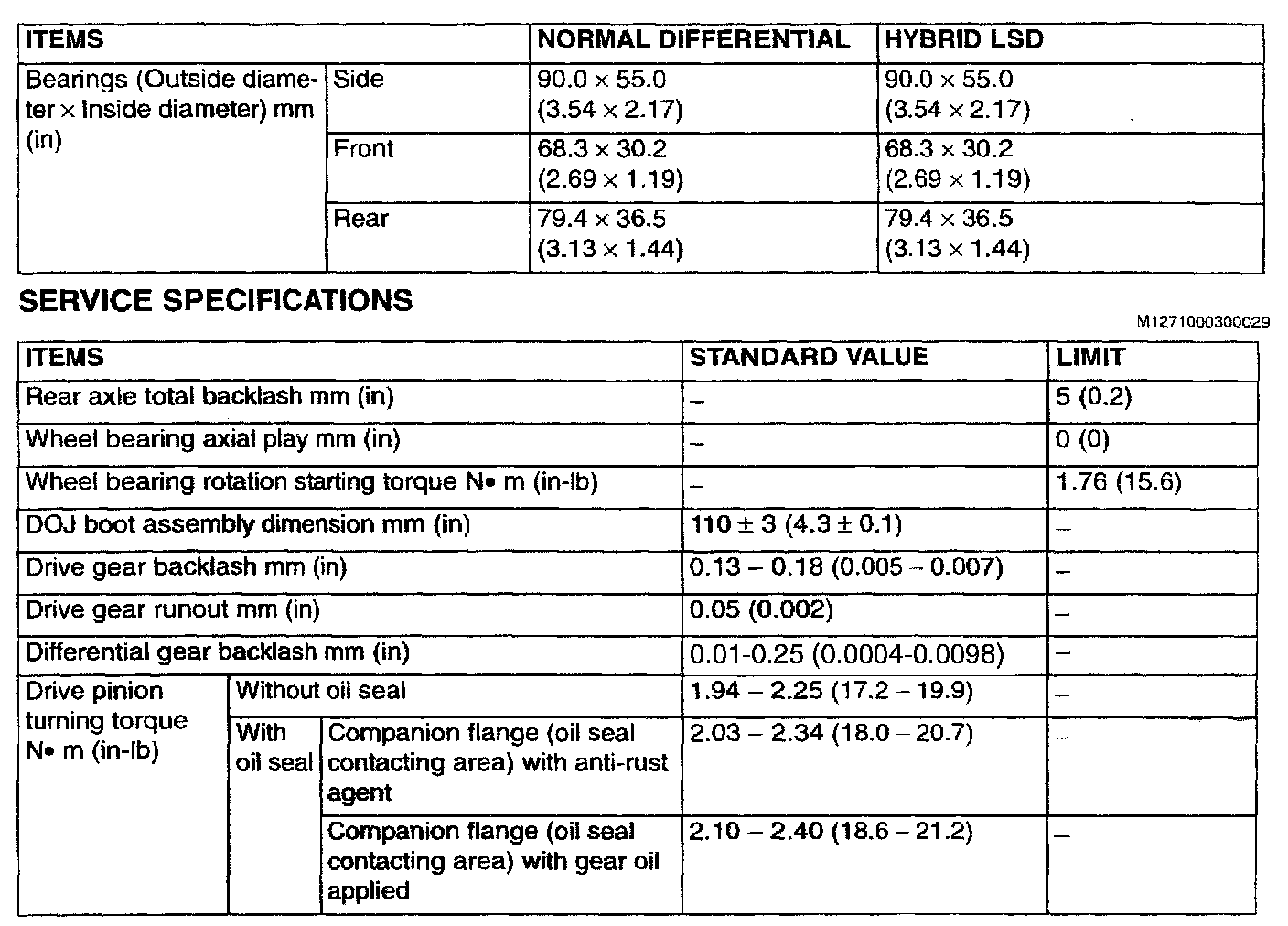

Rwd/4WD Rear Differential Bearings & Standard Values & Limits (Updated By TSB# 09-27-001):
