Alignment: Testing and Inspection

CHECK

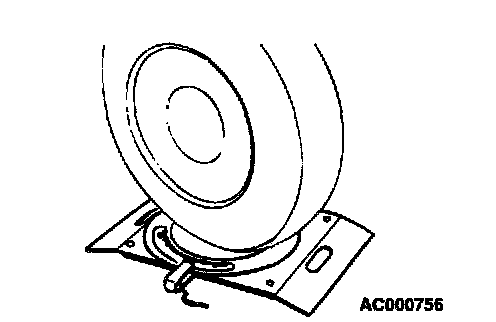

1. Place the front wheel on a turning radius gauge and measure the steering angle.

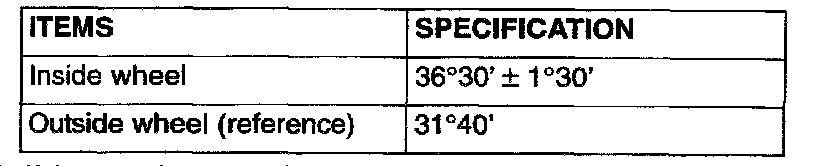

Standard value:

2. If the steering angle is not within the standard value, adjust the toe-in.
Standard value: 2.5 ± 2.5 mm (0.1 ± 0.1 inch)

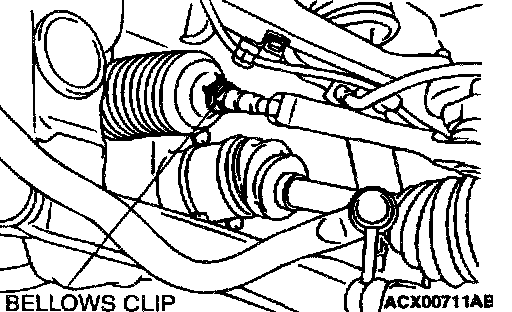

3. Adjust the toe-in by undoing the clip and turning the left and right tie rod turnbuckles by the same amount (in opposite directions).
