Computers and Control Systems: Diagrams

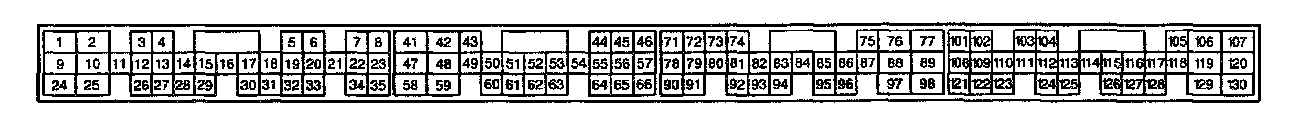

PCM Connector Terminal Arrangement:

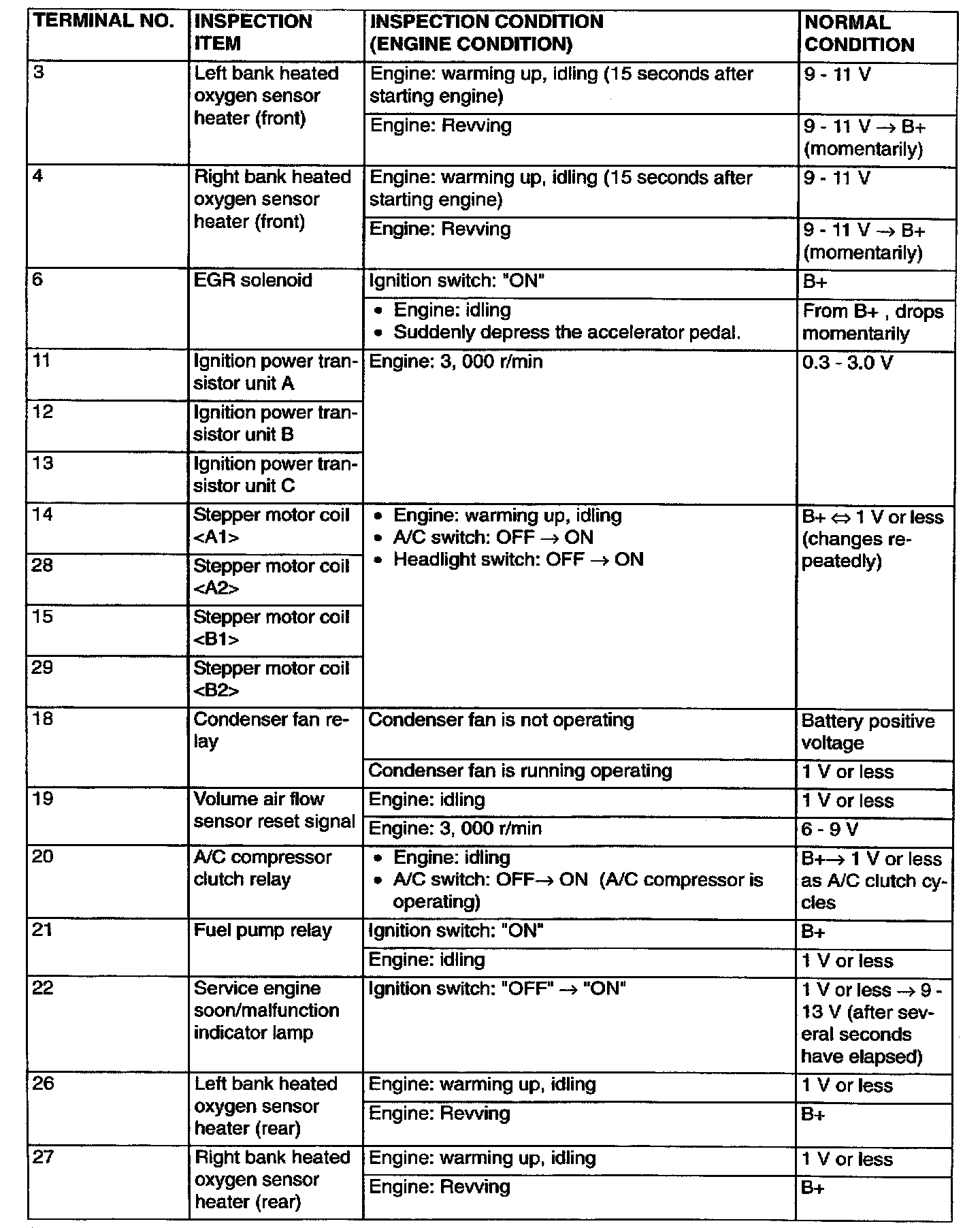

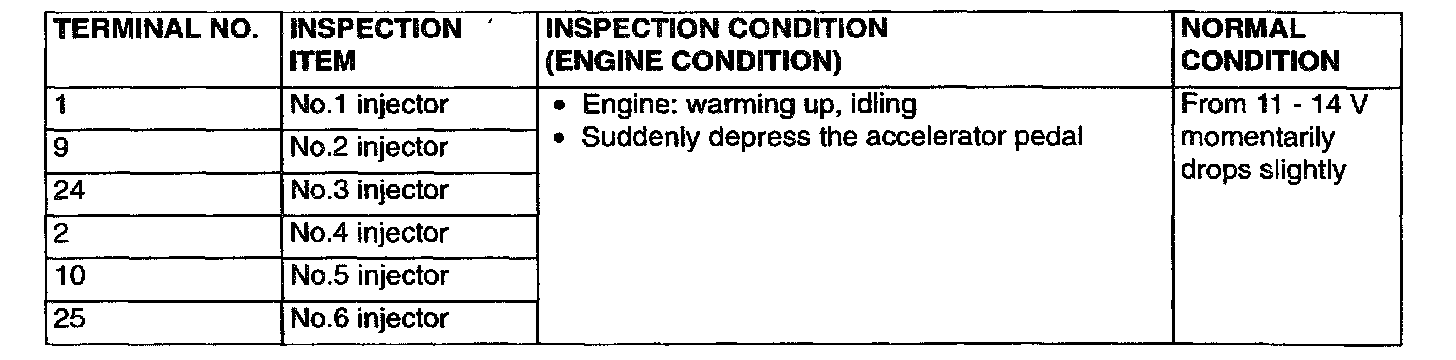

Terminal Voltage Check Chart - Part 1:

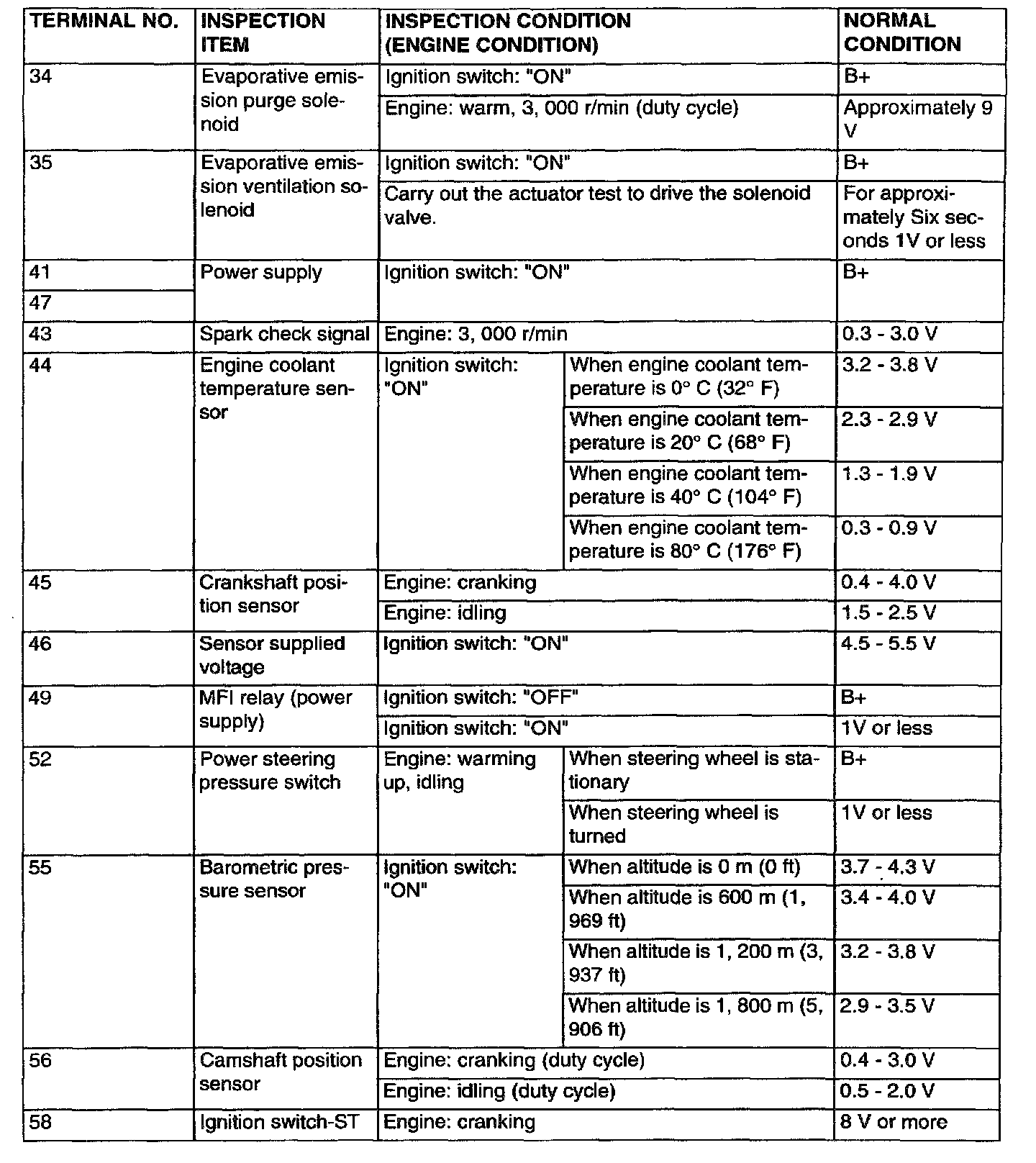

Terminal Voltage Check Chart - Part 2:

Terminal Voltage Check Chart - Part 3:

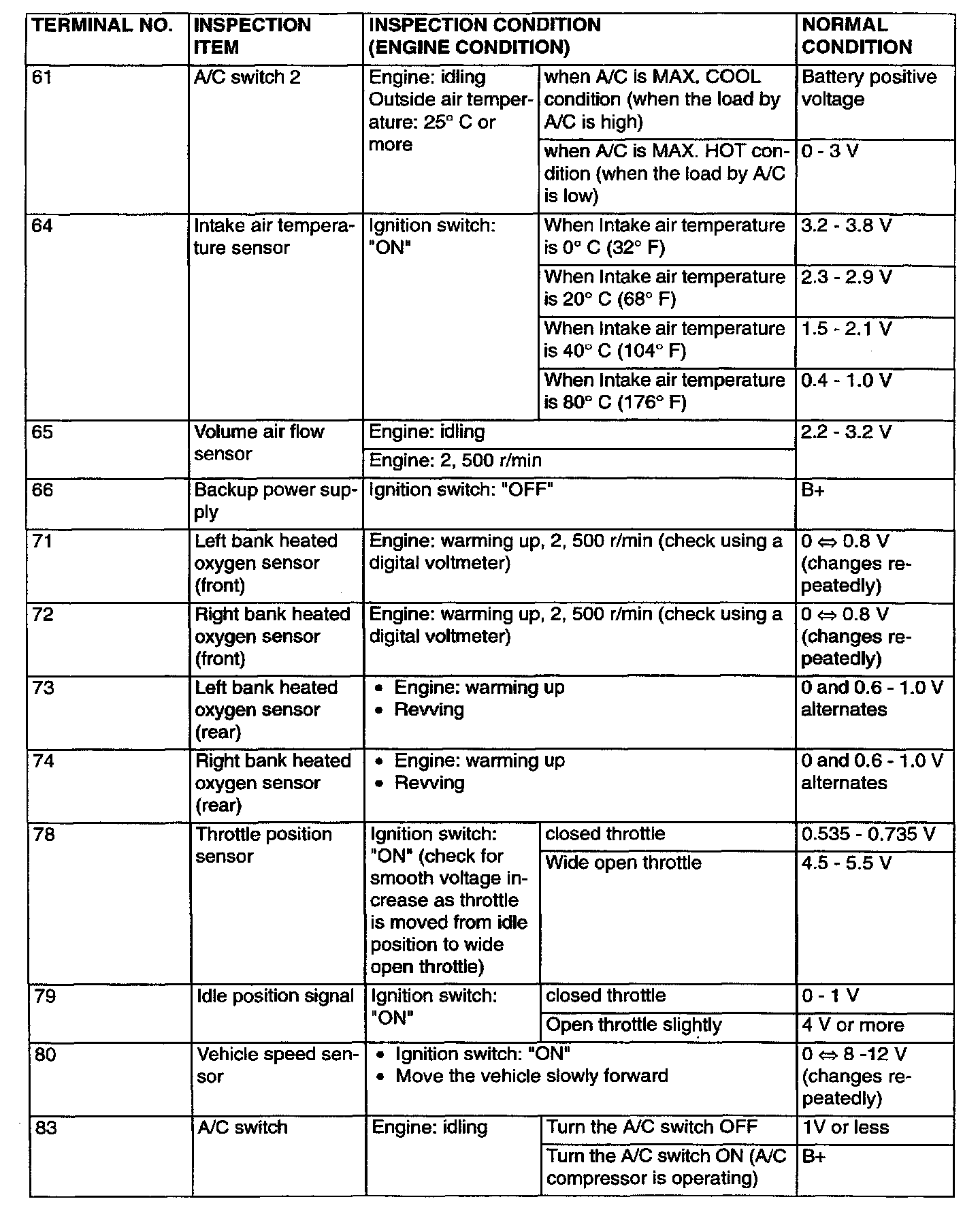

Terminal Voltage Check Chart - Part 4:

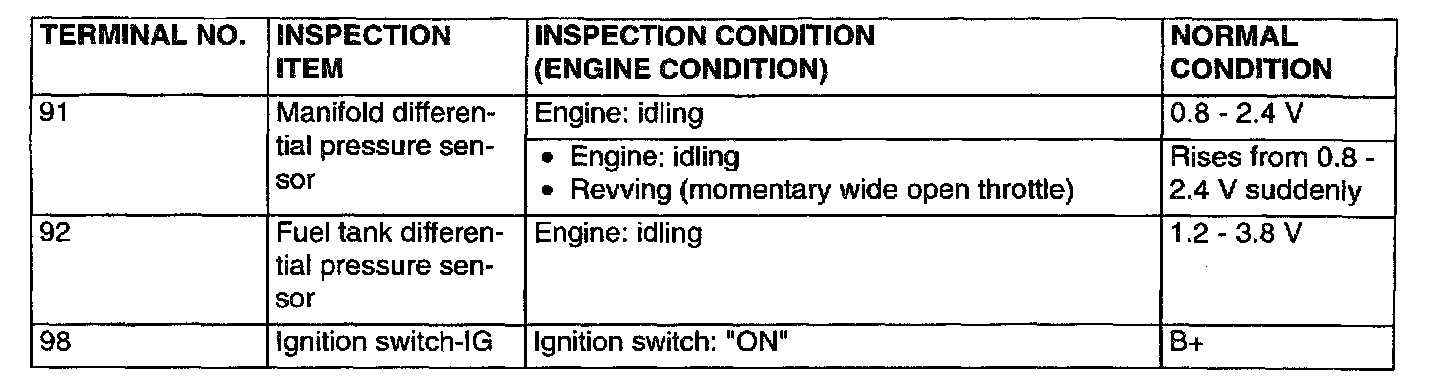

Terminal Voltage Check Chart - Part 5:
