Data List and Actuator Test Reference Table

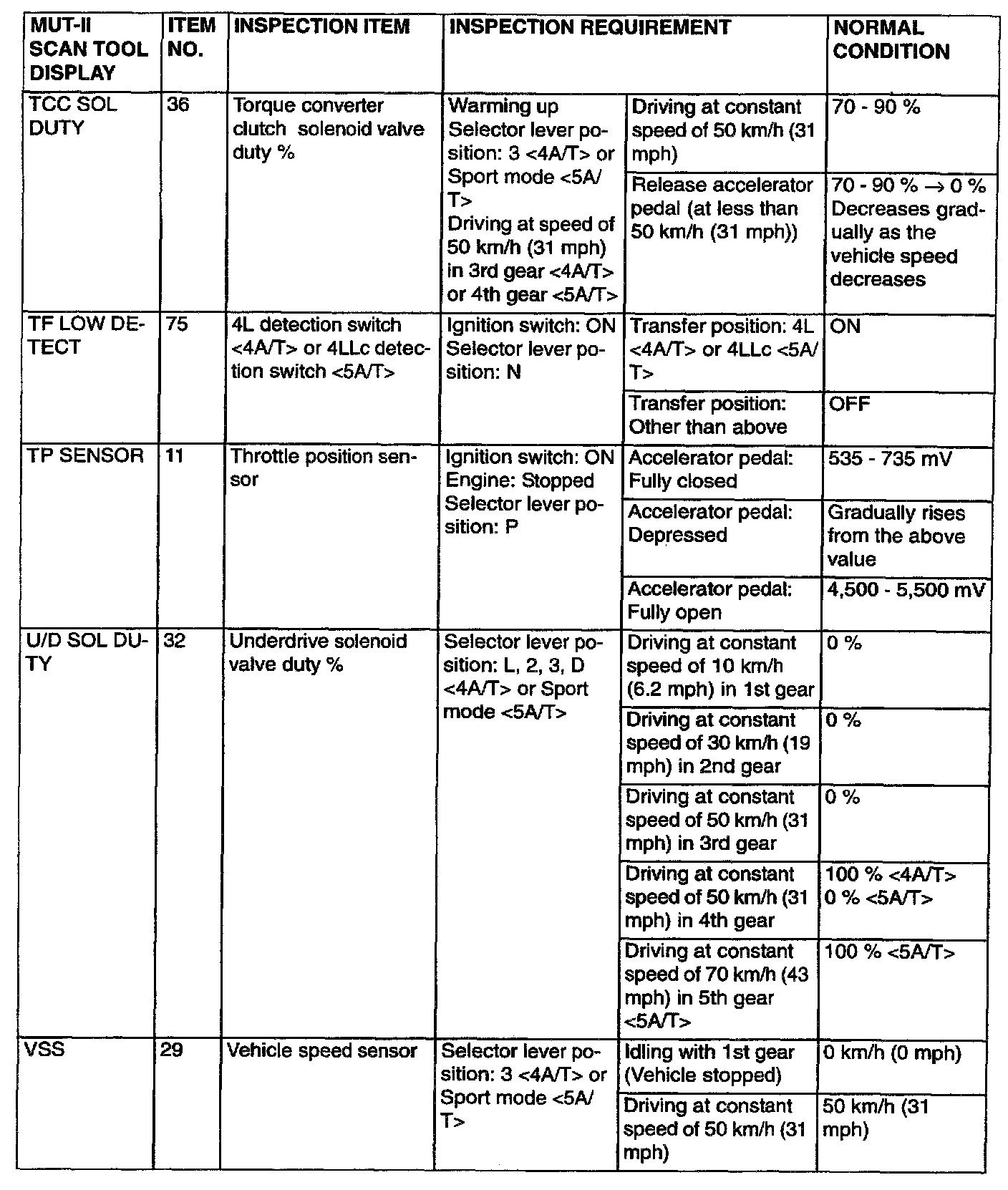

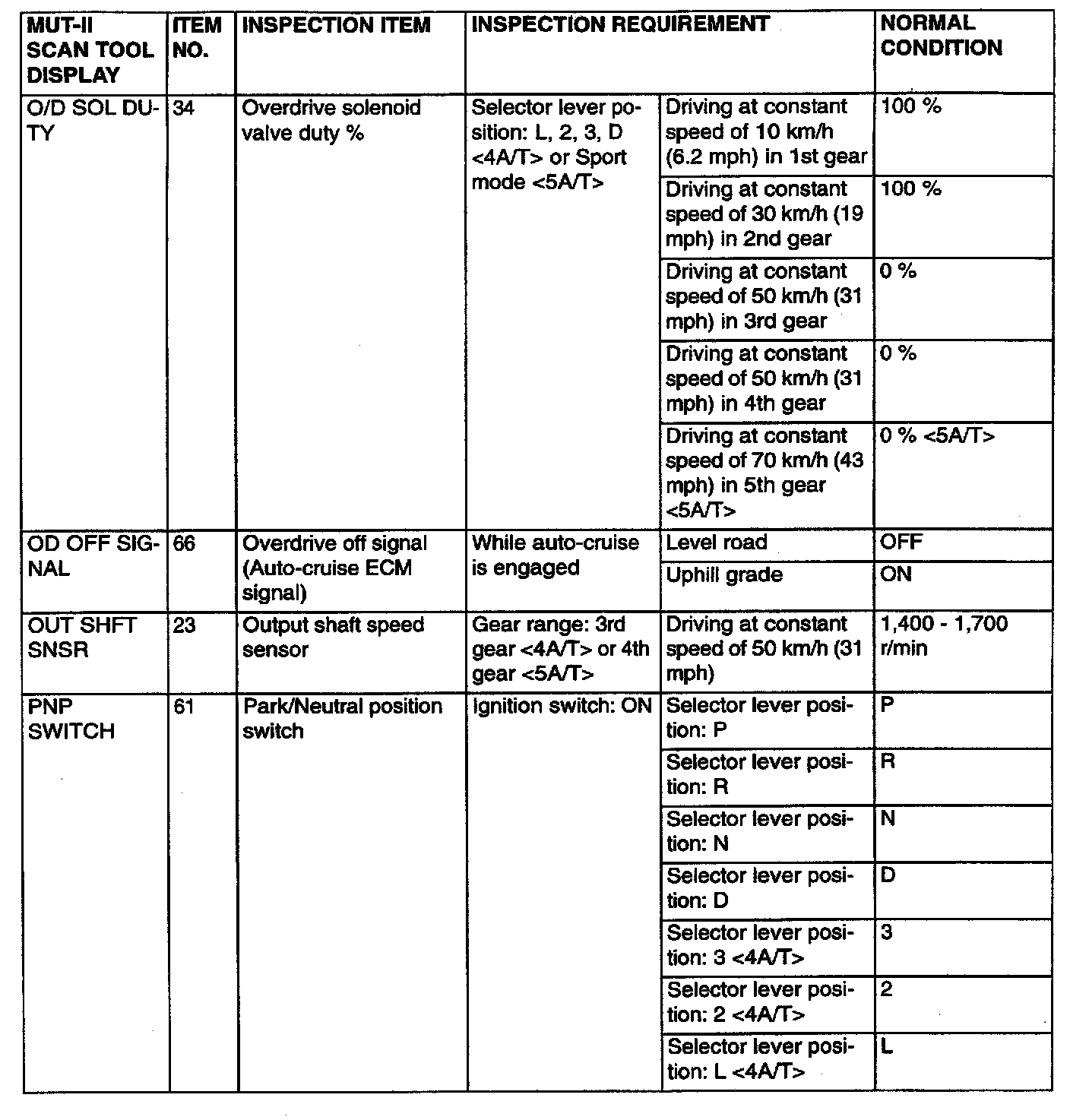

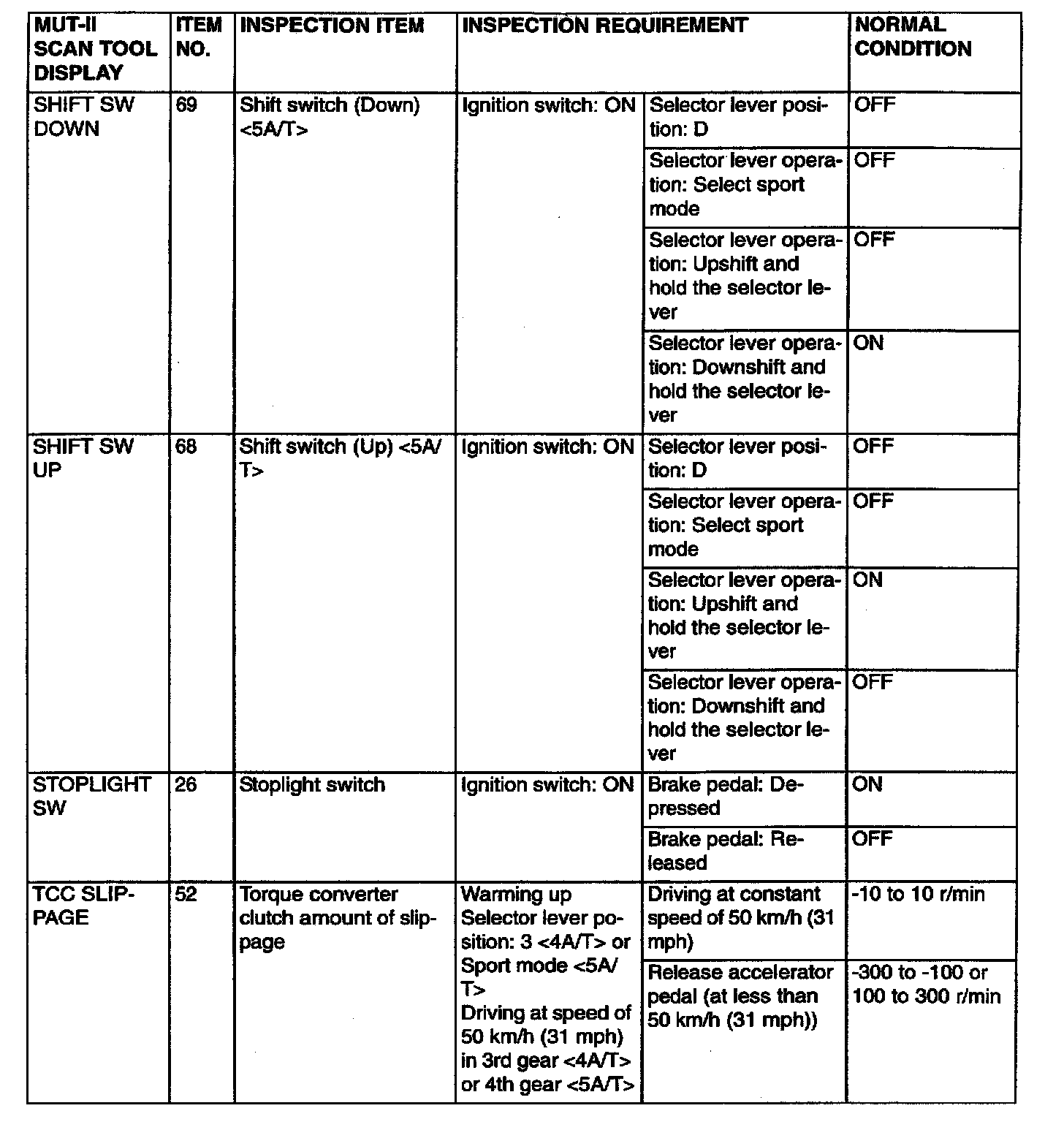

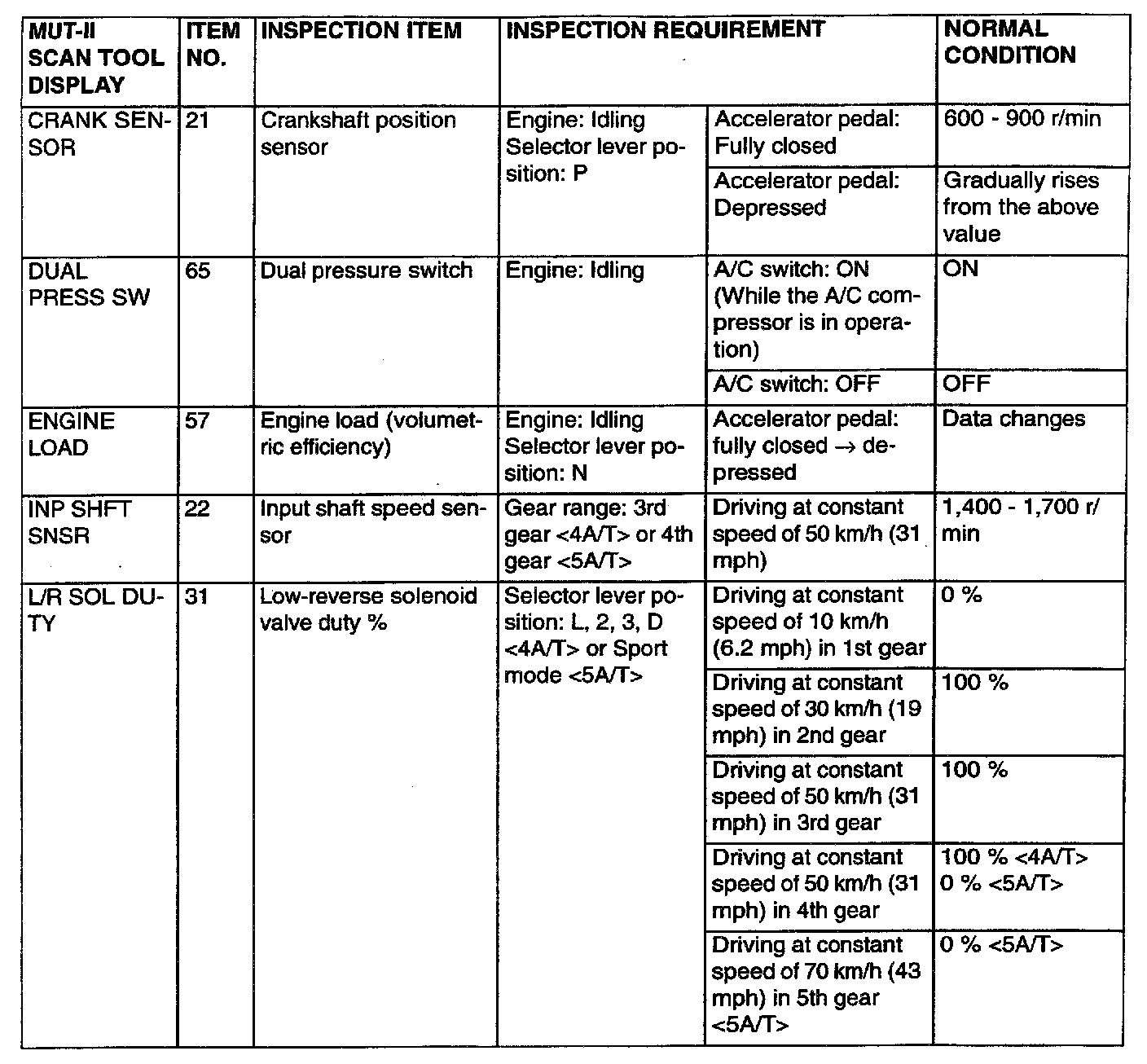

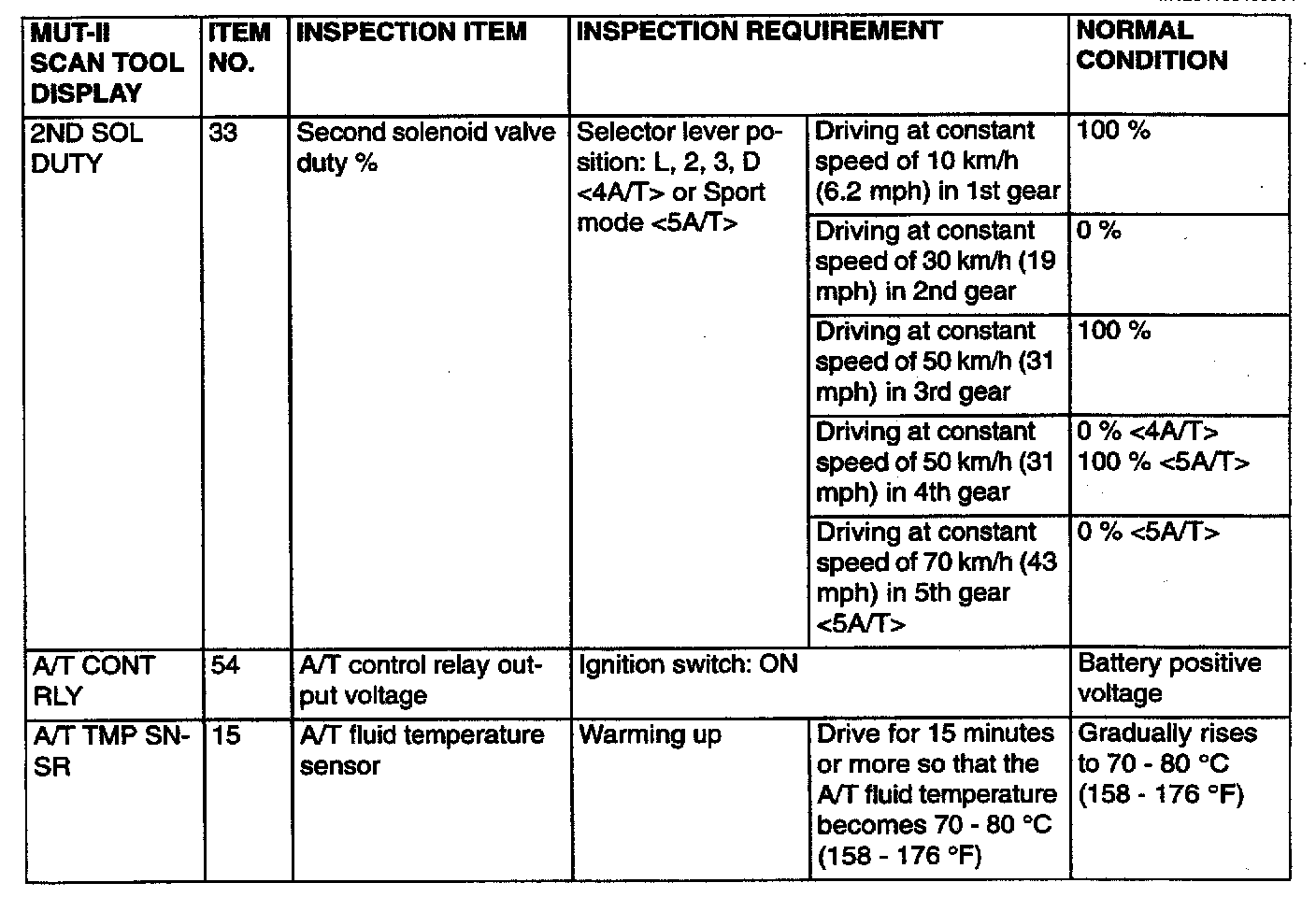

DATA LIST REFERENCE TABLE

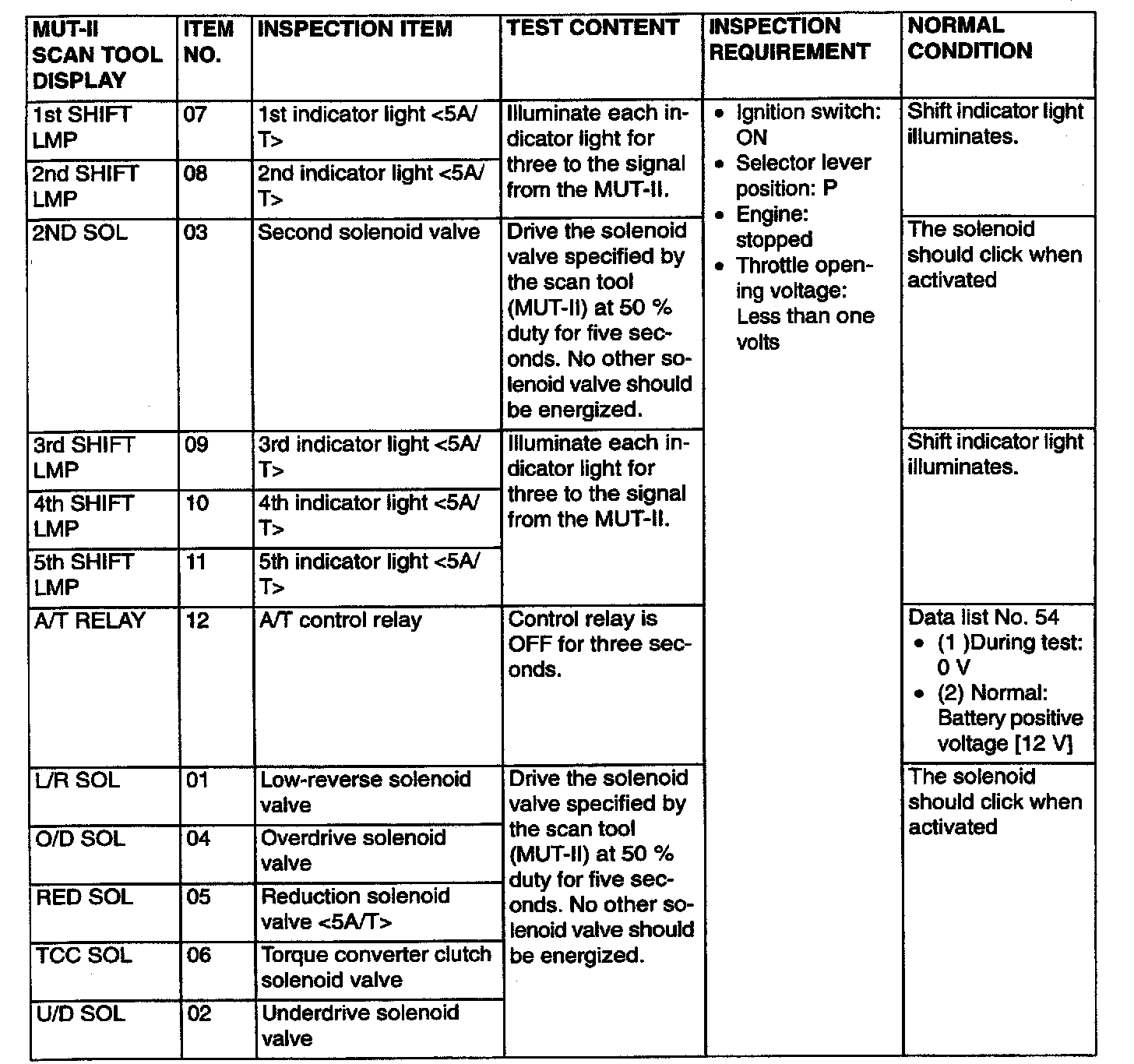

ACTUATOR
TEST REFERENCE TABLE

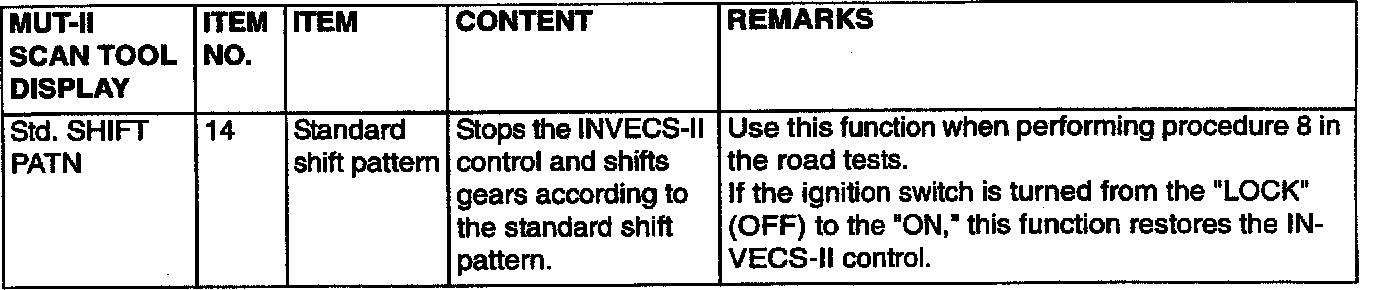

INVECS-II CANCEL COMMAND
