Engine Control Module: Diagrams

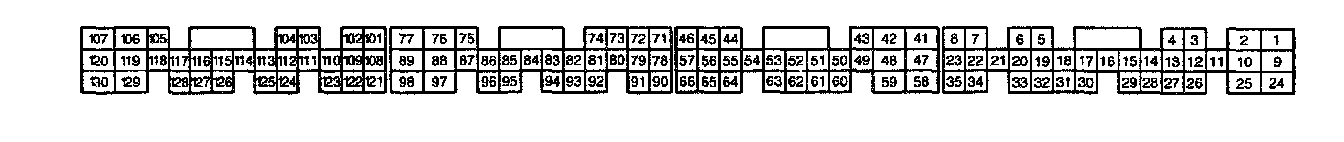

PCM Harness Side Connector Terminal Arrangement:

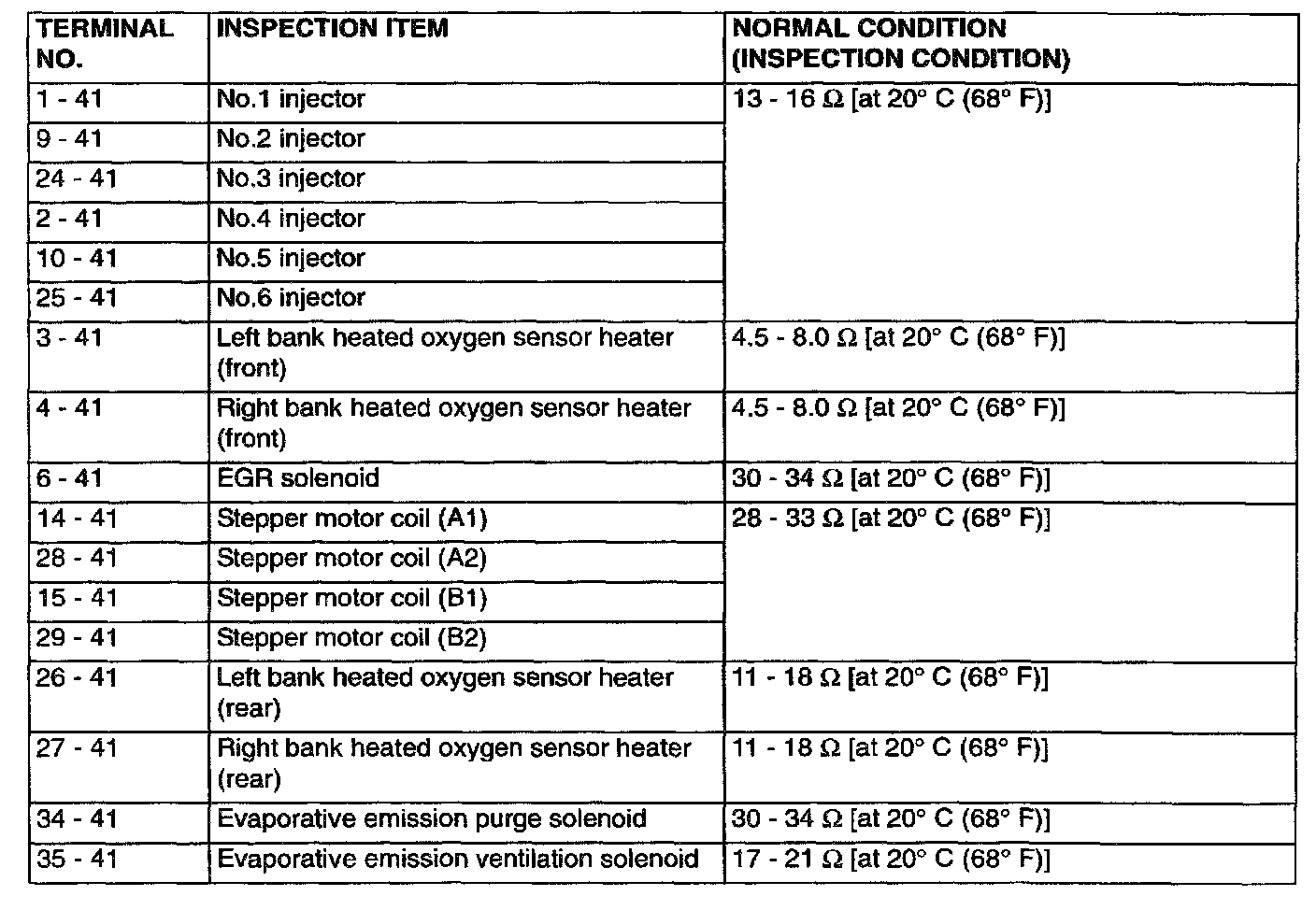

Terminal Resistance And Continuity Check Chart - Part 1:

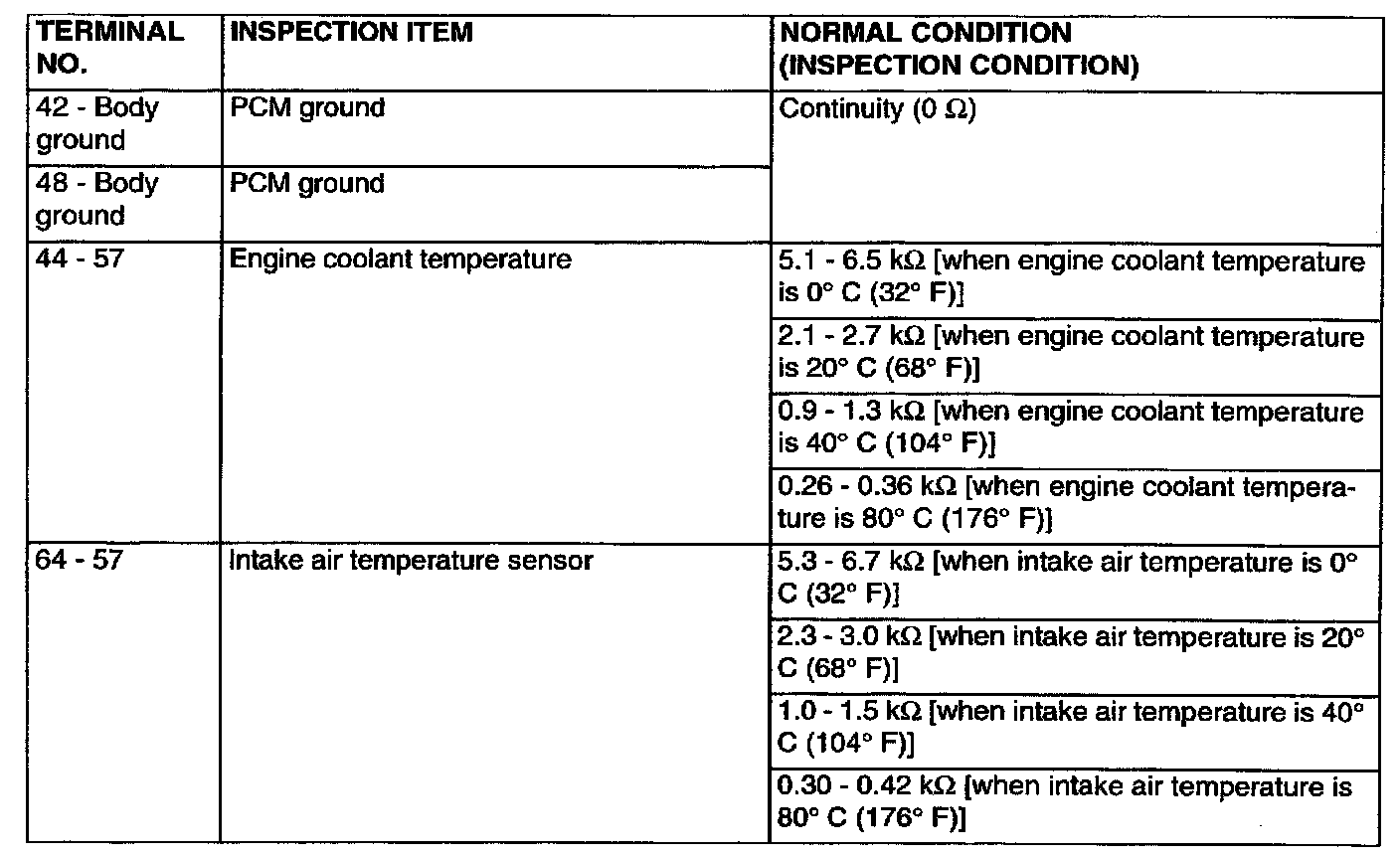

Terminal Resistance And Continuity Check Chart - Part 2:
