System Specifications

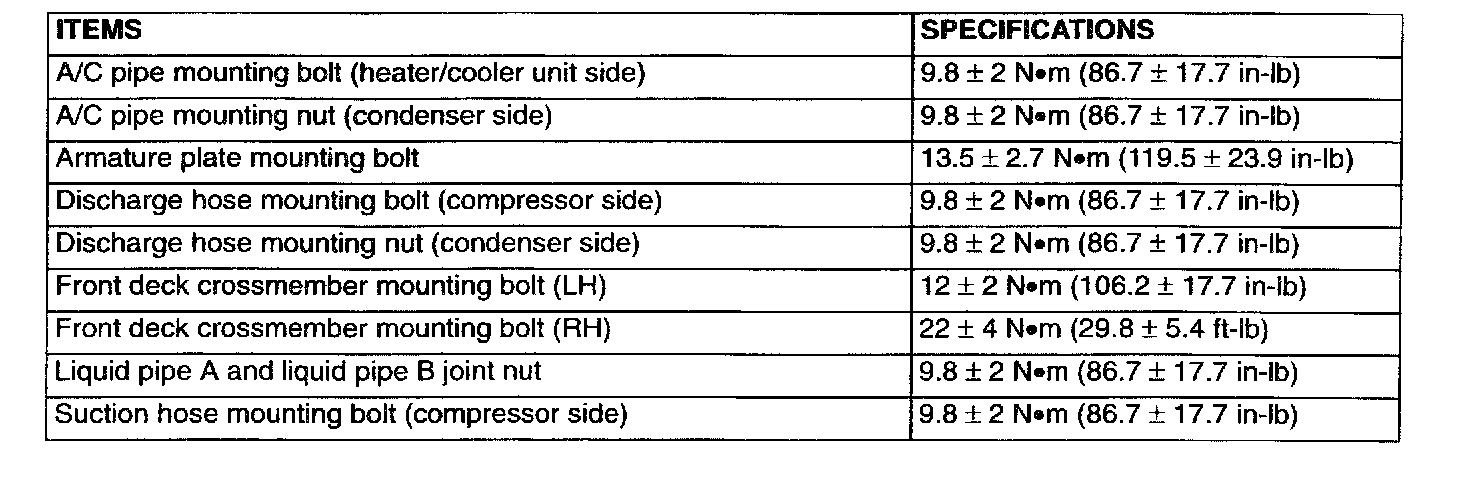

Fastener Tightening Specifications (Manual A/C):

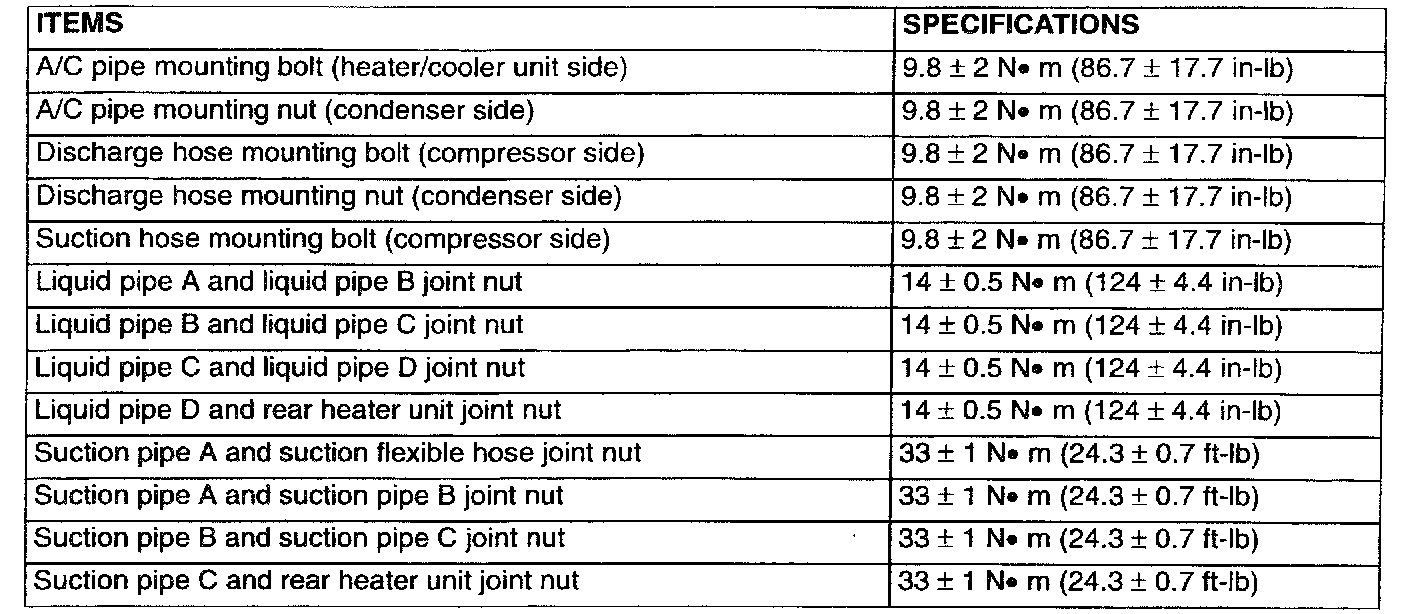

Fastener Tightening Specifications (Automatic A/C):
