Heater Core Temperature Sensor / Switch: Service and Repair

HEATER WATER TEMPERATURE SENSOR

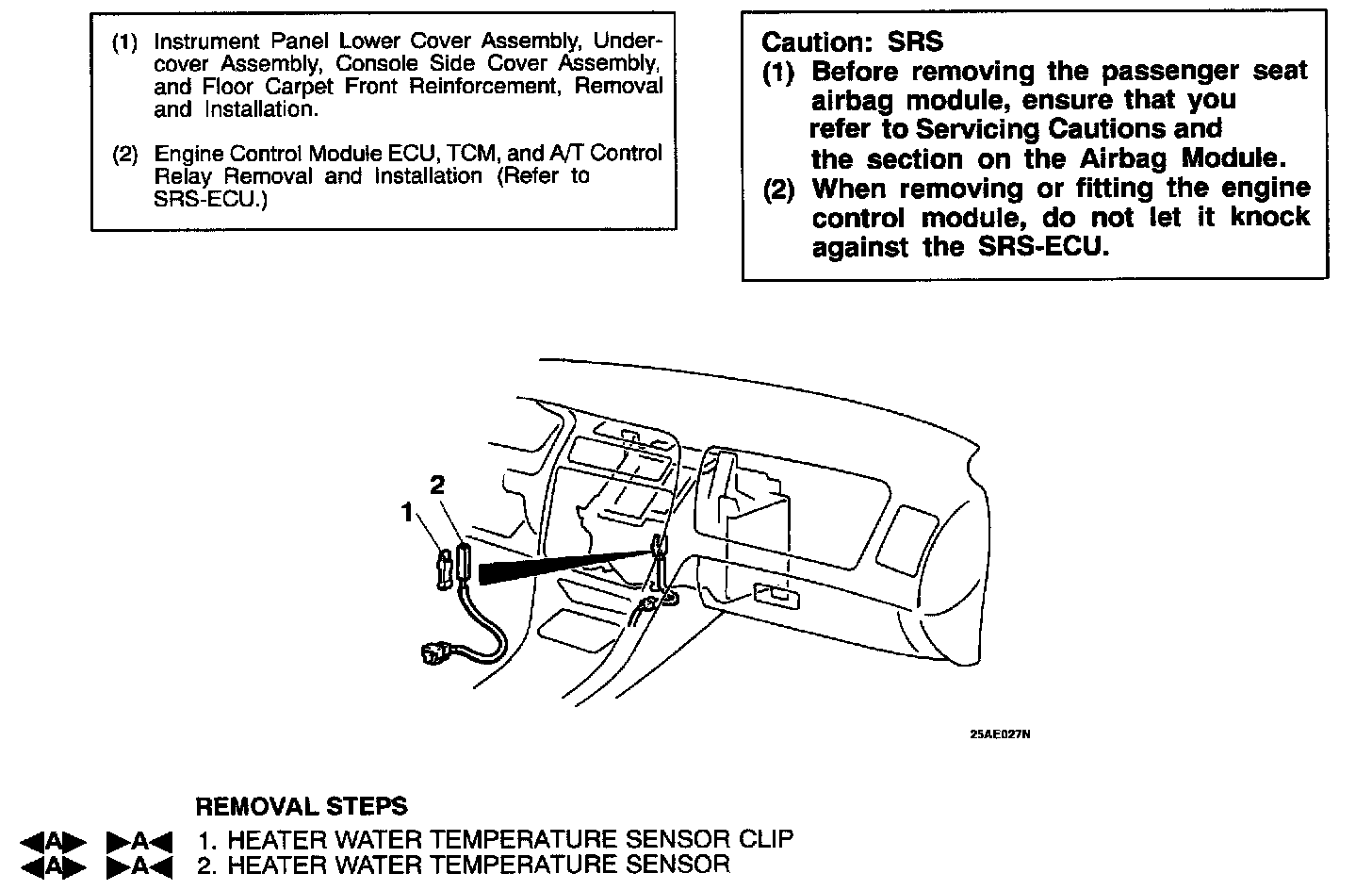

REMOVAL SERVICE POINTS

HEATER WATER TEMPERATURE SENSOR CLIP/HEATER WATER TEMPERATURE SENSOR REMOVAL
Pull out the heater water temperature sensor clip from the base of the heater unit, and remove the heater water temperature sensor from the heater unit.

INSTALLATION SERVICE POINT

>A< HEATER WATER TEMPERATURE SENSOR/HEATER WATER TEMPERATURE SENSOR CLIP INSTALLATION
Insert the heater water temperature sensor into the mounting hole at the base of the heater unit, and secure by plugging in the heater water temperature sensor clip.
