Axle Shaft Assembly, Constant Velocity Type

DRIVE SHAFT REASSEMBLY REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS

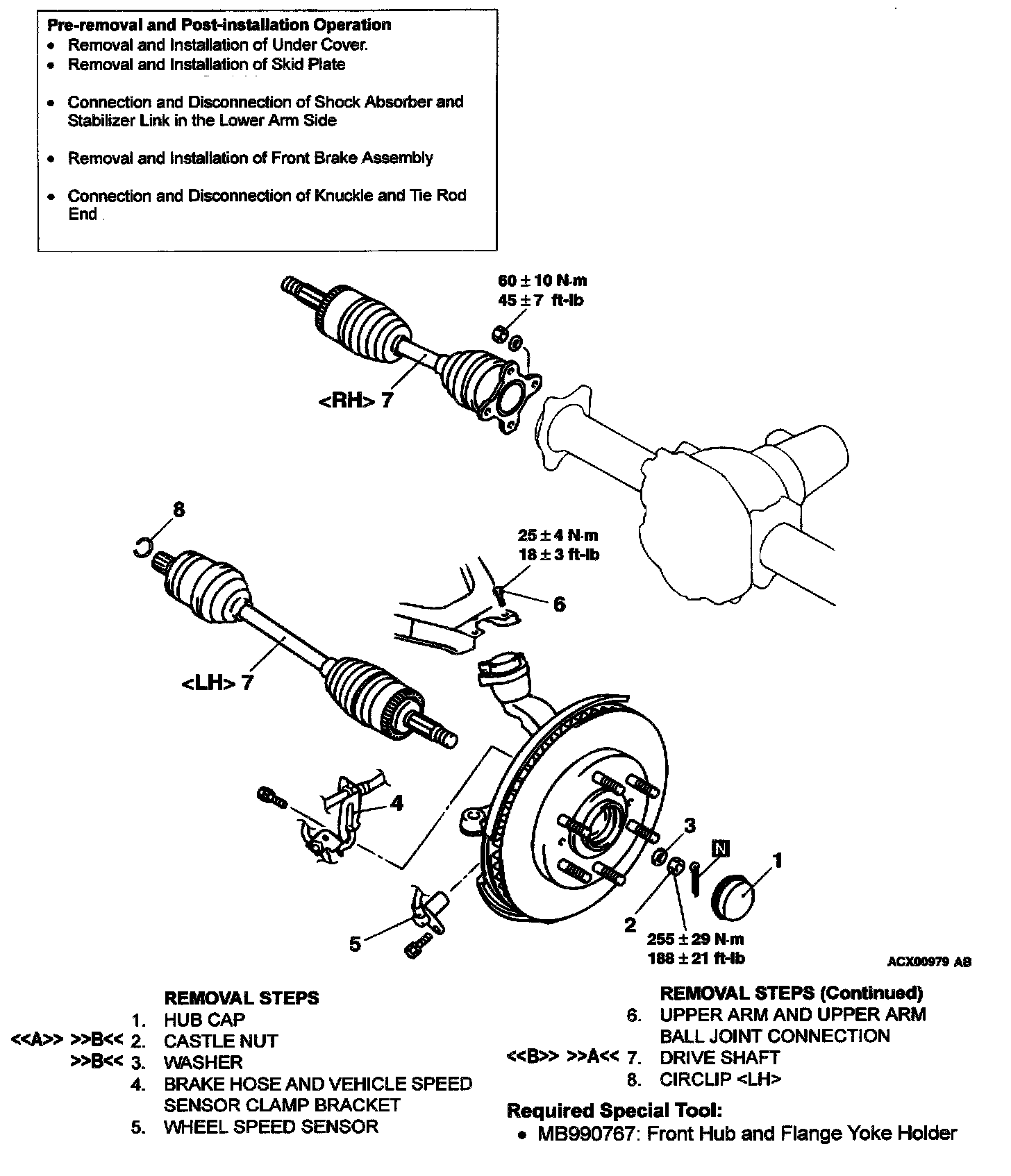

Replacement

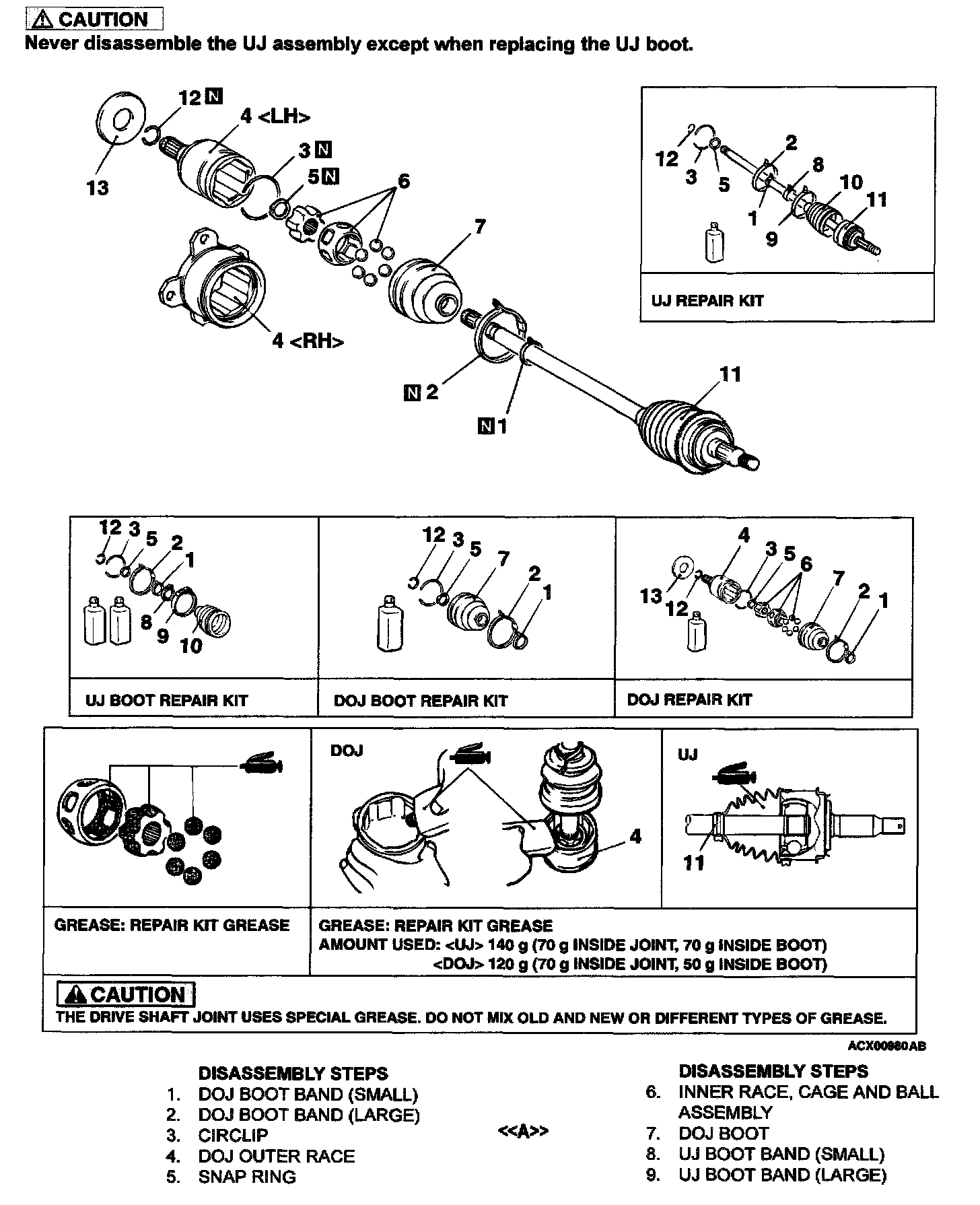

Overhaul





Part 1 of 2

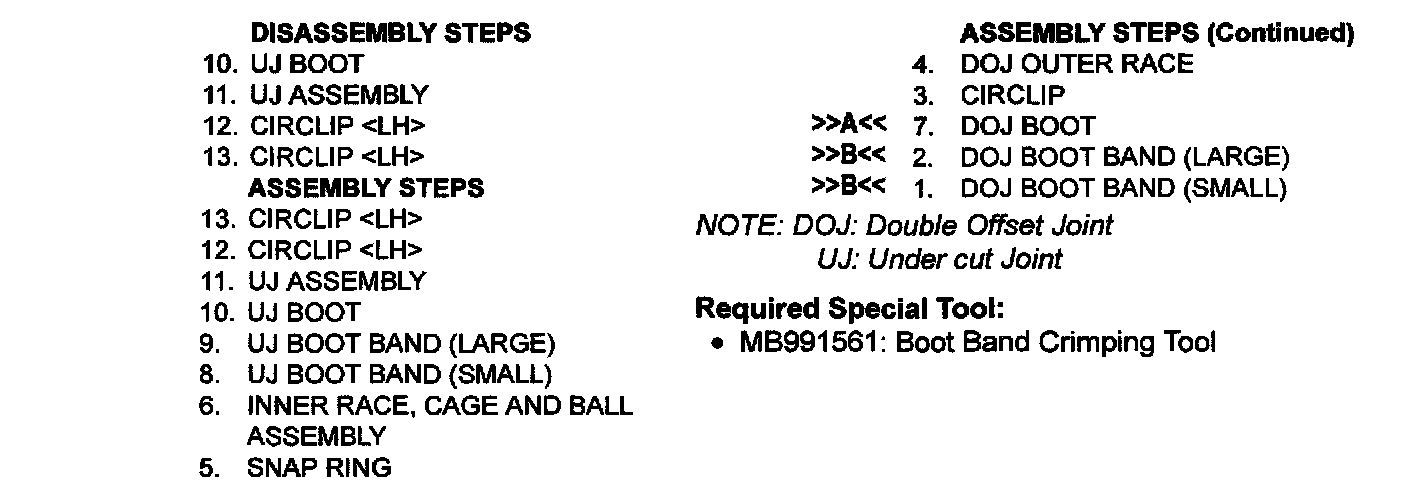

Part 2 of 2
