System Diagram

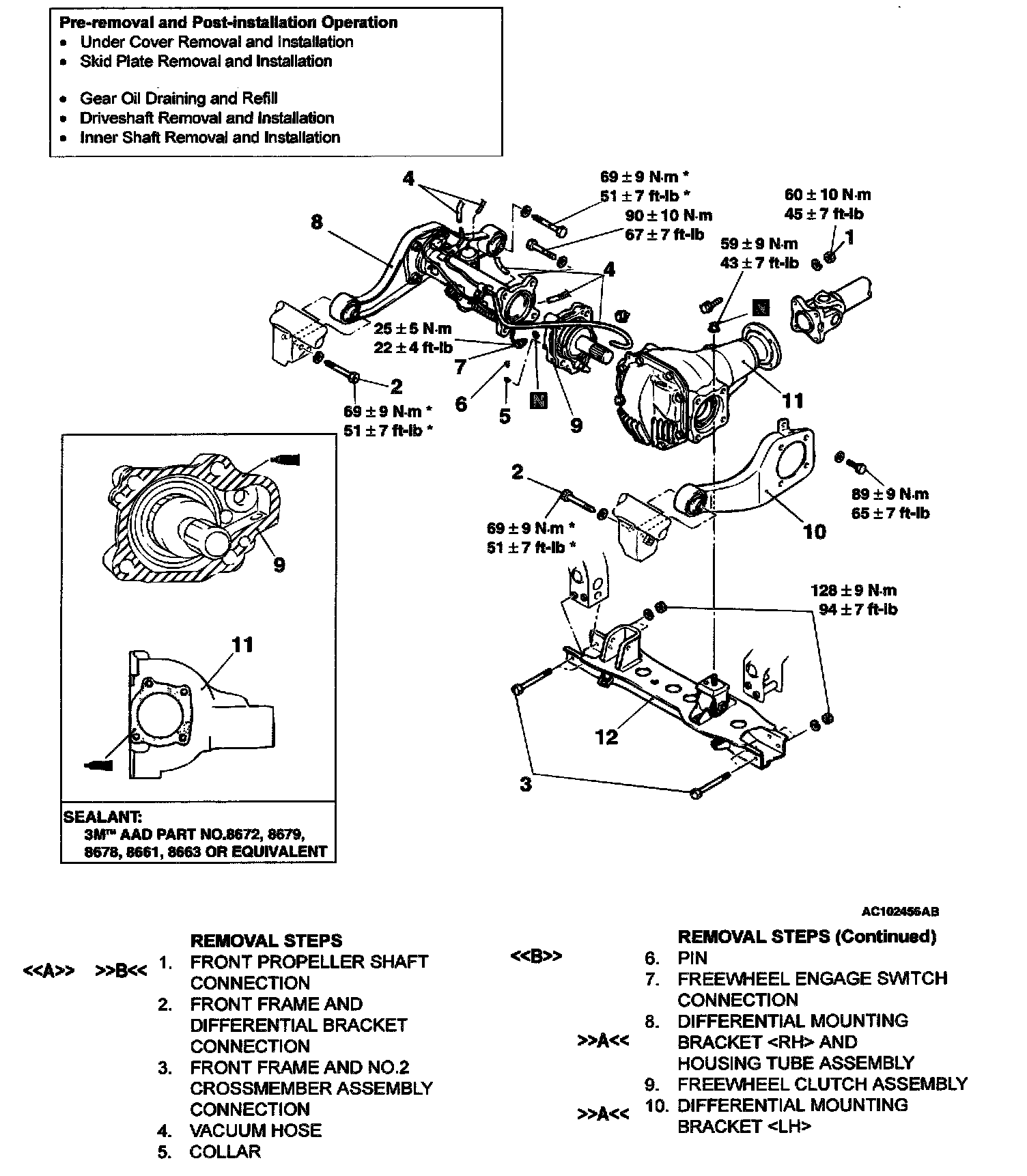

DIFFERENTIAL CARRIER AND FREE WHEELING CLUTCH REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS

Replacement





Part 1 of 2





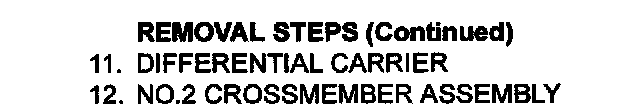

Part 2 of 2

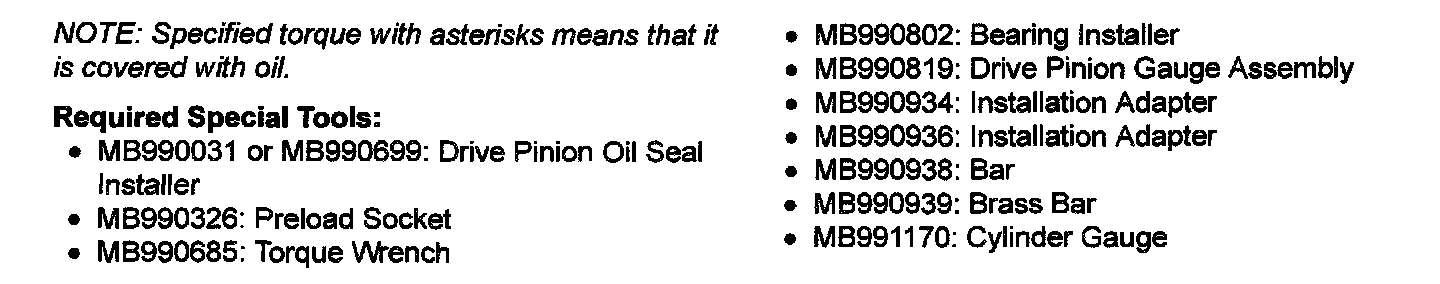

Overhaul

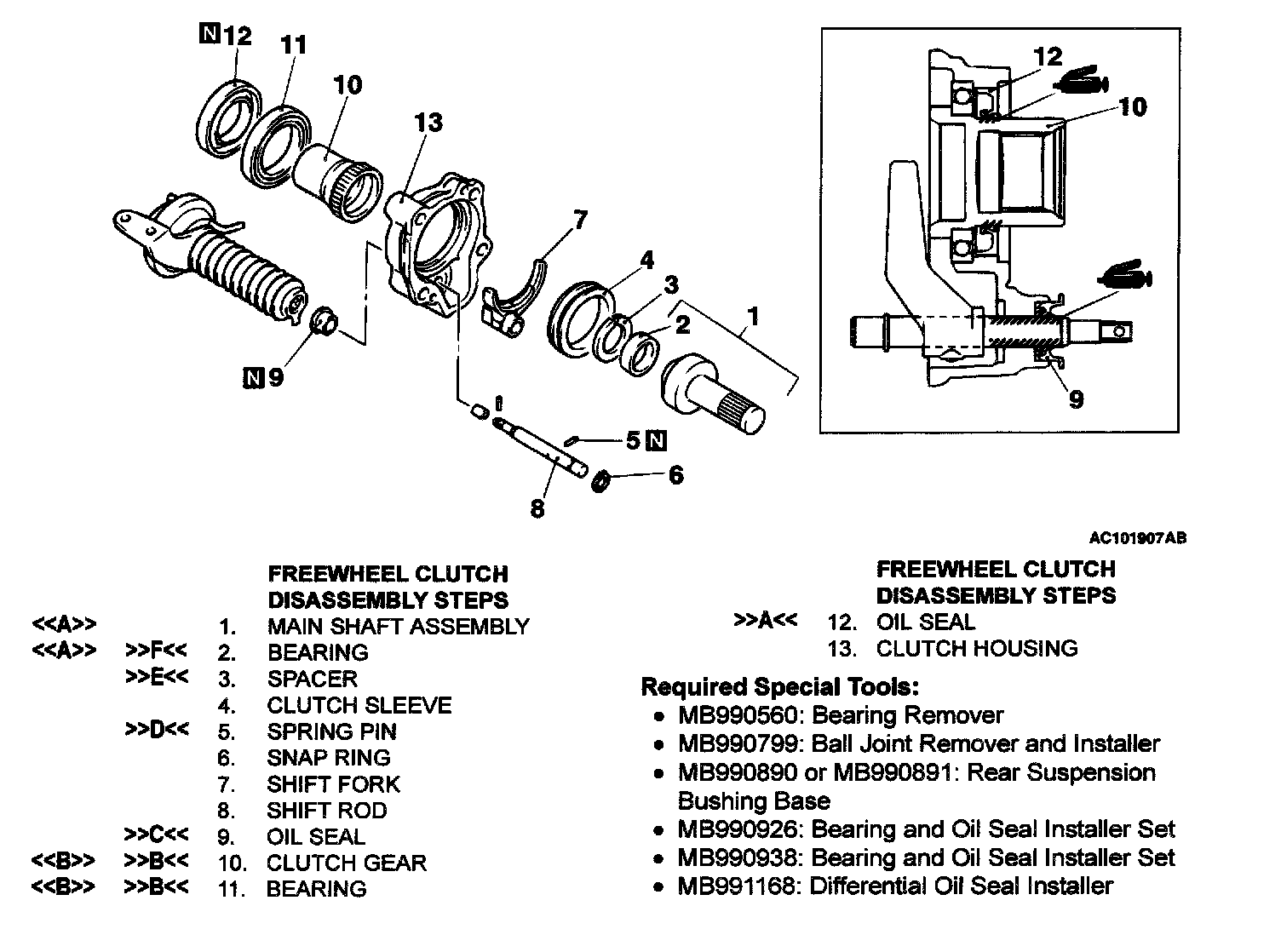

FREE WHEELING CLUTCH

DIFFERENTIAL CARRIER

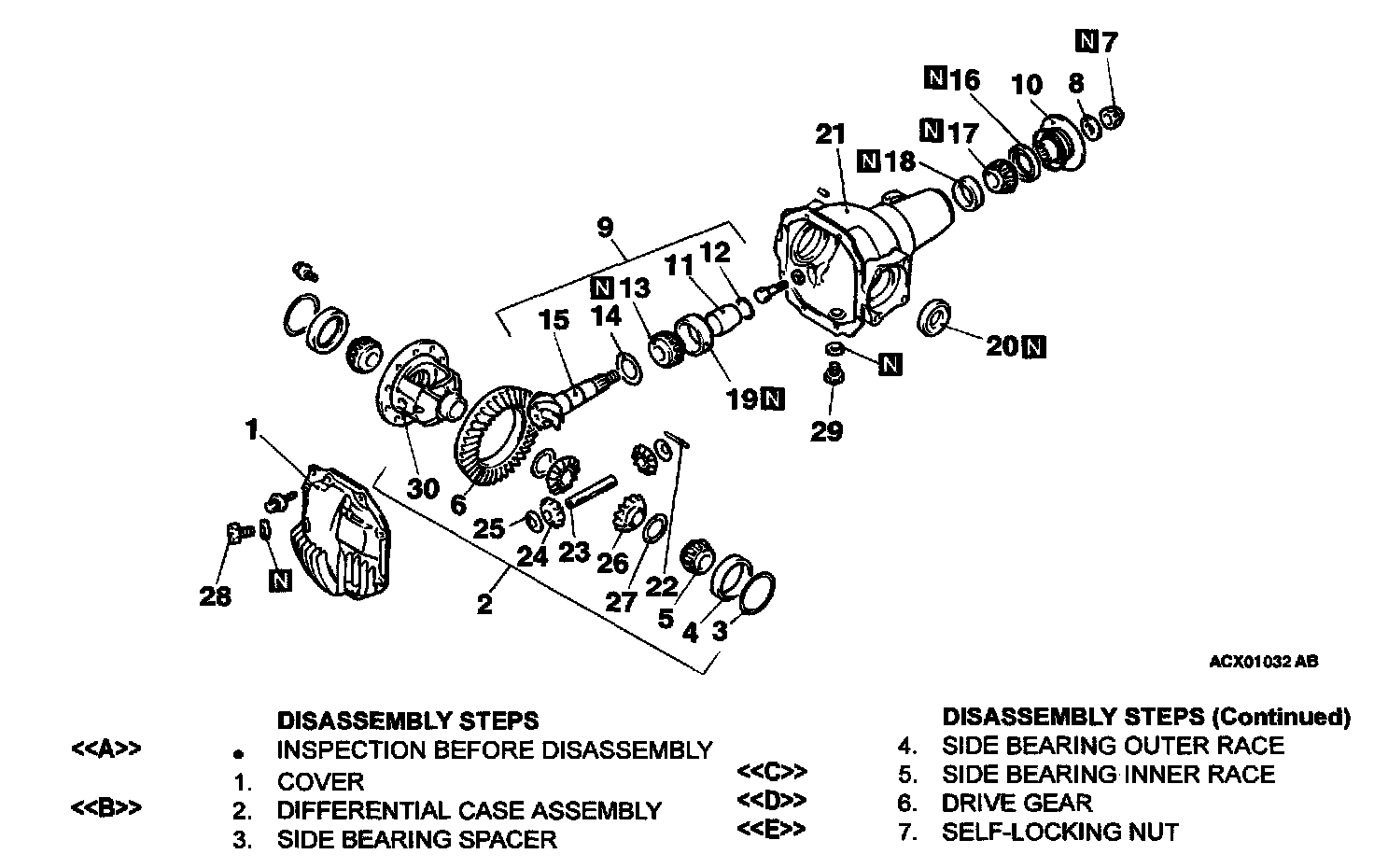

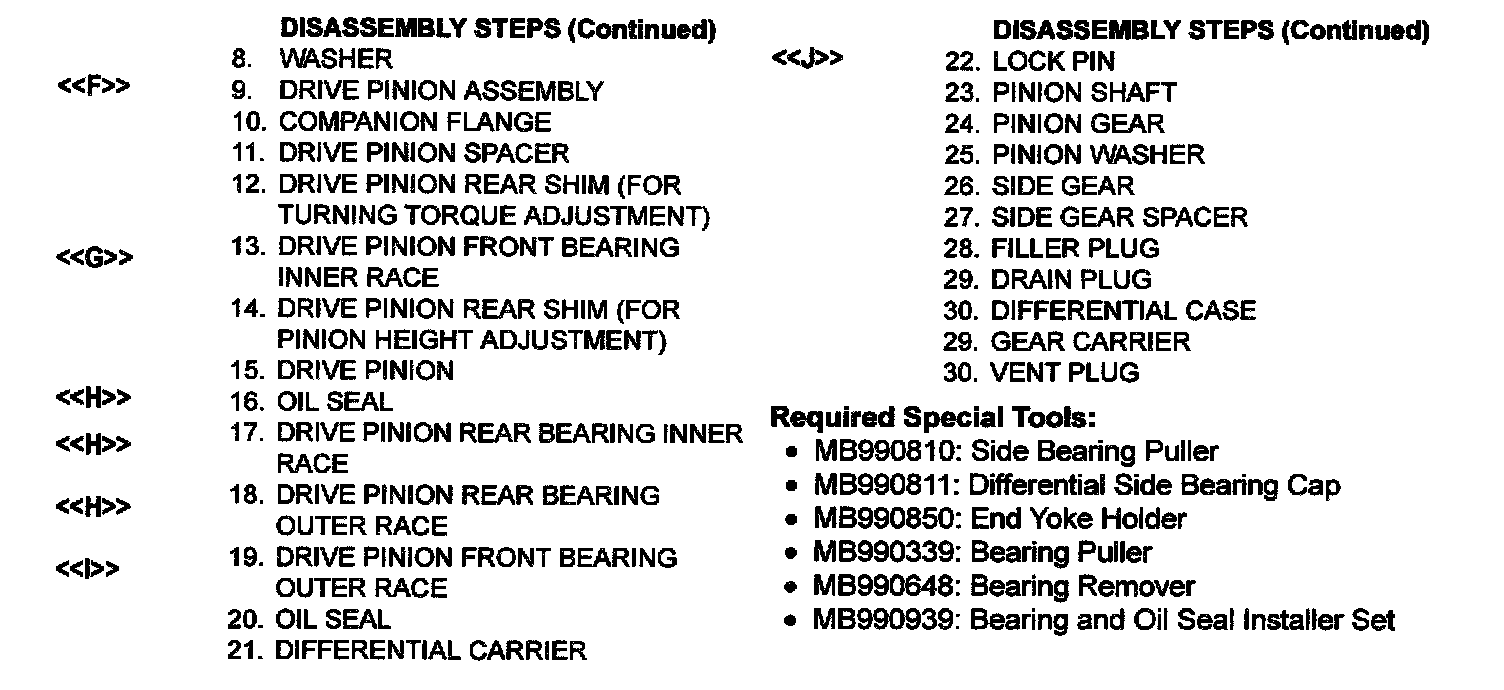

DISASSEMBLY





Part 1 of 2





Part 2 of 2

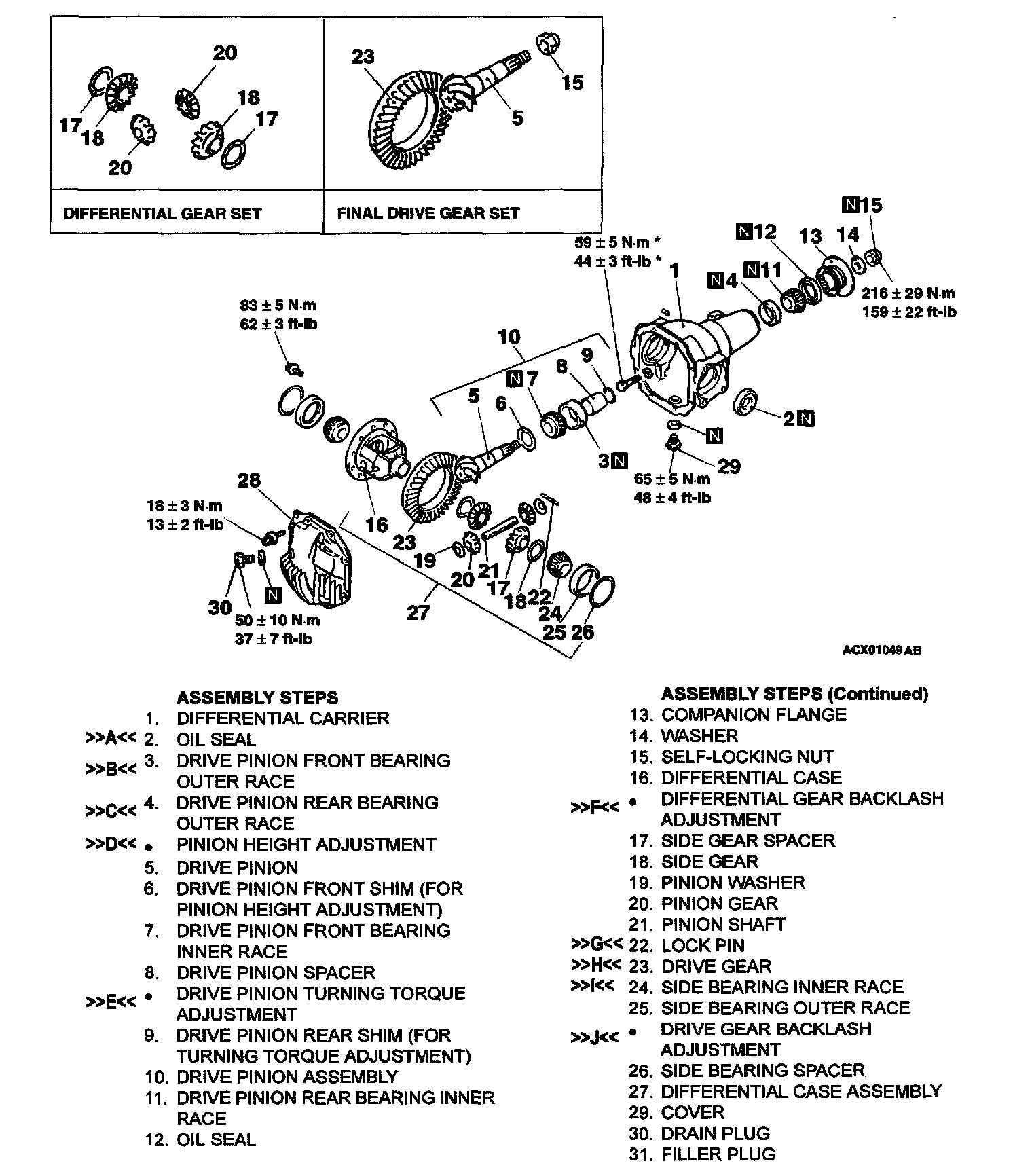

REASSEMBLY





Part 1 of 2





Part 2 of 2
