System Diagram

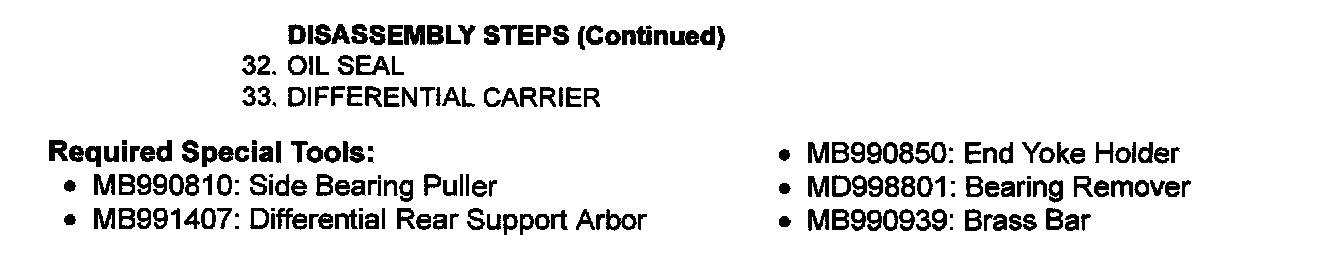

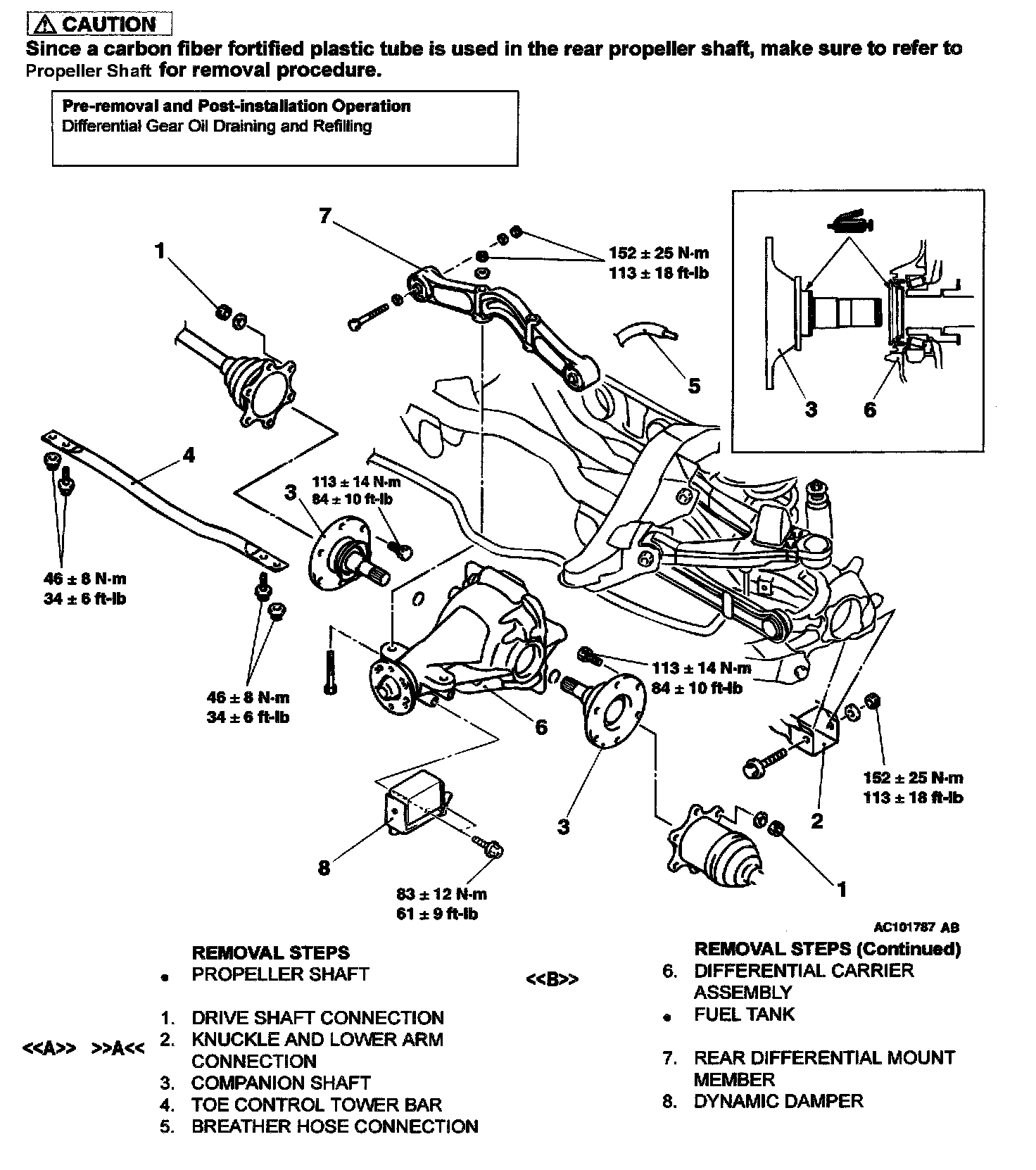

DIFFERENTIAL CARRIER ASSEMBLY REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS





Replacement

Overhaul

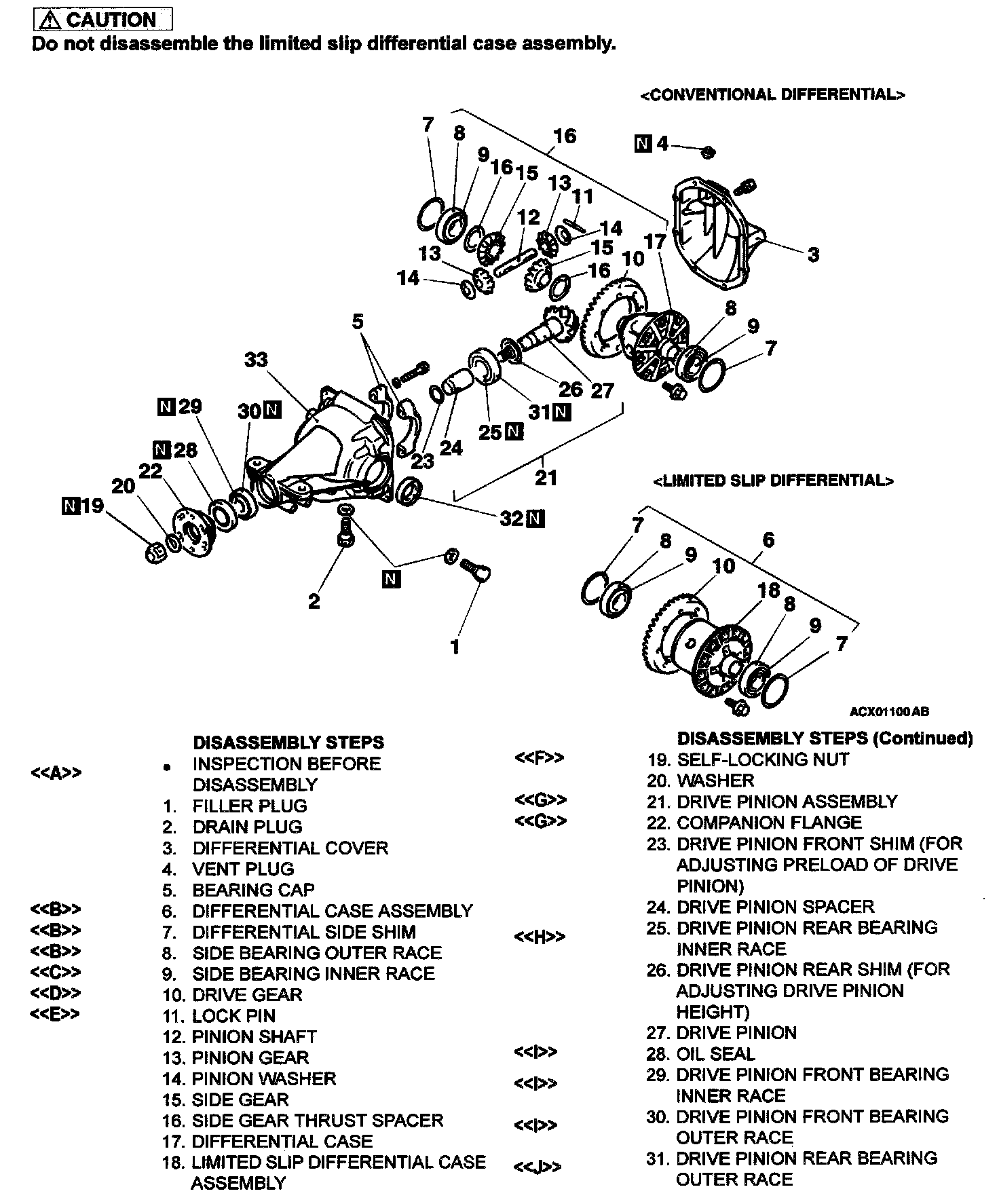

Disassembly





Part 1 of 2





Part 2 of 2

Reassembly





Part 1 of 2





Part 2 of 2
