Rear Disc Brake

REAR DISC BRAKE ASSEMBLY REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS

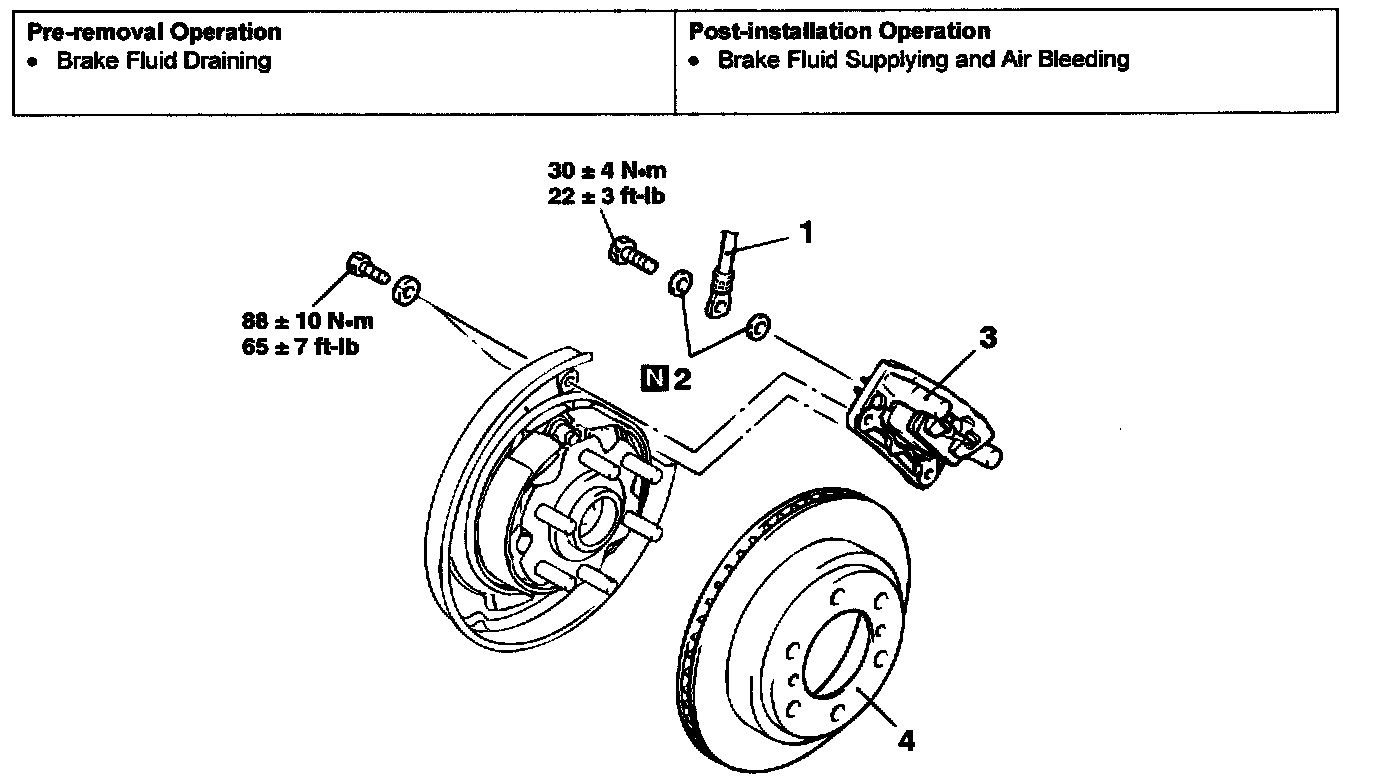

Replacement





Part 1 of 2

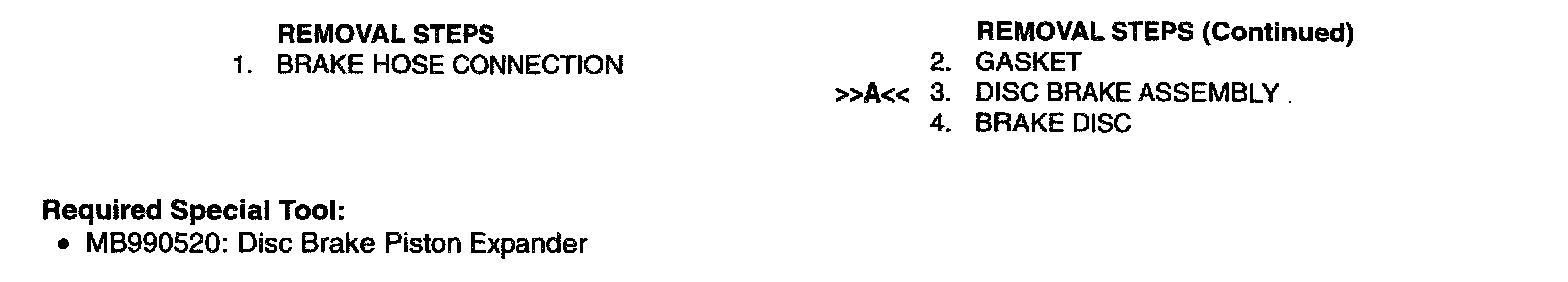

Part 2 of 2

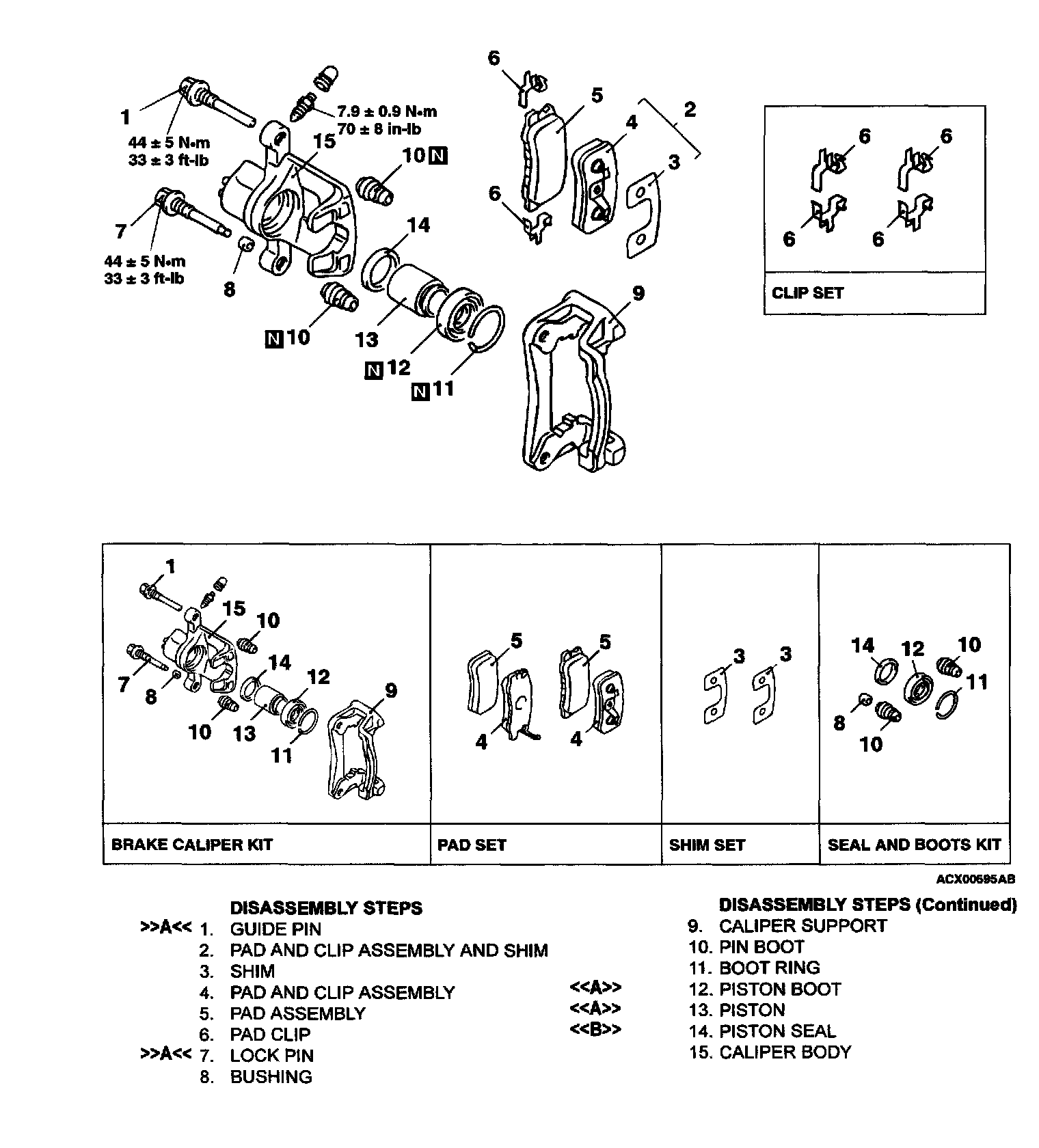

Overhaul
