Home >> Mitsubishi >> 2002 >> Montero XLS 4WD V6-3.5L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Steering Gear

Steering Gear

POWER STEERING GEAR BOX ASSEMBLY REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS

�bML:

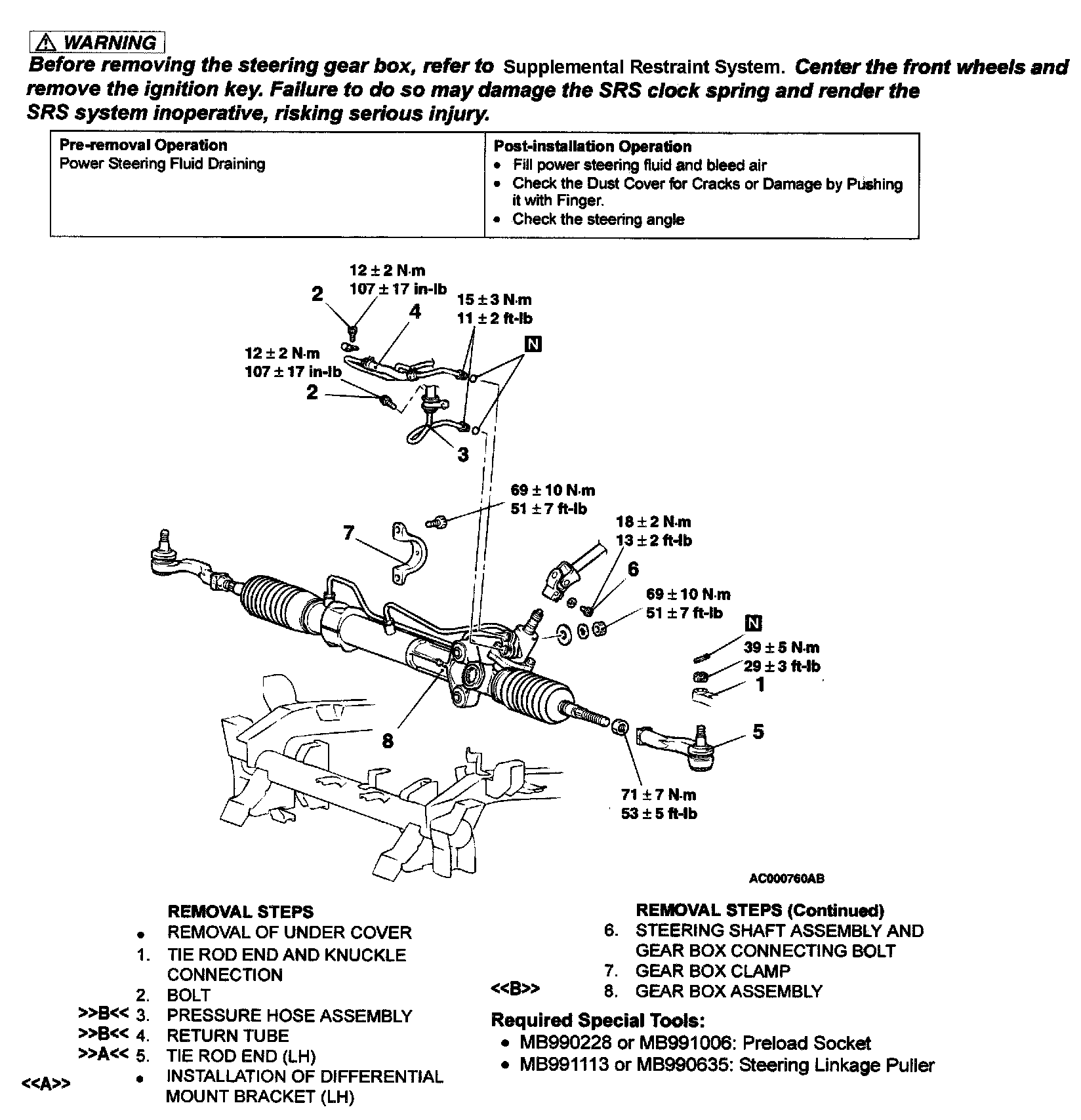

Replacement

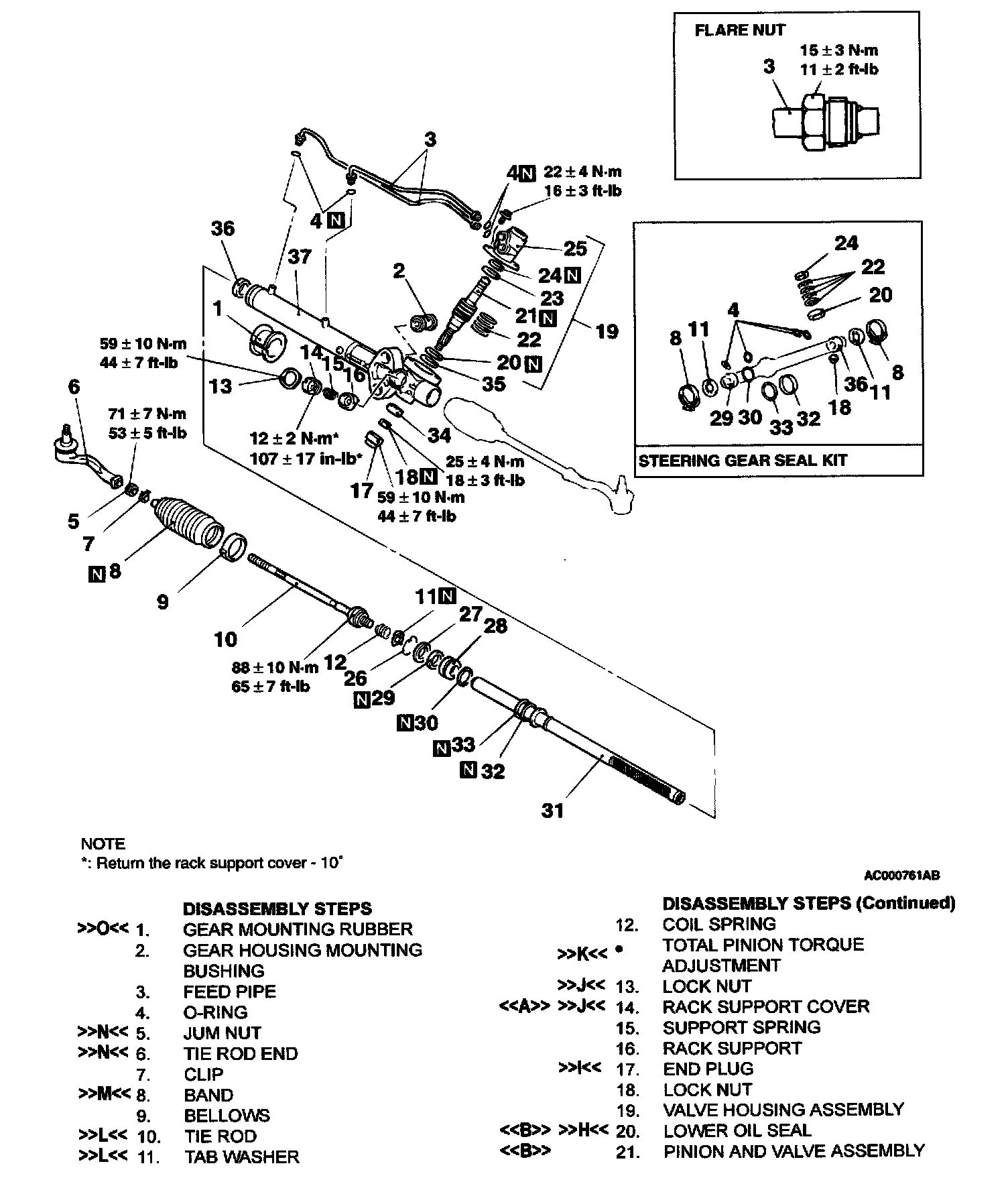

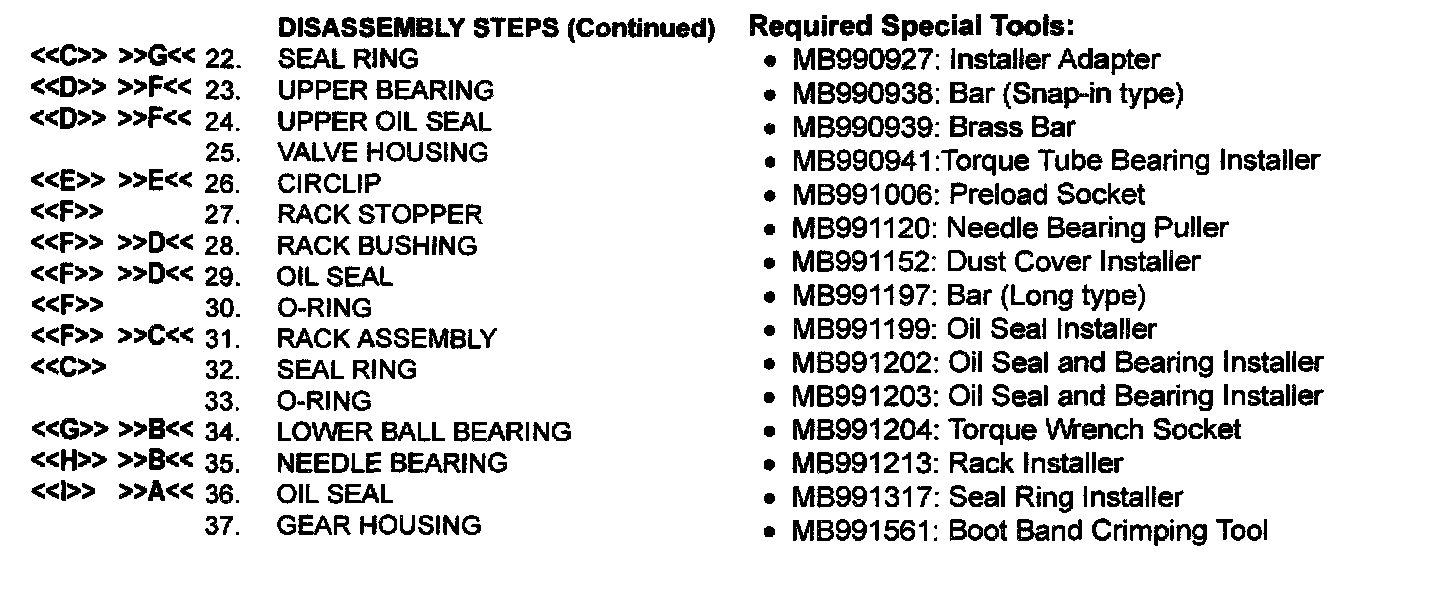

Overhaul





Part 1 of 2





Part 2 of 2
