Heater Core Temperature Sensor / Switch: Service and Repair

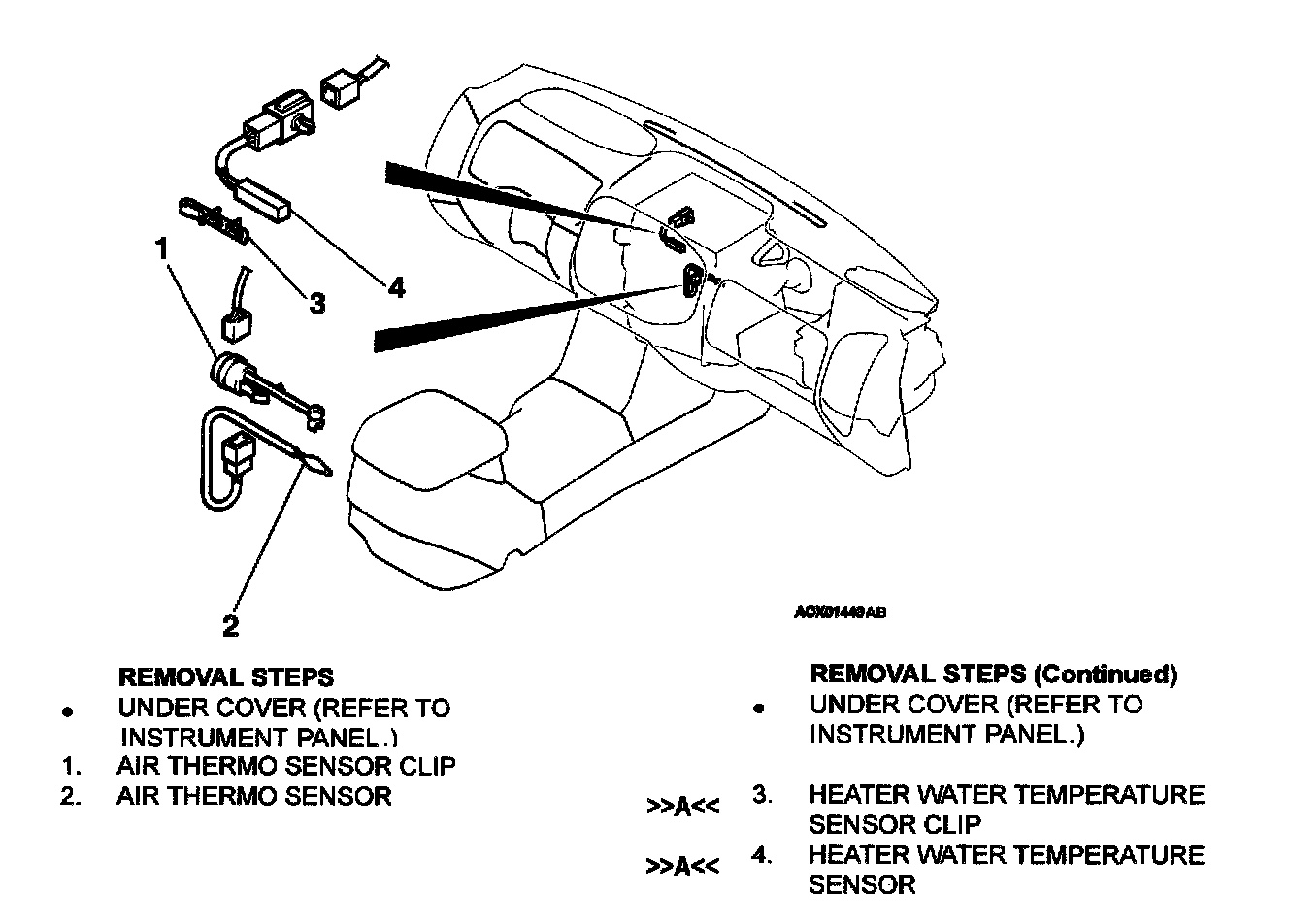

REMOVAL AND INSTALLATION






INSTALLATION SERVICE POINTS

>>A<< HEATER WATER TEMPERATURE SENSOR/HEATER WATER TEMPERATURE SENSOR CUP INSTALLATION
Insert the heater water temperature sensor into the mounting hole on the heater unit, and secure the sensor with the clip.
