Emission Control Systems: Service and Repair

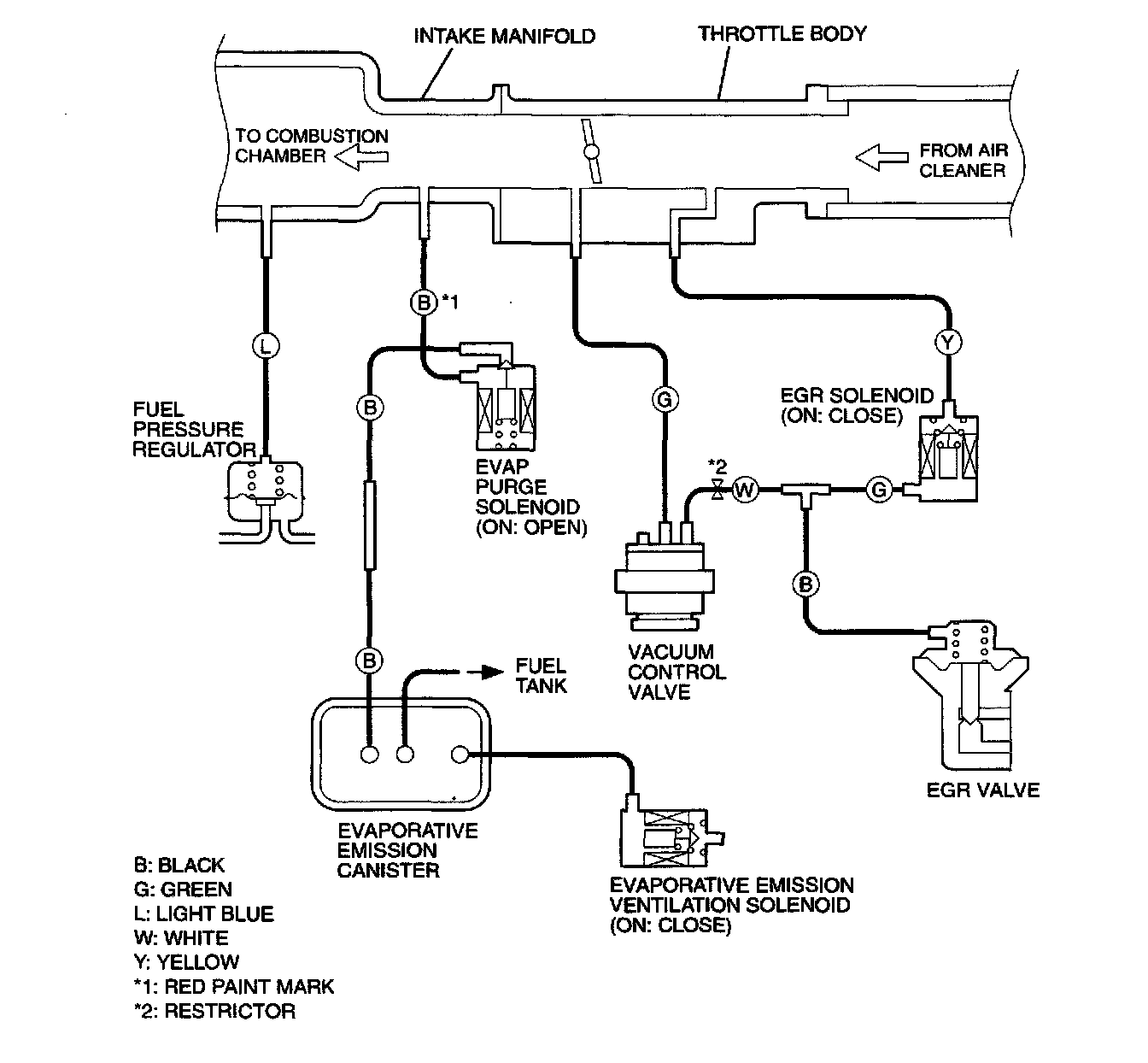

Vacuum Circuit Diagram:

VACUUM HOSE INSTALLATION
1. When connecting the vacuum hoses they should be securely inserted onto the nipples.
2. Connect the hoses correctly, using the VACUUM HOSE ROUTING as a guide.
