Ignition Switch: Testing and Inspection

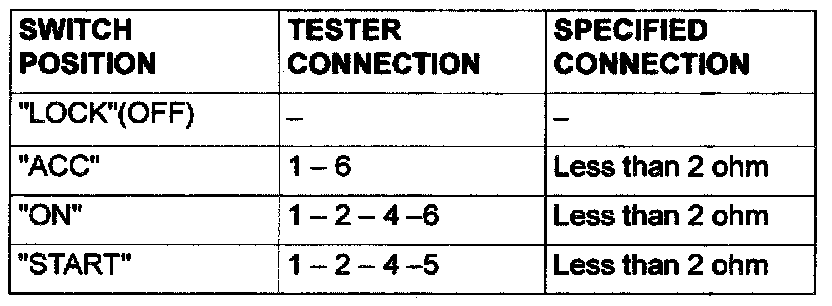

IGNITION SWITCH LESS CONTINUITY CHECK

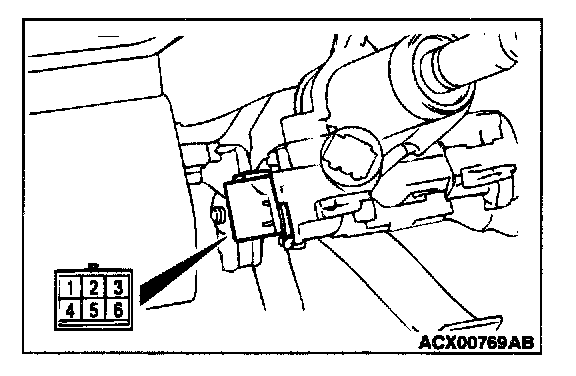

Disconnect ignition switch connector without removing the ignition switch and steering lock cylinder. Then check the continuity.
