Repair and Diagnosis: Application and ID

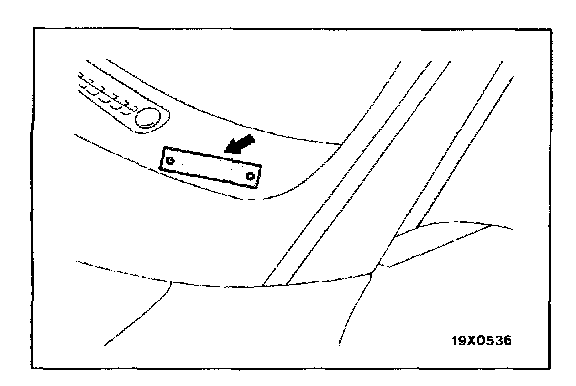

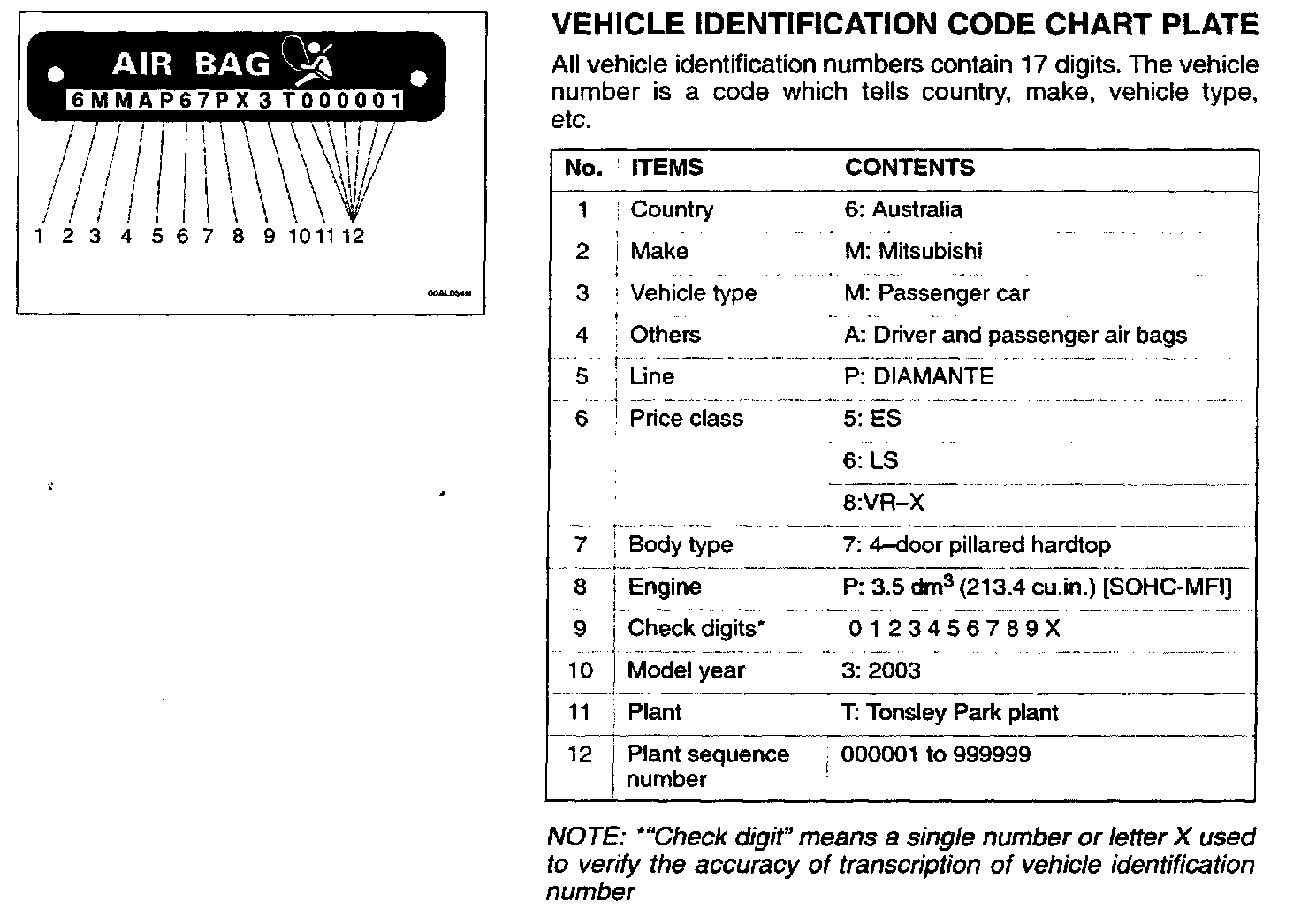

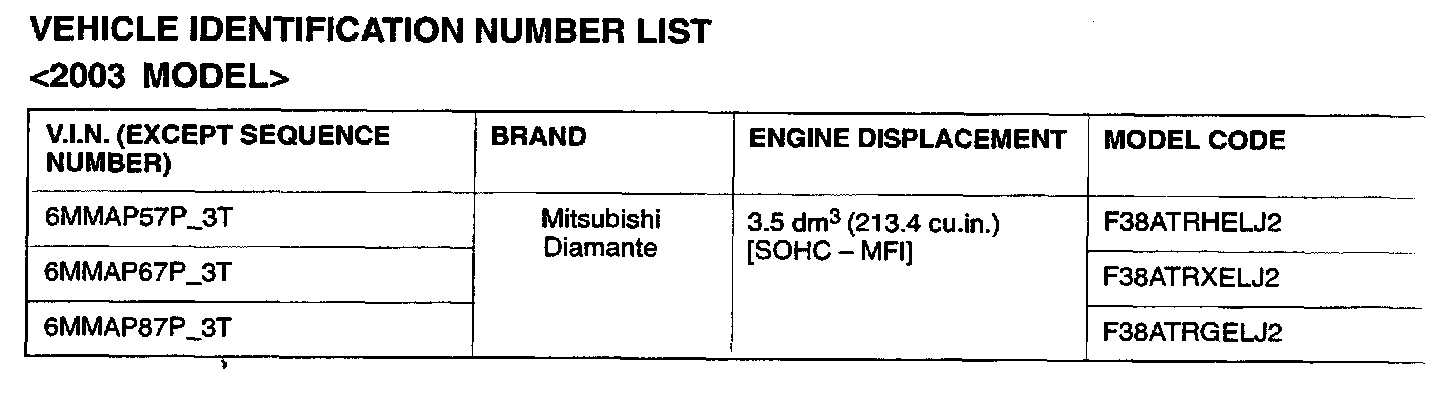

VEHICLE IDENTIFICATION NUMBER LOCATION
The vehicle identification number (V.I.N) is located on a plate attached to the left top side of the instrument panel.

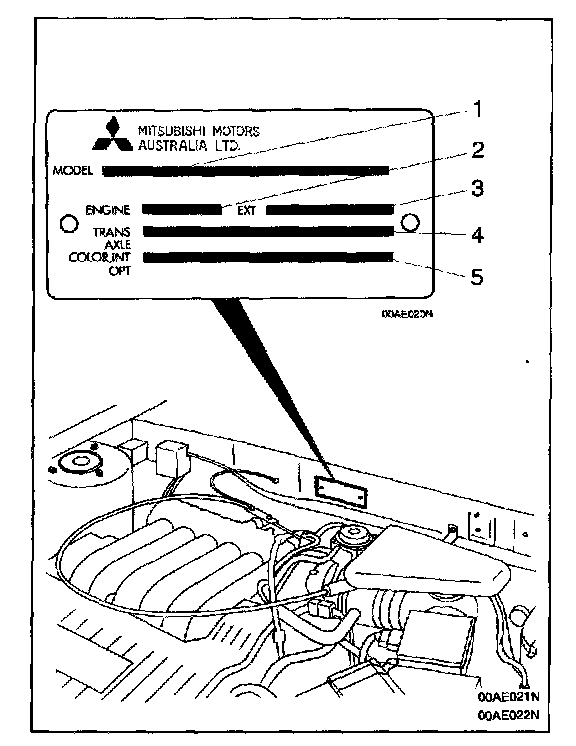

VEHICLE INFORMATION CODE PLATE
Vehicle information code plate is riveted onto the bulkhead in the engine compartment.

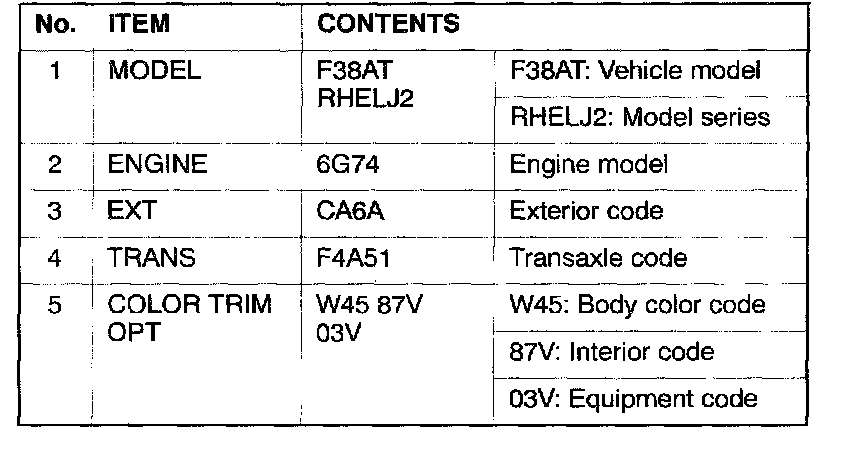

The plate shows model code, engine model, transaxle model, and body color code.

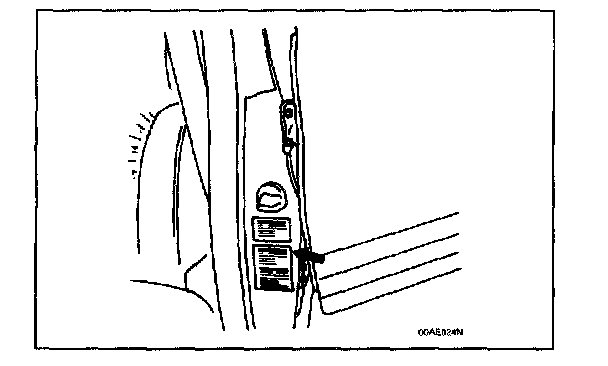

VEHICLE SAFETY CERTIFICATION LABEL
1. The vehicle safety certification label is attached to the face of the left door pillar.
2. This label indicates Gross Vehicle Weight Rating (G.V.W.R.), Gross Axle Weight Rating (G.A.W.R.) front, rear and Vehicle Identification Number (V.I.N.).

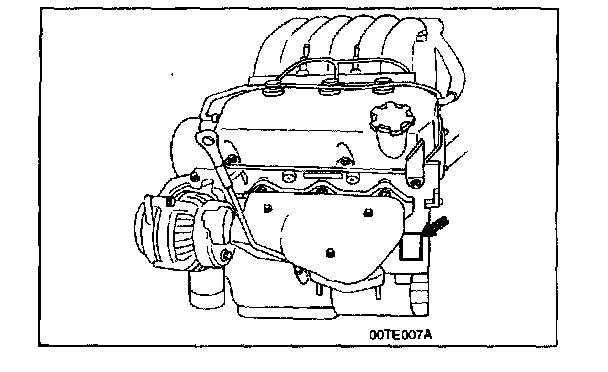

ENGINE MODEL STAMPING

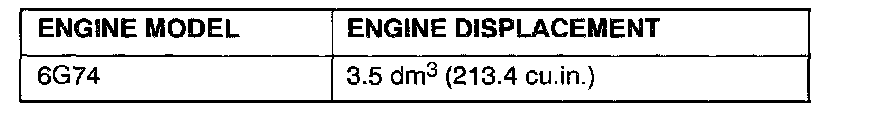

1. The engine model number is stamped at the front side on the top edge of the cylinder block as shown in the table.

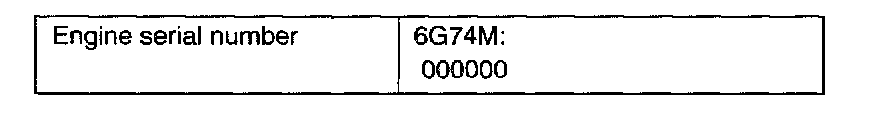

2. The engine serial number is stamped near the engine model number.
