Alignment: Testing and Inspection
STEERING ANGLE CHECK 1.

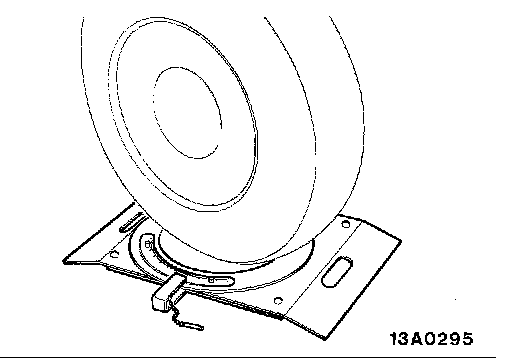

Locate front
wheels on turning radius gauge and measure steering angle.
Standard value:
Inside wheel:
37°00' ± 2° Outside wheel:
30°00' 2.
When the angle is not within the standard value, the toe is probably incorrect. Adjust toe and recheck steering angle.
